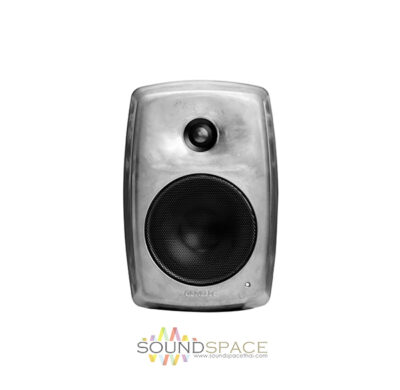

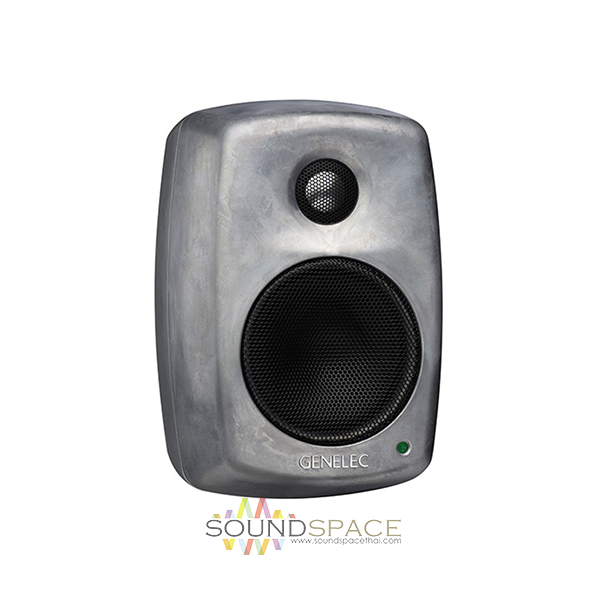

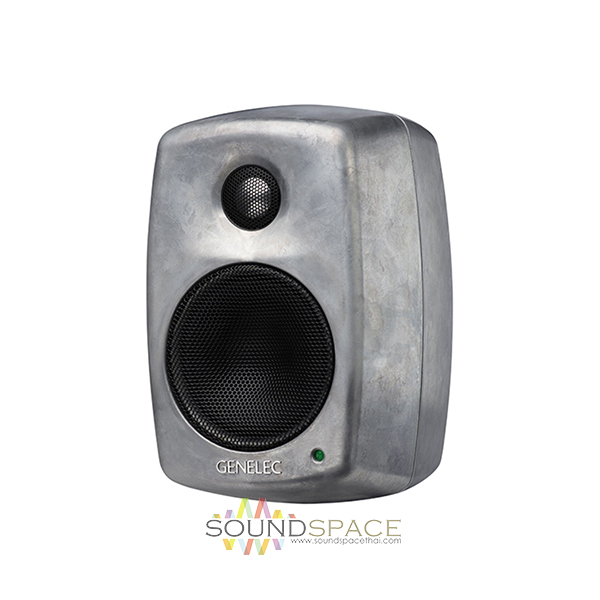

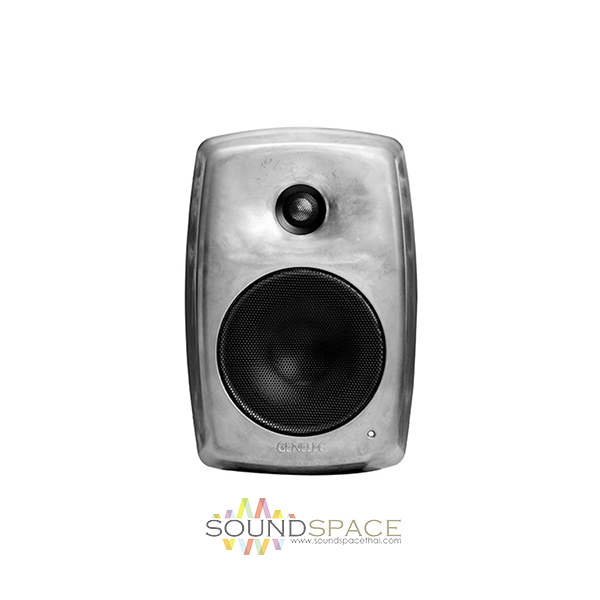

ลำโพงวูฟเฟอร์สตูดิโอมอนิเตอร์ Powered Smart IP GENELEC 4430 ARW สีอลูมิเนียม, ขนาดดอกลำโพง 4.1″ Woofer, 3/4″ Metal-Dome Tweeter, 100W Class-D Amplification, ใช้การเชื่อมต่อผ่านเครือข่าย IP (Audio over IP – AoIP) รองรับ PoE+, ซึ่งช่วยให้ส่งสัญญาณเสียง, พลังงานและการควบคุมผ่านสาย LAN เพียงเส้นเดียว
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ….
฿66,360.00
ลำโพงวูฟเฟอร์สตูดิโอมอนิเตอร์ Powered Smart IP GENELEC 4430 ARW สีอลูมิเนียม, ขนาดดอกลำโพง 4.1″ Woofer, 3/4″ Metal-Dome Tweeter, 100W Class-D Amplification, ใช้การเชื่อมต่อผ่านเครือข่าย IP (Audio over IP – AoIP) รองรับ PoE+, ซึ่งช่วยให้ส่งสัญญาณเสียง, พลังงานและการควบคุมผ่านสาย LAN เพียงเส้นเดียว
Genelec 4420A (Raw) is a single, bi-amplified Smart IP installation speaker designed to produce precise, intelligible sound quality in even the most challenging acoustic spaces. This compact speaker delivers clarity, reliability, and adaptability and only requires a single CAT cable, making installation and setup easy.
The speaker features 100W of Class-D amplification driving a 4” woofer and 3/4” metal-dome tweeter, producing a frequency response of 62 Hz to 20 kHz with a max SPL of 104 dB.
The 4420A’s Smart IP technology provides scalable power, audio and loudspeaker configuration, supervision, and calibration via a standard CAT cable, offering integrators unrivalled power, flexibility, cost-effectiveness, and simplicity of installation. The 4420A ships with a Euroblock connector and a bracket with mounting hardware.
| Active/Passive |
Active
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Amplifier Power Rating |
100 W RMS
|
| Amplifier Class |
Class-D
|
| Impedance |
Not Specified by Manufacturer
|
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1x 0.7″ / 19 mm Waveguide-Coupled Dome Tweeter
|
| LF Driver |
1x 4.1″ / 105 mm Woofer
|
| Frequency Range |
55 Hz to 42 kHz -6 dB
|
| Frequency Response |
62 Hz to 20 kHz ±2.5 dB
|
| Maximum SPL |
104 dB (Peak)
|
| Coverage Angle |
120° H x 100° V
|
| Crossover |
2.9 kHz (Active)
|
| Input Impedance |
Line: 10 Kilohms
|
| Input Sensitivity |
-60 dB to 0 dB
|
| Protections |
Signal Limiter
|

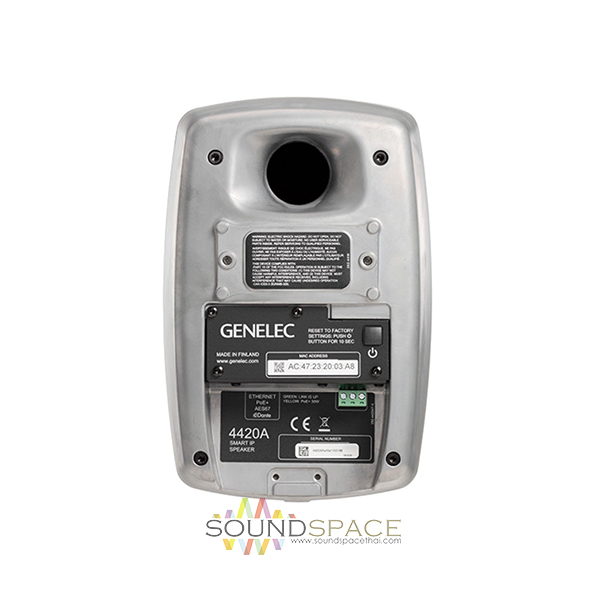

| Inputs/Outputs |
1x Block 3-Pin Line Input
1x RJ45 Line Input (Locking) |
| Wireless |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Smart IP Controller Functionality: Adjust Settings |
| Environmental Resistance |
No
|
| Color |
Raw
|
| Mounting |
1x 3/8″-16 Female Bracket Point (Bottom)
2x Bracket Point (Rear) |
| Construction Material |
Aluminum
|
| Dimensions |
8.9 x 5.9 x 5.6″ / 226 x 151 x 142 mm
|
| Weight |
6.8 lb / 3.1 kg
|
