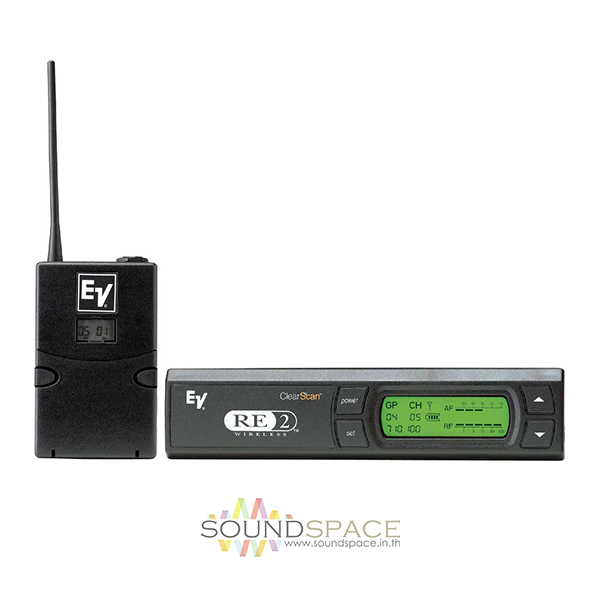

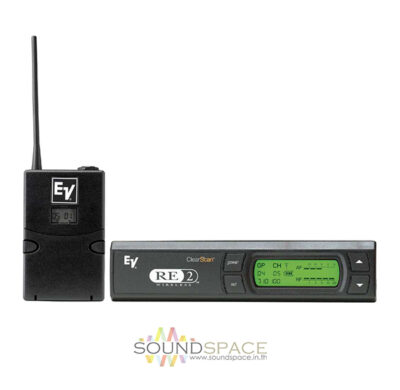

ชุด Body Pack ไร้สาย EV RE2-BP ประกอบด้วย :
เครื่องรับสัญญาณไมค์ RE-2 Receiver UHF Wireless Microphone
เครื่องส่งสัญญาณแบบ Body Pack RE-2 Bodypack BPU-2 Bodypack Transmitter
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿32,900.00 ฿27,900.00
ประกอบด้วย :
เครื่องรับสัญญาณไมค์ RE-2 Receiver UHF Wireless Microphone
เครื่องส่งสัญญาณแบบ Body Pack RE-2 Bodypack BPU-2 Bodypack Transmitter
The new RE-2 Series Wireless Microphone System brings sophisticated professional features to an affordable price point. The RE-2 is a completely programmable frequency agile system with one-touch Auto-ClearScan™, operates over 28MHz (6 TV channels), XLR Mic or Line level output and many other features.
The RE2-BPA is a bodypack system with no mic element. The bodypack transmitter features a cell phone style beltclip (replaceable off the shelf from phone stores), a dual latching battery door, and a TA4 connector that is compatible with a wide range of lapel and headset mic options, or will receive the optional MAC-G3 accessory guitar cord. The RE-2 Bodypack system is the only wireless in the world with software controlled optimization for guitar operation.
| System | |
| Type of System | UHF Frequency Agile Diversity |
| RF Carrier Frequency Range | Band A – 648 – 676MHz (TV Channels 43 – 48) |
| Approx. Working Range | 300′ |
| Overall Frequency Response | 50 – 15kHz +/- 2dB |
| Signal-to-Noise Ratio | > 100dB (A) |
| # Of Channels | 1,112 – programmable in 25kHz steps across 24MHz bandwidth |
| # Of Simultaneous Systems | 16 – for additional consult with EV about custom programmed frequency groups |

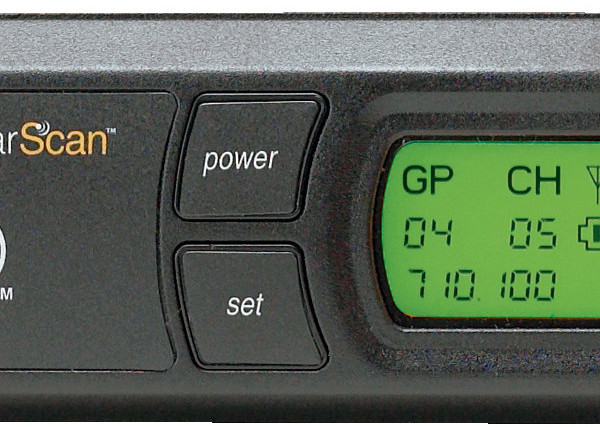

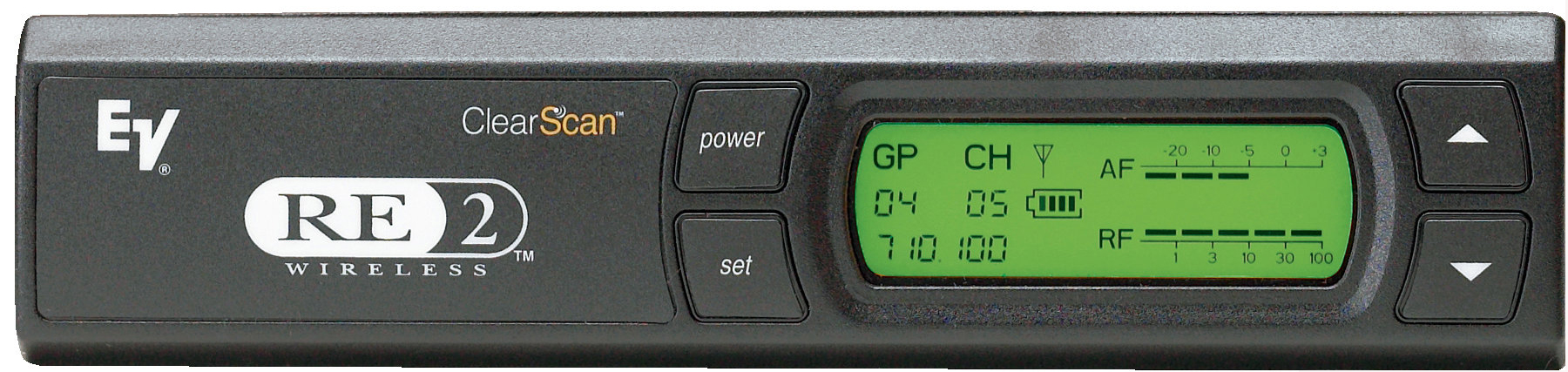

| Receiver | |
| Type of Receiver | Synthesized PLL Agile UHF |
| Type of Outputs | Balanced: 3-pin XLR – mic levelUnbalanced: 1/4″ Phone – adjustable line level |
| Headphone Monitoring | No |
| Power Requirements | 12V AC/DC 300mA |
| Battery Type/Approx. Life | AC powered only |
| Display | Backlit LCD |
| Mounting Options | Rack Mountable |
| Antenna Type | Detachable 1/4 wave |
| Dimensions | 1.72 x 7.50 x 5.90″ (43.69 x 190.50 x 150.00mm) (H x W x D) |
| Weight | not specified by manufacturer |

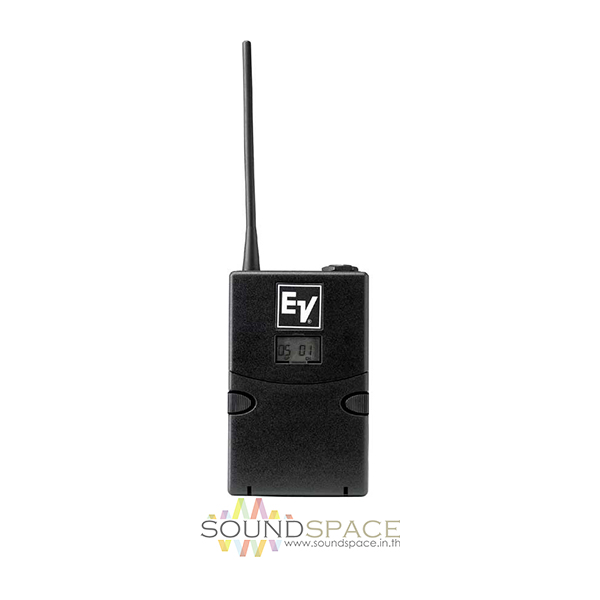

RE-2 Bodypack
| Displays | Group/Channel, Frequency, or Battery Level |
| Connector Type | TA4M |
| Antennas | External 1/4 wave fixed |
| Battery Life | >8 hours with alkaline typical |
| Power Requirement | 9V Battery |
| RF Output | 30 mW typical |
| Wired/Wireless | Wireless |
| Finish | Non-reflecting Black |
| Case Material | High-Impact ABS Plastic |
| Dimensions (HxWxD) | 96.5 x 66 x 23.4 mm (3.8″ x 2.6″ x 0.92″) |
