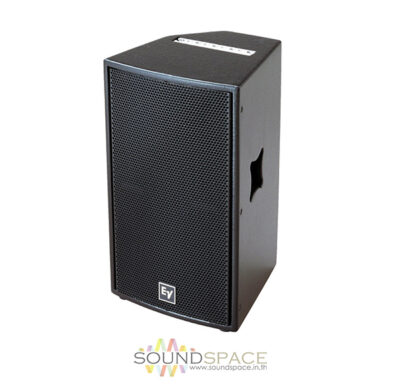

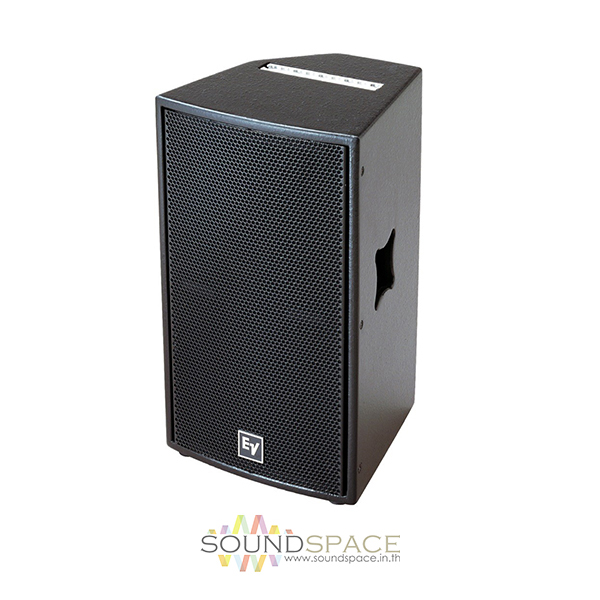

The QRx-115/75 is a two-way, full-range loudspeaker system that incorporates a 15-inch woofer and a 3-inch voice coil compression driver on an asymmetrical 75-degree x 50-degree fully rotatable constant-directivity horn. In factory-delivered position the horn provides a 15-degree up and 35-degree down vertical coverage pattern.
The five-sided cabinet design allows this main PA system cabinet to easily conform to duties as a floor monitor or to be tucked tightly against a ceiling for low-profile applications. The fully rotatable horn means regardless of cabinet position, pattern control is fully user-determined.
The QRx-115/75 is a good solution for small-to-medium size rooms as a main PA, providing moderate levels with good bass response in music or speech reproduction for DJs or live bands. The asymmetrical horn can allow a single box to more adequately direct the high frequencies as needed, as well as streamline multi-cabinet arrays extending horizontal coverage while minimizing overlapping and allowing tighter packs between the cabine
Compact with high output
Ideal for mains (small-to-medium rooms) or monitors

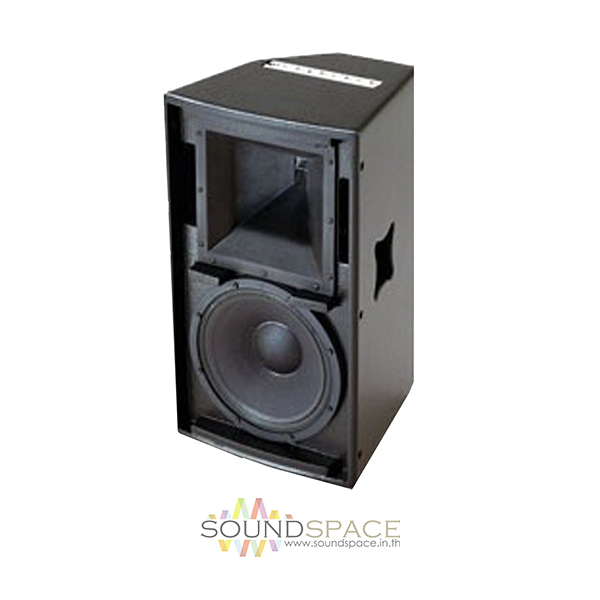

Cast-frame woofer, vented cabinet for extended LF
3-inch DH7 titanium HF compression driver
Rotatable 75º x 50º Constant-directivity horn
Asymmetric 10º down-angled coverage
Externally switchable bi-amped or passive operation
High sensitivity, 130 db maximum SPL (peak)
Power handling: 400 W continuous, 1600 W peak

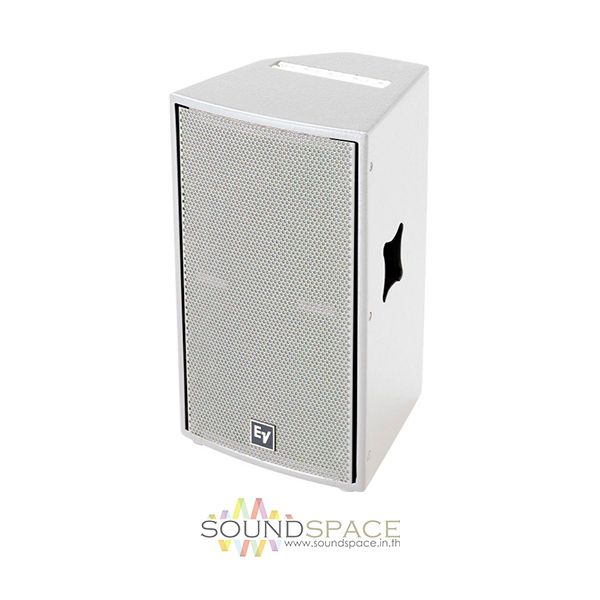

5-sided 13-ply birch enclosure with monitor slant Built-in handles and L-Track rigging Black or White
