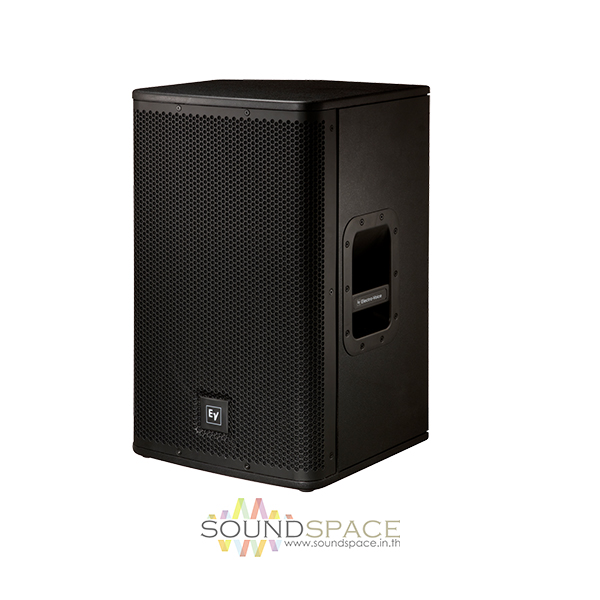

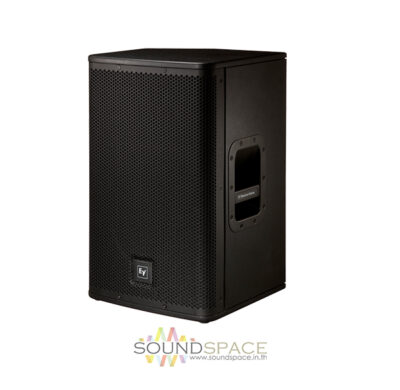

ลำโพงกลางแจ้ง EV ELX112 Passive Speakers 12″
ELX112 เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยาย ตู้ไม้ขนาดดอกลำโพง 12″ แบบ 2 ทาง full-range 250-watt continuous power handling (1000-watt peak)
ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม
฿29,300.00 ฿24,900.00
Description
ลำโพงแบบไม่มีกำลังขยาย EV ELX112 250W 12″
ELX112 เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยาย ตู้ไม้ขนาดดอกลำโพง 12″ แบบ 2 ทาง full-range 250-watt continuous power handling (1000-watt peak)

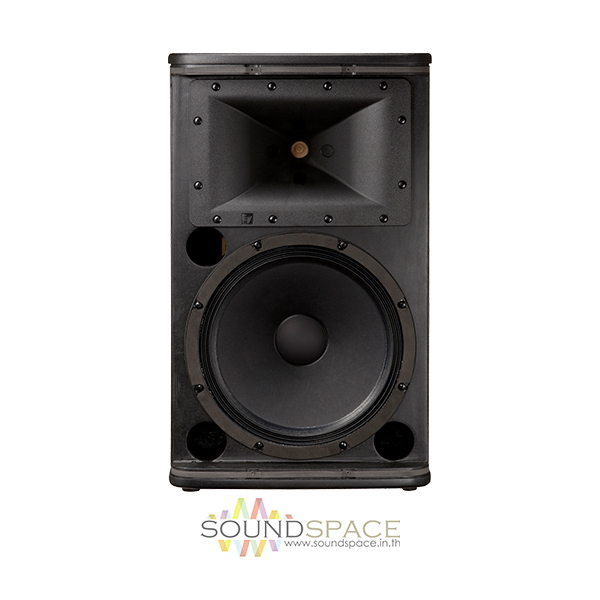

The ELX112 from Electro-Voice is a 2-way passive loudspeaker that offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 12″ woofer and a 1.5″ titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 250W continuous (1000W peak) power handling capability to provide a strong, distortion-free performance.
The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation.
Features:
- Compact power for sound reinforcement and stage monitoring
- EVS-12K woofer
- 5-inch DH-1K titanium HF compression driver
- 55 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 60° Monitor Angle
- 94 dB SPL sensitivity; 132 dB max SPL
- Power handling: 250 W continuous, 1000 W peak
- Braced 15mm plywood enclosure
- Pole mount or stack with Live X Subwoofers
- Black textured finish
Specifications
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94 dB |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Color | Black |
| Speaker Type | Full-range, two-way, wedges |
| Woofer Size | 304.8 mm (12″) |
| Frequency Response (-3 dB) | 82 – 18000 Hz |
| Frequency Response (-10 dB) | 55 – 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 45 Hz |
| Max. SPL/1m (calc) | 132 dB Half Space |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 50 ° |
| System Power Handling (Continuous/Program/Peak) | 250//1000 Watts |
| LF Transducer | (1) EVS-12K, 305mm (12") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 21000 Hz |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 7 Ω |

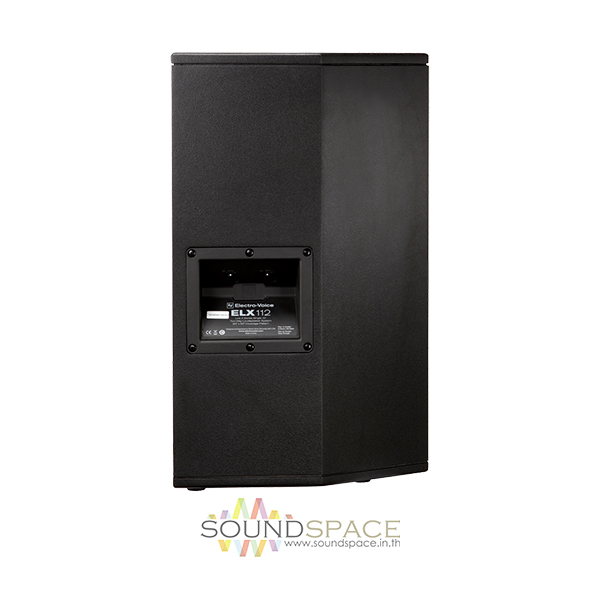

| Connector Type | Parallel Neutrik® NL4 |
| Grill | 18GA Steel with Black Powdercoat |
| Height | 607 mm (23.9″) |
| Width | 362 mm (14.25″) |
| Depth | 340 mm (13.39″) |
| Weight Net | 16 kg (35.27 lbs) |
