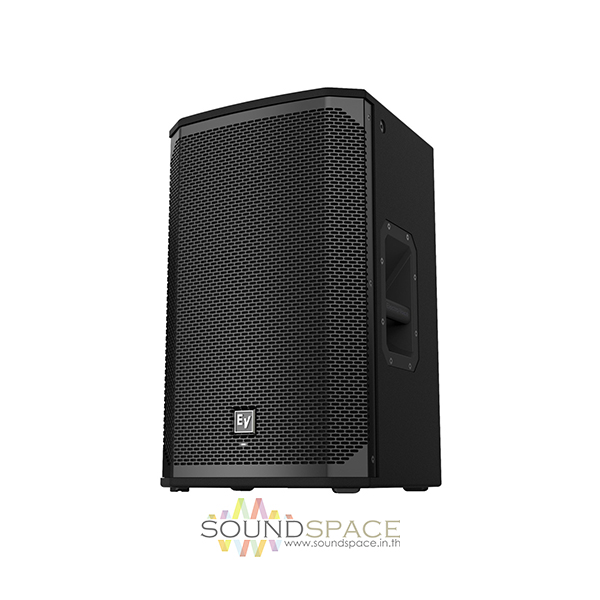

ลำโพงกลางแจ้ง EV EKX12 AP Passive Speakers 12″

Original price was: ฿38,100.00.Current price is: ฿32,300.00.

EV EKX12 AP เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยาย ขนาดดอกลำโพง 12″ แบบ 2 ทาง full-range 350-watt continuous power handling (1400-watt peak)

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

แชร์สินค้านี้: Facebook X LINE

Description

ลำโพงแบบไม่มีกำลังขยาย EV EKX12 AP 350W 12″

EKX12 AP เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยายขนาดดอกลำโพง 12″ แบบ 2 ทาง full-range 350-watt continuous power handling (1400-watt peak)

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12″ and 15″ two-way models and 15″ and 18″ subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX

Features:

  • EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
  • 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB
Maximum SPL 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 350 W/1400 W
Frequency Response (-3 dB) 82 Hz – 18 k Hz Full Space Measurement
Frequency Response (-10 dB) 55 Hz – 20 k Hz Full Space Measurement
Recommended High-Pass Frequency 55 Hz
Coverage (Nominal -6 dB) H 90 °
LF Transducer EVS-12M 300 mm (12 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.6 k Hz
Minimum Impedance 7.5 Ω
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grill 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Height 607 mm (23.9″)
Width 375 mm (14.76″)
Depth 356 mm (14.02″)
Weight Net 17.4 kg (38.36 lbs)
Shipping Weight 21.4 kg (47.18 lbs)

Downloads

ดาวน์โหลด Brochure EV EKX12S AP
