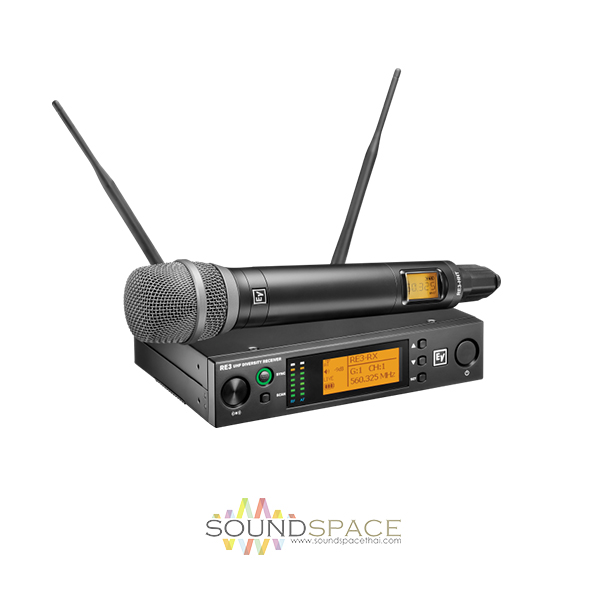

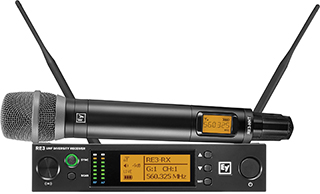

EV RE3-RE520 Wireless System with RE520 Wireless Mic (T: 803 to 806 MHz)
ไมโครโฟนไร้สาย ไมค์ลอย EV RE3-RE520, เป็นไมโครโฟนไร้สายย่าน UHF ตรงกับความถี่ที่ กสทช. อนุญาติให้ใช้ (803 to 806 MHz) ประกอบด้วยเครื่องรับ RE3-RX Diversity Receiver 1 เครื่อง, ไมโครโฟน RE3-HHT Handheld Transmitter พร้อมหัวไมค์รุ่น RE520 Supercardioid Condenser Mic Head 1 ตัว
Electro-Voice RE3-RE520 (Band T: 803 to 806 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an RE520 supercardioid condenser microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The RE520 delivers full and detailed vocal tone, enhanced off-axis rejection, and high gain before feedback. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-RE520 minimizes setup time and maximizes workflow efficiency.
Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.
Features:
For Singers, Speakers & Presenters
Rack-Mountable Diversity Receiver

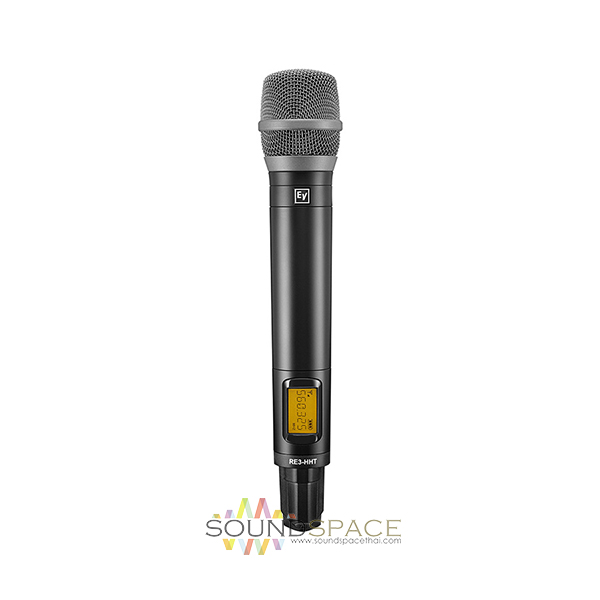

Wireless Handheld Mic Transmitter
RE520 Supercardioid Condenser Mic Head
Full Vocal Tone & Enhanced Isolation
Control Transmitter via Receiver
8-Hour Operating Time via AA Batteries
Informative Backlit LCD Screens
Transmitter Battery Status on Receiver
Selectable 10 or 50mW RF Output Power
Specifications
System
Wireless Transmission
Digital UHF
Number of RF Channels
1440
Diversity
Antenna Diversity
RF Frequency Band
488 to 524 MHz
RF Bandwidth
Up to 36 MHz
Modulation
Wideband FM
Receiver
Form Factor
Rackmount
Mounting Options
Rackmount (with Optional Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage
12 to 15 VDC
Number of Audio Channels
1440
Audio I/O
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4″ TS Male Unbalanced Line Output
