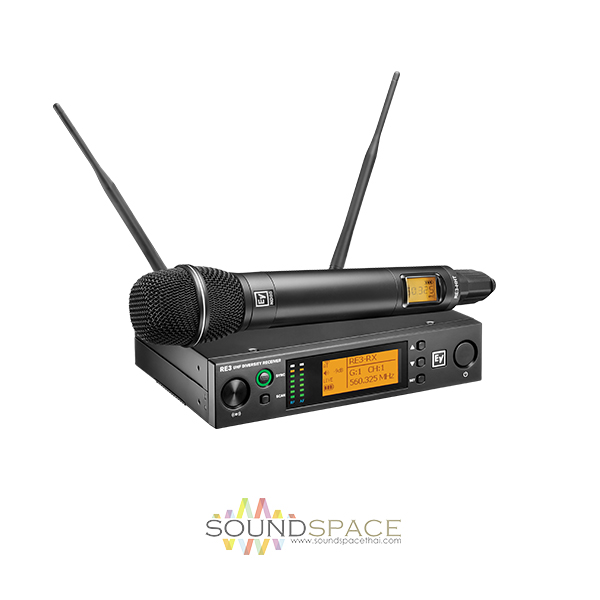

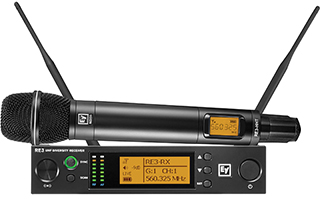

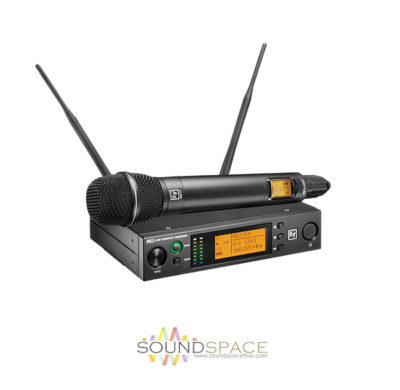

ไมค์ลอย Electro-Voice RE3-ND86 Wireless Microphone

ชุดไมค์ลอย EV RE3-ND86, เป็นไมโครโฟนไร้สายย่าน UHF ตรงกับความถี่ที่ กสทช. อนุญาติให้ใช้ (803 to 806 MHz) ประกอบด้วยเครื่องรับ RE3-RX Diversity Receiver 1 เครื่อง, ไมโครโฟน RE3-HHT พร้อมหัวไมค์รุ่น ND86 Supercardioid Dynamic Mic Head 1 ตัว

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

฿39,500.00 ฿33,500.00

สอบถามและสั่งซื้อสินค้า

Description

EV RE3-ND86 Wireless System with ND86 Wireless Mic (T: 803 to 806 MHz)

ชุดไมค์ลอย EV RE3-ND86, เป็นไมโครโฟนไร้สายย่าน UHF ตรงกับความถี่ที่ กสทช. อนุญาติให้ใช้ (803 to 806 MHz) ประกอบด้วยเครื่องรับ RE3-RX Diversity Receiver 1 เครื่อง, ไมโครโฟน RE3-HHT Handheld Transmitter พร้อมหัวไมค์รุ่น ND86 Supercardioid Dynamic Mic Head 1 ตัว

Electro-Voice RE3-ND86 (Band T: 803 to 806 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an ND86 supercardioid dynamic microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The ND86 delivers detailed vocal tone, enhanced off-axis rejection, and high gain before feedback. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-ND86 minimizes setup time and maximizes workflow efficiency.

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.

Features:

  • For Singers, Speakers & Presenters
  • Rack-Mountable Diversity Receiver
  • Wireless Handheld Mic Transmitter
  • ND86 Supercardioid Dynamic Mic Head
  • Detailed Vocal Tone & Enhanced Isolation
  • Control Transmitter via Receiver
  • 8-Hour Operating Time via AA Batteries
  • Informative Backlit LCD Screens
  • Transmitter Battery Status on Receiver
  • Selectable 10 or 50mW RF Output Power

Specifications

System
Wireless Transmission Digital UHF
Number of RF Channels 1440
Diversity Antenna Diversity
RF Frequency Band  488 to 524 MHz
RF Bandwidth Up to 36 MHz
Modulation Wideband FM
Receiver
Form Factor Rackmount
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage 12 to 15 VDC
Number of Audio Channels 1440
Audio I/O 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4″ TS Male Unbalanced Line Output
Frequency Response 51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity 81 dBm
RF Output Power Up to 50 mW (Max)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC (Included)
Display & Indicators Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing Metal
Dimensions 8.2 x 1.9 x 6.1″ / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Electro-Voice RE3-HHT865L UHF Wireless Transmitter With ND 86 Supercardioid Capsule

Wireless Transmission Analog UHF
RF Bandwidth Up to 36 MHz
Encryption Yes
Modulation Wideband FM

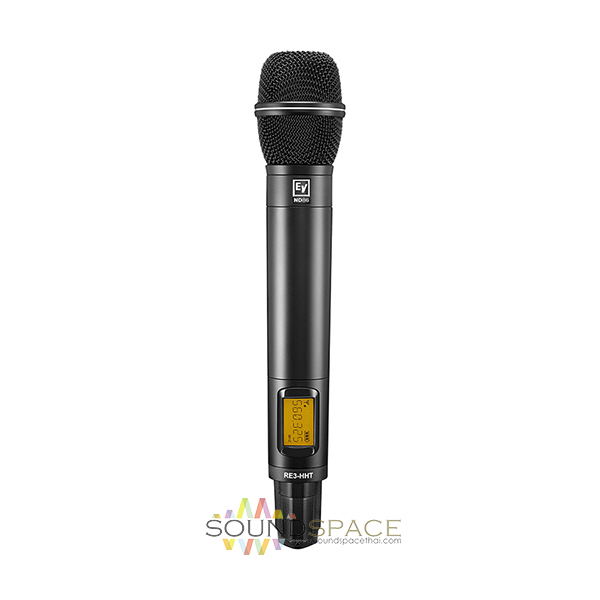

Transmitter
Form Factor Handheld
RF Output Power 10 mW (50 mW Peak, Switchable)
Audio I/O None
Muting Mute Switch
Frequency Response 30 Hz to 17 kHz (Dependent on Mic)
70 Hz to 17 kHz (Dependent on Mic)
Sync Method IR
Power Requirements Battery

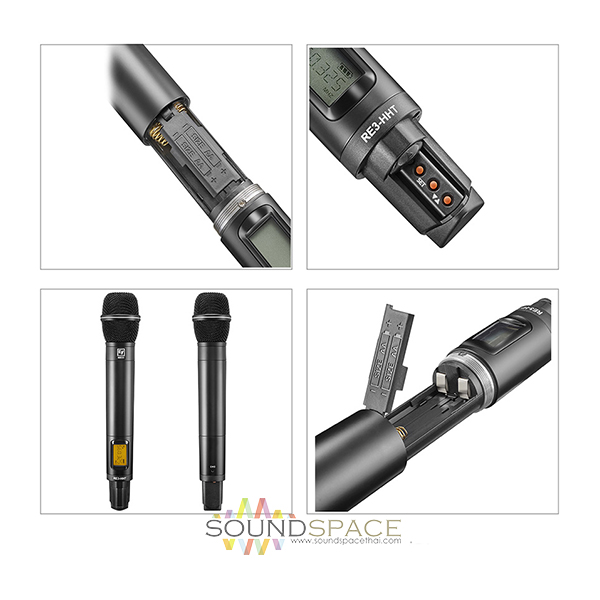

Battery Type 2 x AA (Included, Replaceable)
Display & Indicators LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Metal
Dimensions 1.5 x 7.5″ / 3.8 x 19.1 cm
Weight 12.2 oz / 346.0 g (without Capsule)
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Polar Pattern Supercardioid
Frequency Range 30 Hz to 17 kHz
Maximum SPL 134.5 dB SPL Peak
Impedance 1000 Ohms
Operating Voltage 4 to 8 V
Length 3.6″ / 9.14 cm
Diameter 2.0″ / 50.80 mm
