ดิจิตอลมิกเซอร์ DiGiCo Quantum 112 Digital Mixing Console
เครื่องผสมสัญญาณเสียง DIGICO Quantum 112 แบบดิจิตอล เป็นราคาเฉพาะตัวมิกเซอร์ไม่รวม CARD และอุปกรณ์เสริมอิ่นๆ, 80 Input Channels with full processing, 24 Aux/Sub-Group busses with full processing, 12 x 8 Matrix with full processing, 8 Control Groups, 20 Mustard, 6 Spice Racks
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿1,290,000.00
Description
DiGiCo Quantum 112 Digital Mixing Console (เฉพาะตัวมิกเซอร์)
เครื่องผสมสัญญาณเสียง DIGICO Quantum 112 แบบดิจิตอล เป็นราคาเฉพาะตัวมิกเซอร์ไม่รวม CARD และอุปกรณ์เสริมอิ่นๆ, 80 Input Channels with full processing, 24 Aux/Sub-Group busses with full processing, 12 x 8 Matrix with full processing, 8 Control Groups, 20 Mustard, 6 Spice Racks

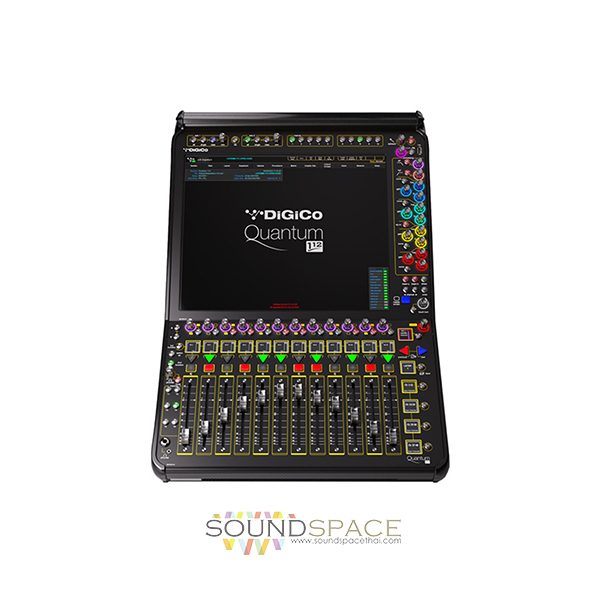

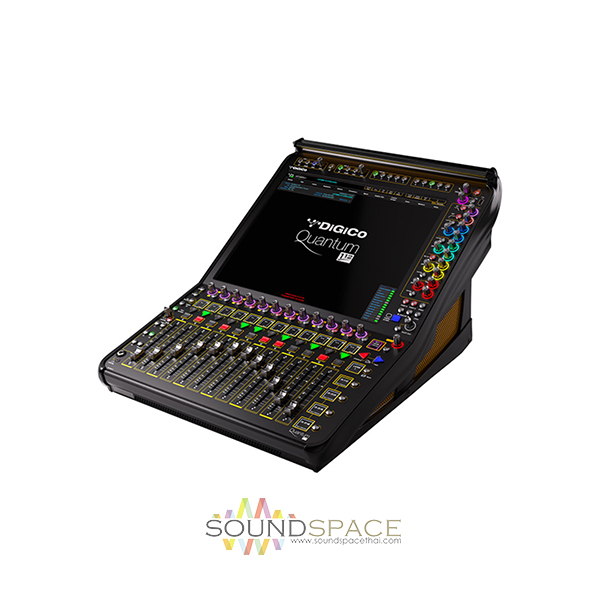

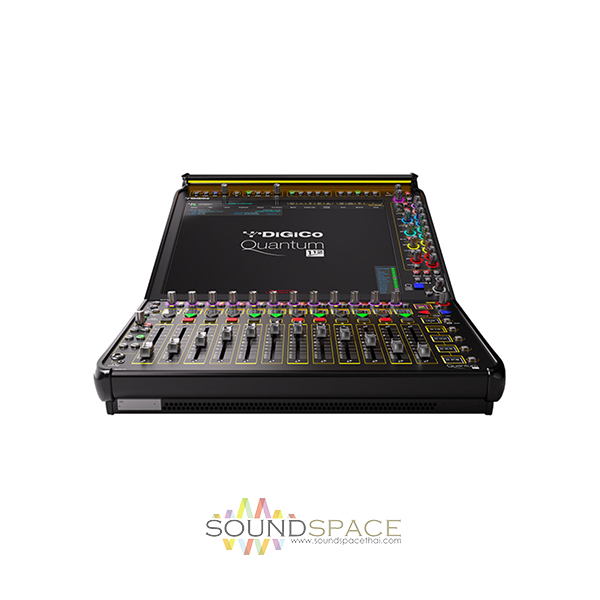

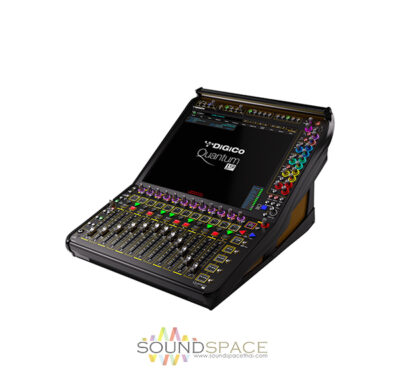

Digico now introduces its smallest and newest addition to the Quantum family, The Quantum112, a single-screen, 12-fader desk that is the brand’s first true flypack mixer. Designed to fit within a Peli Air 1637 case, the console, when packed, weighs 23 kilograms (50 pounds), qualifying it as a standard checked bag option on most flights.
Digico’s latest product offers 80 input channels with 24 aux/subgroup busses, LR/LCR master busses, and a 12×8 matrix, all with full channel processing. Twelve control groups plus two solos are also available. Sporting a 17″, 1000-nit multitouch screen with both a meterbridge and soft quick select buttons,
The Quantum112 is additionally equipped with 18 individual TFT channel displays to provide user feedback and interaction. Beneath the main display are a dozen 100mm touch-sensitive faders. Quantum 112 naturally incorporates Quantum Range features like Mustard Processing channel strips (20), Spice Rack plugin style native FPGA processing options (6), and Nodal Processing (24).

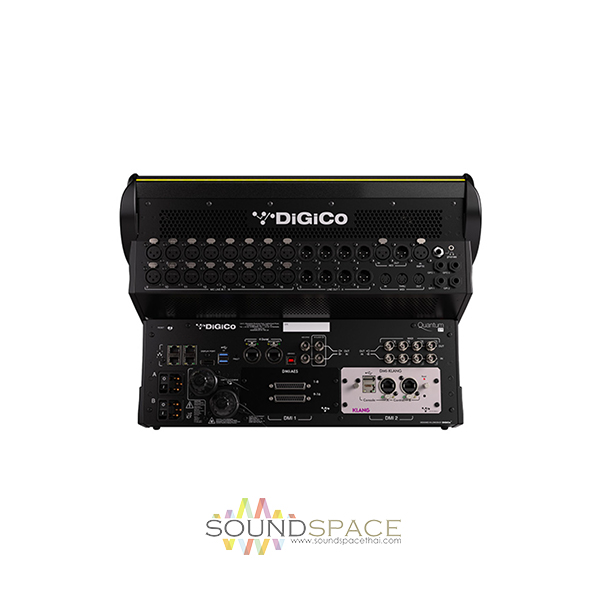

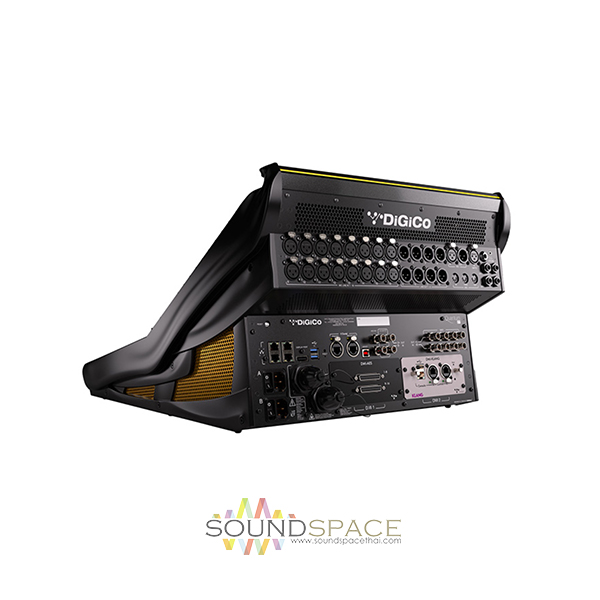

Twelve graphic EQs are further available, as are eight FX Rack slots. Other highlights include 32-bit ADC and DAC conversion, dual DMI slots, and I/O options, including Dante (64 channels in and 64 channels out at both 48kHz and 96kHz), MADI (redundant or single), optional optics, AES and local connections (16 analog inputs and eight outputs).
“Our previously smallest console, the SD11, weighs 24 kilograms [53 pounds] without packaging, and 73 kilograms [161 pounds] when flight-cased, so it wasn’t a proper flypack product. The new Quantum112 is nearly 70 percent lighter”, confirms Digico Head of Research and Development Michael Aitchison.
Features:
- 80 Input Channels with full processing
- 24 Aux/Sub-Group busses with full processing
- 12 x 8 Matrix with full processing
- 8 Control Groups
- 20 Mustard
- 6 Spice Racks
Specifications
| General Specifications | Faders: 12 x 100mm touch-sensitive, motorised faders |
| Screens: 1 x 17” LCD high-brightness, high-resolution touchscreen | |
| TFT Screens: 18 x Full Colour TFT LCD Displays | |
| Redundancy: Internal PSUs x 2 | |
| Input Channels: 80 Input Channels (Mono) | |
| 2 Solo Busses | |
| 12 input x 8 output Full Processing Matrix | |
| 8 Control Groups (CGs) | |
| Graphic Eq 12 x 32-band | |
| Internal FX: 6 | |
| Spice Rack: 6 Internal Spice Rack Slots | |
| 20 Mustard Processing Strips | |
| 24 Nodal Processing 4 Band Parametric EQ / Dynamic EQ | |
| Stadius 32-bit local I/O | |
| Up to 4 MADI interfaces or up to 2 redundant MADI interfaces at 48kHz or 2 interfaces at 96kHz | |
| MultiMode Optocore Interface (Optional) | |
| Sample Rate: 48kHz or 96kHz | |
| GPI: 2 Jack (2 inputs) | |
| GPO: 2 GPO Jack (2 outputs) | |
| 2 x DMI Slots (up to 64 I/O per slot) | |
| Audio Specification | Sample Rate: 48kHz or 96kHz |
| Processing Delay: 0.5ms Typical (Mic in to Line out, no channel Processing) | |
| Internal Processing: Up to 40-bit, Floating Point | |
| A>D & D>A: 32-bit Converter Bit Depth | |
| Frequency Response: +/- 0.2dB (20Hz – 20kHz) | |
| THD+N (Mic In to AES Out): <0.002% @ 1kHz, 0dB gain, -10dBFS out, 22Hz-20kHz | |
| THD+N (AES In to Line Out): <0.002% @ 1kHz,
+16dBu out, 22Hz-20kHz |
|
| Channel Separation/Crosstalk (Mic In to Line Out): >100dB @ 10kHz | |
| Residual Output Noise: <93dBu Typical (20Hz – 20kHz) | |
| Equivalent Input Noise (EIN): <-127.5dBu A-weighted, 22Hz – 20kHz | |
| Maximum Output Level: +22dBu | |
| Maximum Input Level: +22dBu | |
| Processing Channel Specification Input Channel |
80 Input Channels (Mono) |
| Both Mustard and SD processing on all channels | |
| Main & Alternative input | |
| Analogue Gain | |
| Phase Inversion Control | |
| Gain Tracking | |
| Digital Trim (-40dB to +40dB) | |
| Variable Delay (0ms to 1.3s) | |
| DiGiTube | |
| HPF/LPF (-24dB/Oct) | |
| 4 Band Parametric EQ / Dynamic EQ | |
| DYN 1: Compressor, Multiband Compressor, De-esser | |
| DYN 2: Gate, Duck, External Input Compressor | |
| EQ/Dyn Order Control | |
| 2 Insert Points per Channel | |
| Channel Mute & Hard Mute | |
| Channel Direct Outputs | |
| 24 Aux/Sub-Group Busses | Digital Trim (-20dB to +60dB) |
| Variable Delay (0ms to 1.3s) | |
| DiGiTube | |
| Merge Input | |
| Tone Generator | |
| HPF/LPF (-24dB/Oct) | |
| 8 Band EQ: 4 Band Parametric EQ and 4 Band
Parametric or Dynamic EQ |
|
| DYN 1: Compressor, Multiband Compressor, Desser | |
| DYN 2: Gate, Duck, External Input Compressor | |
| EQ/Dyn Order Control | |
| 2 Insert Points per Channel | |
| Channel Mute & Hard Mute
12 input x 8 output Full Processing Matrix 12 Control Groups (CGs) 2 Solo Busses 12 x 32-band GEQs 8 Internal Stereo FX ProcessorsDelays |
|
| Audio Enhancer | |
| Choruses | |
| Pitch Shifters | |
| Reverbs | |
| 6 Internal Spice Rack Slots | |
| 6 band Dynamic Multiband | |
| Compressor/Expander | |
| 6 band Dynamic EQ | |
| Mustard Processing | 20 Mustard Processing Strips |
| Tube | |
| Tube Emulation | |
| HPF/LPF (-24dB/Oct) | |
| 4 Band EQ: 2 Band Parametric EQ and 2 Band
Parametric EQ or All Pass Filters |
|
| DYN 1: Classic RMS/Peak Compressor, Vintage VCA Compressor, Optical Compressor, FET Limited | |
| DYN 2: Gate, Ducker
24 Nodal Processing 4 Band Parametric EQ / Dynamic EQ • DYN 1: Compressor, Multiband Compressor, Desser • DYN 2: Gate, Duck, External Input Compressor Multiband Compressors available on every channel, Buss and Nodal Processor Dynamic EQs available on every channel, Buss and Nodal Processor DiGiTuBes available on every channel & Buss Virtual Soundcheck |
