DBX TR1616 Performance Digital I/O Interface

Name: DBX TR1616 Performance Digital I/O Interface
Price: 89900.00 THB
Availability: InStock

ดิจิตอลมิกเซอร์อินเตอร์เฟส DBX TR1616 16-ch of analog I/O Expandable up to 256 channels @ 48 kHz (128 channels @ 96 kHz) USB port for firmware updates

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿143,500.00~~ ฿89,900.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: dbx

Description

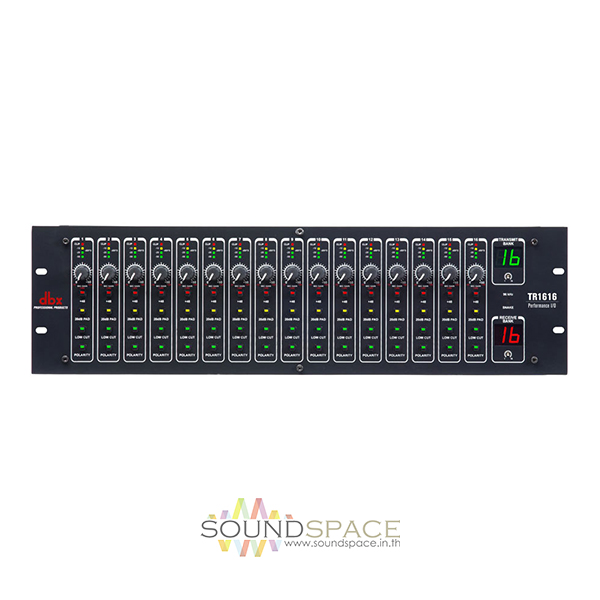

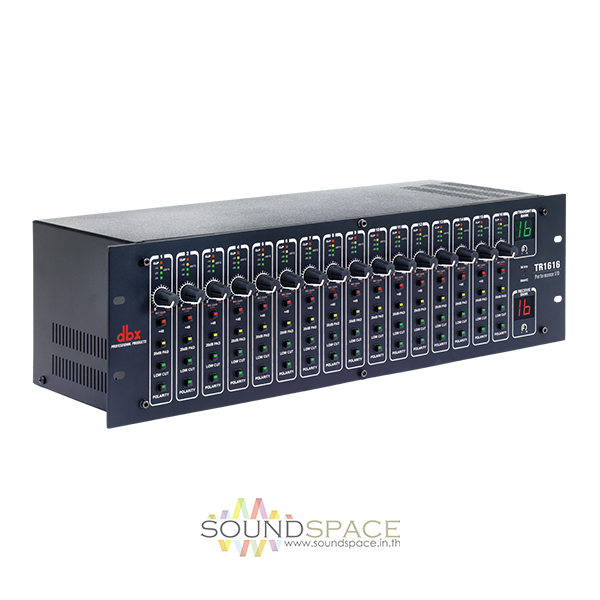

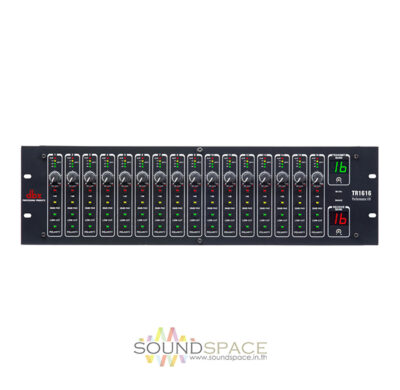

Digital I/O Interface DBX TR1616 16×16 Digital I/O

The TR1616 is a 16 in/16 out analog to BLU link and BLU link to analog audio converter. By providing a modular yet simple solution, the TR1616 is highly expandable and extremely easy to configure. With 16 precision dbx mic preamps and combo style input jacks, the TR1616 accepts line level or mic level input signals. Configurable in banks of 16 channels, the modular design of the TR1616 allows you to create the digital snake or BLU link network that’s right for you.

As your needs change, additional TR1616s can easily be added to the network, providing expansion of up to 256 channels at 48 kHz (or 128 channels at 96 kHz). And with its plug and play functionality, getting into networked digital audio no longer requires long hours of training and programming. Whether you require additional analog inputs or outputs in an existing BLU link compatible system, a digital snake solution for live sound, or a complete personal stage monitoring solution using the dbx PMC16 personal monitor controllers, the TR1616 provides a professional, cost-effective solution for transmitting high-resolution audio over CAT5e.

Features:

16 Channels of Analog I/O
Precision dbx Mic Preamps with Variable Input Gain Control
4-Segment LED Input Level Meter per Channel
+48 Volt Phantom Power per Channel
80 Hz Low Cut Filter per Channel
Polarity Inversion per Channel
20 dB Pad per Channel

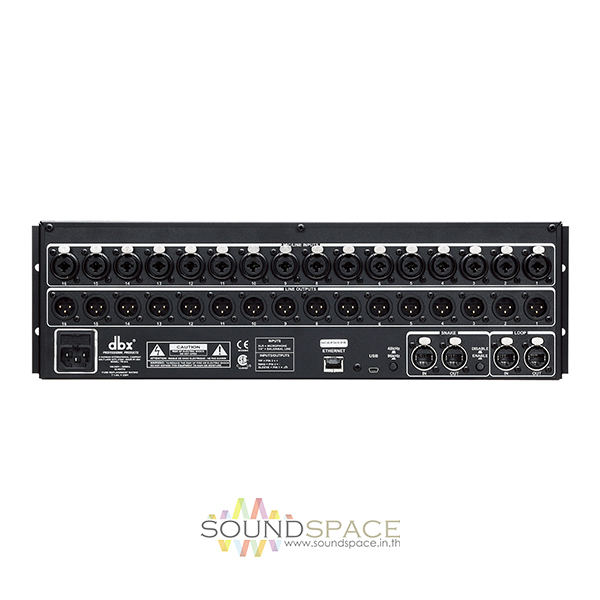

Combo Analog Input Jacks Accept 1/4” or XLR Connections
XLR Analog Output Jacks
BLU Link High Bandwidth, Fault Tolerant Digital Audio Bus
BLU Link Channel Bank Indicators for Receive & Transmit Banks (Dual 7-Segment)
Supports 48 kHz & 96 kHz Sampling Rates
Expandable up to 256 Channels @ 48 kHz (128 Channels @ 96 kHz)
Support for up to 16 TR1616s on a Single BLU Link Ring
USB Port for Firmware Updates

Specifications

Input
Number of Inputs	16
Connectors	Combination Female XLR and 1/4″ Jack
Type	Electronically balanced, RF filtered
Impedance	XLR input: 3 kΩ 1/4″ input: 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level	XLR Input: 18 dBu at minimum gain 1/4″ Input: 33 dBu at minimum gain
Gain	XLR Input: 0 to 60 dB 1/4″ Input: -15 to 45 dB
EIN	-125 dBu, 22 Hz to 22 kHz, 150 Ω source impedance
CMRR	> 40 dB, typically 55 dB, 22 Hz to 22 kHz
Dynamic Range	110 dB unweighted, 113 dB A-weighted
Frequency Response	10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz 10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz
THD + N	Typically 0.002% at 1 kHz, 0 dBu XLR input, gain set to minimum
Crosstalk	Interchannel: < 100 dB, 22 Hz to 22 kHz
Latency	ADC: 37/Fs (0.77 ms at 48 kHz)
Phantom Power	48 VDC, applied to XLR pins 2 and 3 through 6.81 kΩ resistors
Pad	20 dB
Low Cut Filters	2-pole Butterworth filter at 80 Hz
Polarity	Normal or reverse

Outputs
Number of Outputs	16
Connectors	Male XLR
Type	Cross-coupled electronically balanced, RF filtered
Impedance	40 Ω balanced, 20 Ω unbalanced
Maximum Output Level	20 dBu into 2 kΩ load or greater
Dynamic Range	112 dB unweighted, 115 dB A-weighted
Frequency Response	10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz 10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz
THD + N	Typically 0.006% at 1 kHz, 0 dBu output
Crosstalk	Interchannel: < -100 dB, 22 Hz to 22 kHz
Latency	DAC: 29/Fs (0.60 ms at 48 kHz)
Sample Rate	48 or 96 kHz
Word Length	Converter: 24 bits DSP: 32-bit floating point

General
Front Panel Indicators	LED Meter: Clip (-3 dBFS), -10 dBFS, -20 dBFS, -50 dBFS (dBFS = dB Full Scale) 96 kHz: Illuminated for 96 kHz, off for 48 kHz Snake: Illuminated for Snake function
Audio	BLU-link Connectors: 2 x Ethercon lockable RJ-45 Ethernet connectors Maximum Cable Length: 328′ (100 m) on Cat 5e cable between devices Maximum Number of Nodes: 60 Maximum number of channels: 256 at 48 kHz, 128 at 96 kHz Latency: 11/Fs (0.23 ms at 48 kHz) Pass Through Latency: 4/Fs (0.08 ms at 48 kHz)
USB Port	Mini-B connector
Ethernet	Connector: RJ-45 Maximum Cable Length: 328′ (100 m) on Category 5e cable between devices
Power Requirements	100 to 240 VAC, 50/60 Hz, 55 W
Fuse	1.6 A, 250 V Timelag Hi Brk
Rack Unit Space	3 U
Dimensions (H x W x D)	5.25 x 19.00 x 6.25″ (133.40 x 482.60 x 158.80 mm)
Weight	9.6 lb (4.4 kg)
