ลำโพง d&b audiotechnik Y-Series Y10P 2-way passive point source loudspeaker with wide Dispersion ขนาดดอกลำโพง 2 x 8″ driver with neodymium magnet 1.4″ exit compression driver passive crossover network, ทนกำลังขับ 400/1600 W (RMS/peak 10 ms) impedance 8 Ω, Dispersion 110° x 40° Max SPL 136 dB

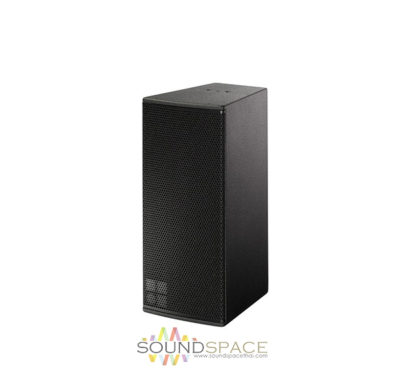

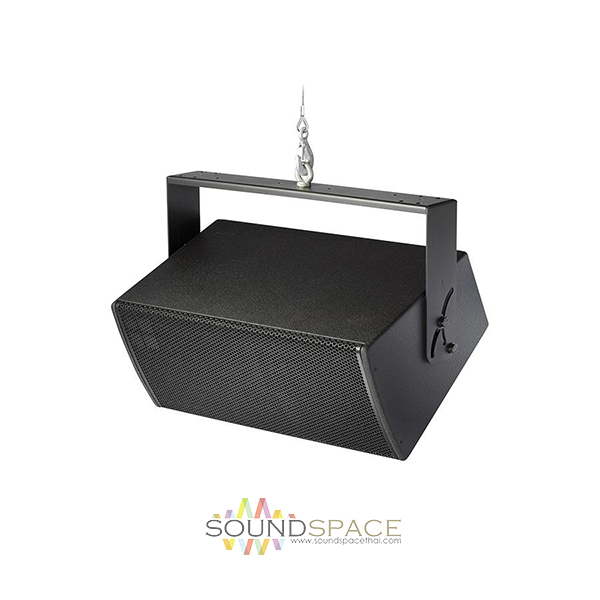

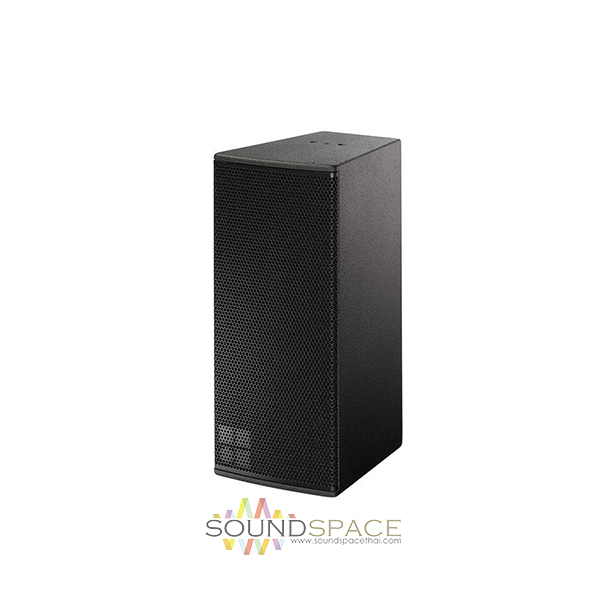

The compact, 2-way passive Y10P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 110° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation.
The Y10P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.

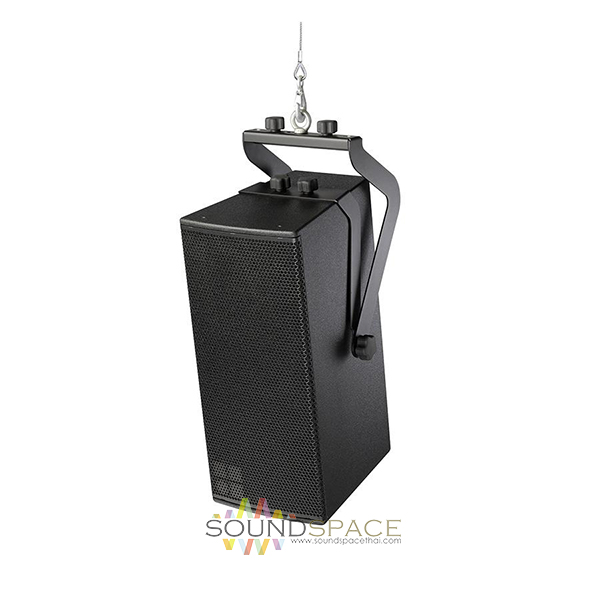

The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The cabinet incorporates a pair of handles whilst M10 threaded inserts are provided for attaching d&b rigging hardware. Additionally, two further M10 sockets accept the 8mm load pin to expand the mounting options.
The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.
The d&b D80 amplifier is recommended to drive the Y10P. The d&b D20, 10D, 30D and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
|Frequency response (–5 dB standard)||59 Hz – 18 kHz|
|Frequency response (–5 dB CUT mode)||118 Hz – 18 kHz|
|Max. sound pressure (1m, free field)1
|Cabinets per amplifier channel||2|
|Configuration||High performance 2-way passive point source loudspeaker|
|Nominal impedance||8 Ω|
|Power handling capacity (RMS/peak 10 ms)||400/1600 W|
|Nominal dispersion angle (h x v)||110° x 40°|
|Components||2 x 8″ driver with neodymium magnet
1.4″ exit compression driver
passive crossover network
|Connections||2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5
|Dimensions (H x W x D)||580 x 257 x 341 mm
22.8 x 10 x 13.4″
