ลำโพงซับเบส d&b audiotechnik xS-Series 18S-SUB Subwoofer 18″

  • Installation specific compact subwoofer
  • 18″ driver with neodymium magnet
  • Power Handling Capacity (RMS/Peak 10 Ms) 400/1600 W
  • ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz
  • Nominal impedance 8 Ω
  • Max SPL 132 dB

ปรึกษา-ออกแบบระบบ Contact Us 086-3114142

สอบถามและสั่งซื้อสินค้า

Description

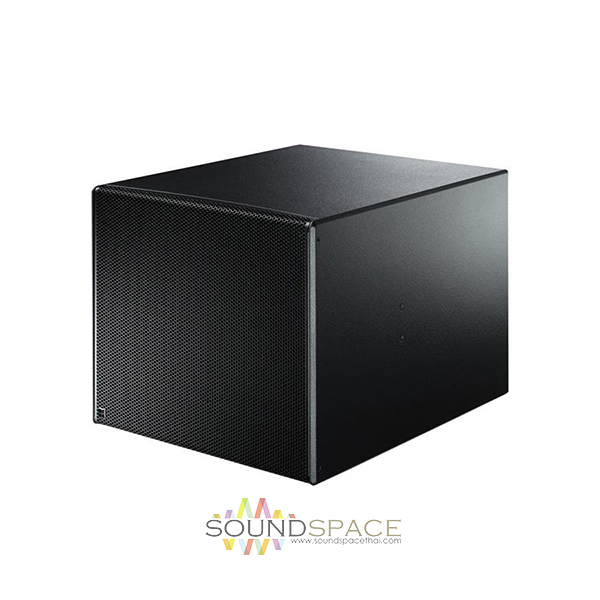

d&b audiotechnik 18S-SUB Installation Compact Subwoofer 18″ 400/1600W

ลำโพงซับเบส d&b audiotechnik สำหรับงานติดตั้ง d&b 18S ในตระกูล xS-Series เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 18″ driver with neodymium magnet, ทนกำลังขับ 400/1600 W (RMS/peak 10 ms) impedance 8 Ω, Max SPL 132 dB ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz

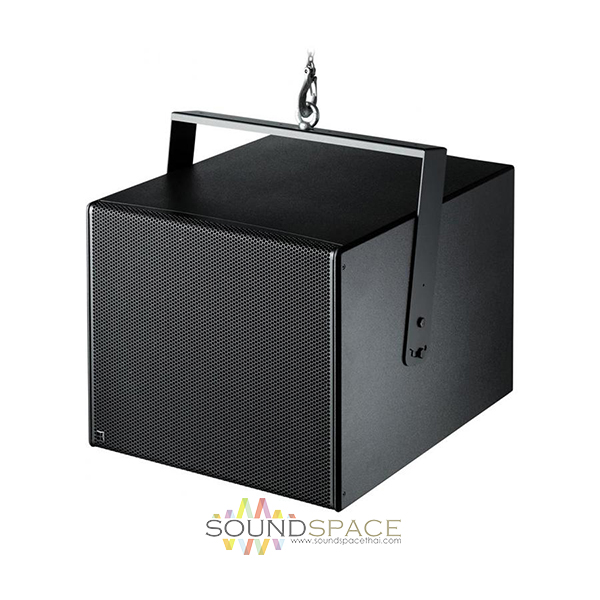

The d&b 18S-SUB is a compact high performance subwoofer for use with the xS-Series and xA-Series loudspeakers. The cabinet houses a long excursion 18″ neodymium driver in a bass-reflex design and it can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

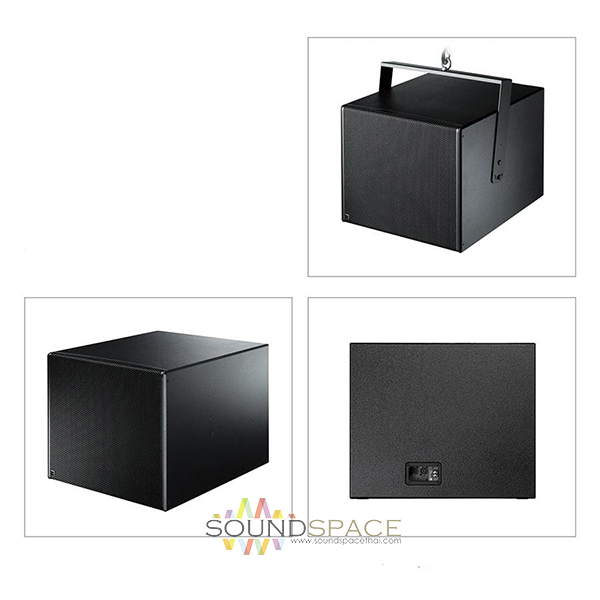

Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

  • Installation specific compact subwoofer
  • 18″ driver with neodymium magnet
  • Power Handling Capacity (RMS/Peak 10 Ms) 400/1600 W
  • ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz
  • Nominal impedance 8 Ω
  • Max SPL 132 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 18S-SUB. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.

Specifications

System data
Frequency response (–5 dB standard) 37 – 140 Hz
Frequency response (-5 dB 100 Hz mode) 37 – 100 Hz
Max. sound pressure (1m, free field)1
with D6/10D
with D20/30D
with D80
129 dB
132 dB
132 dB
Cabinets per amplifier channel 2
Loudspeaker data
Configuration Installation specific compact subwoofer
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 400/1600 W
Components 18″ driver with neodymium magnet
Connections 2 x NL4
screw terminal block
Dimensions, weight
Dimensions (H x W x D) 490 x 580 x 700 mm
19.3 x 22.8 x 27.6″
Weight 32 kg
71 lb
  • 1 SPL max peak test signal: pink noise with crest factor 4

Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
