ลำโพง d&b audiotechnik V12 V-Series Line Array Loudspeaker 2×10″

  • High performance 3-way passive line array loudspeaker
  • 2 x 10″ driver / 1 x 8″ driver 2 x 1.4″ exit compression driver
  • Passive Crossover Network
  • Power Handling (RMS/peak 10 ms) 500/2000 W
  • dispersion angle (horizontal) 120°
  • impedance 8 Ω, Max SPL 142 dB

ปรึกษา-ออกแบบระบบ Contact Us 086-3114142

สอบถามและสั่งซื้อสินค้า

Description

d&b audiotechnik V12 3-Way Line Array Loudspeaker 2×10″ 500W

ลำโพงแบบแขวนไลน์อาเรย์ d&b audiotechnik V12 3-Way Line Array Loudspeaker ขนาดดอกลำโพง 2 x 10″ driver / 1 x 8″ driver 2 x 1.4″ exit compression driver passive crossover network, ทนกำลังขับ 500/2000 W (RMS/peak 10 ms) impedance 8 Ω, Dispersion 80° Max SPL 142 dB

The d&b audiotechnik V12 is a 3-way passive design housing 2 x 10″ LF drivers, one hornloaded 8″ MF driver and two 1.4″ exit HF compression drivers with 2.5″ voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design.

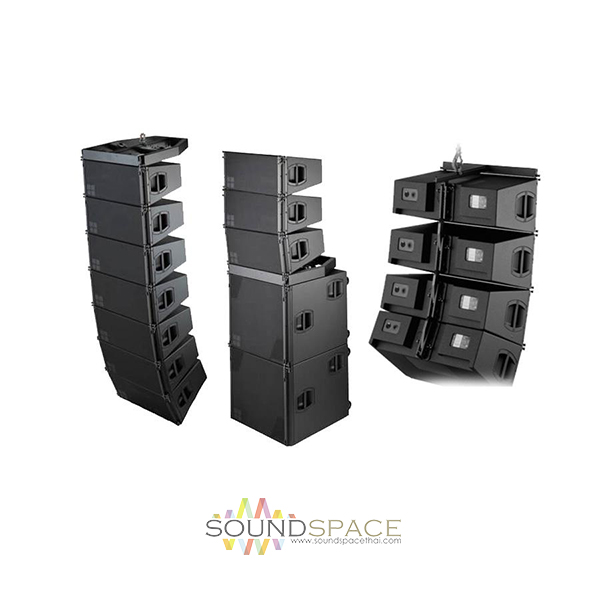

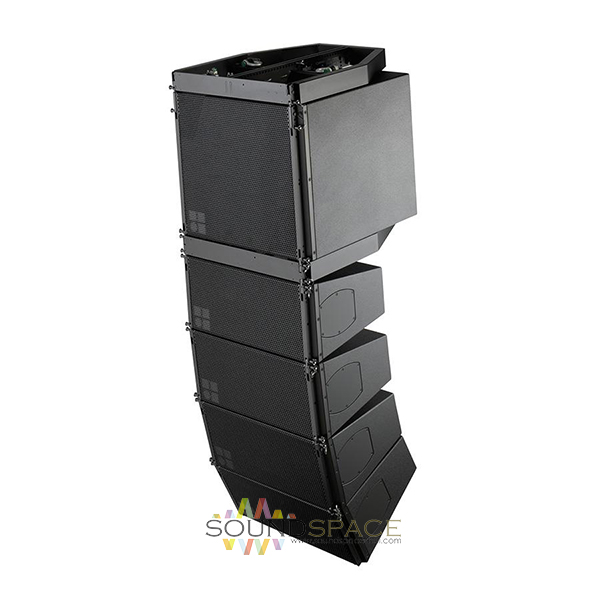

This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V12 loudspeakers or combined with V8s and / or with V-SUBs.

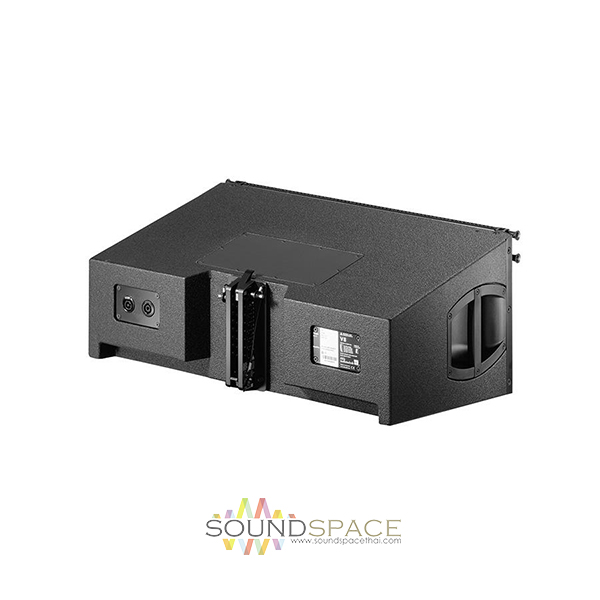

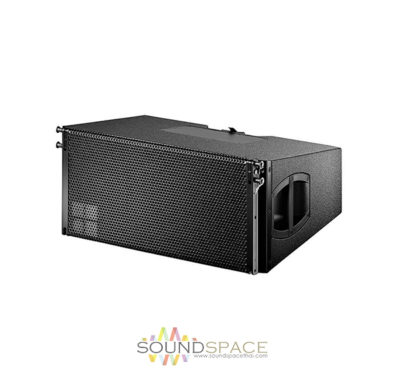

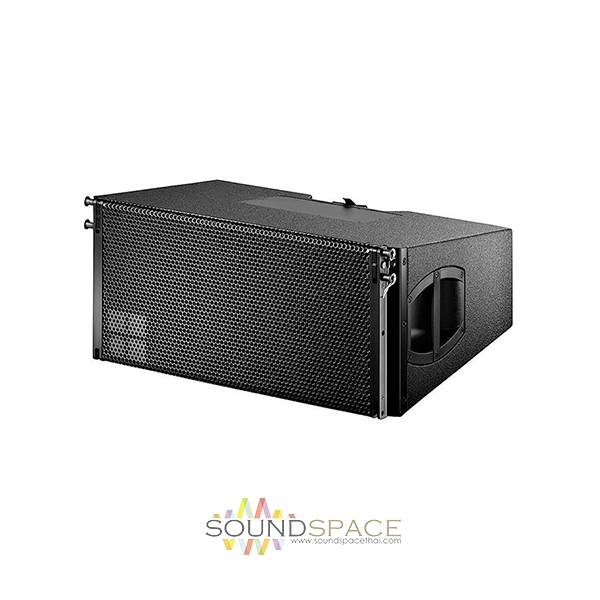

The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.

Features:

  • High performance 3-way passive line array loudspeaker
  • 2 x 10″ driver / 1 x 8″ driver 2 x 1.4″ exit compression driver
  • Passive Crossover Network
  • Power Handling (RMS/peak 10 ms) 500/2000 W
  • dispersion angle (horizontal) 120°
  • impedance 8 Ω, Max SPL 142 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

The d&b D80 amplifier is recommended to drive the V12. The d&b D20 and 30D amplifiers can also be used with the appropriate loudspeaker configuration selected.

Specifications

System data
Frequency response (–5 dB standard) 67 Hz – 18 kHz
Frequency response (–5 dB CUT mode) 100 Hz – 18 kHz
Max. sound pressure (1m, free field)1
with D20/30D
with D80
139 dB
142 dB
Cabinets per amplifier channel 2
Loudspeaker data
Configuration High performance 3-way passive line array loudspeaker
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 500/2000 W
Nominal dispersion angle (horizontal) 120° 13
Splay angle settings 0° – 14° (1° increment)
Components 2 x 10″ driver / 1 x 8″ driver
2 x 1.4″ exit compression driver
passive crossover network
Connections 2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5
Dimensions, weight
Dimensions (H x W x D) 310 x 700 x 460 mm
12.2 x 27.5 x 18″
Weight 34 kg
75 lb
  • 1 SPL max peak test signal: pink noise with crest factor 4
  • 13 ≥ 250 Hz

Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
