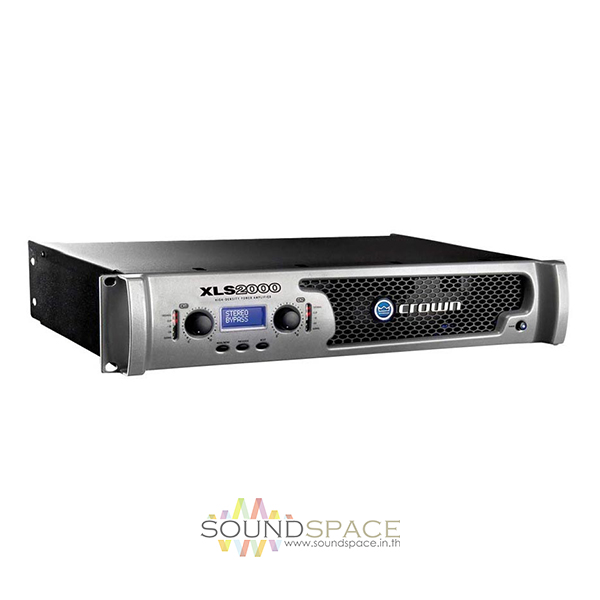

เครื่องขยายเสียงกลางแจ้ง CROWN XLS 2000 digital Class-D amplifier มีกำลังขับ 1300 วัตต์/Ch 8 Ohms, 650W/Ch 4 Ohms

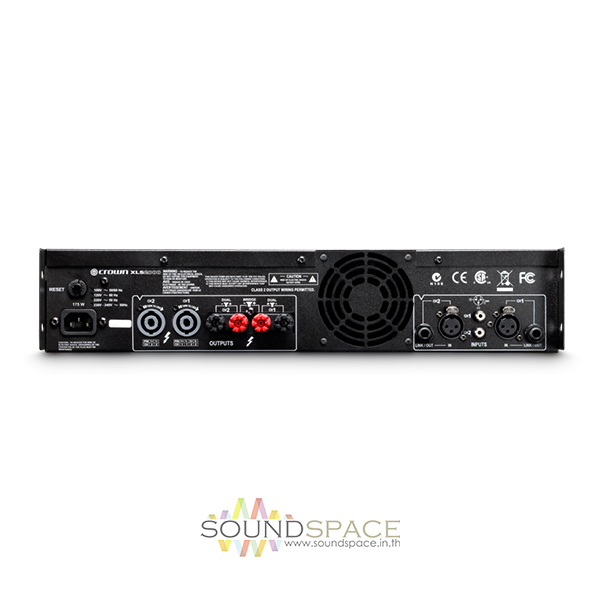

The Crown XLS 2000 is a PA amplifier. The Crown XLS 2000 delivers 2 x 650 watts output power and is with its depth of 27.7 cm one of the larger amplifers of the Crown XLS series. The Crown XLS 2000 impresses not merely with its high quality, but with being very lightweight as well. This is possible as the Crown XLS 2000 was redeveloped using digital Class-D technology and a state of the art switch-mode power supply. Also the Crown XLS 2000 offers all connectors possibly needed: XLR, 3/4″, and RCA inputs as well as 2 Speakon and screw connectors.
The handling of the Crown XLS 2000 is very comfortable employing a front display to manupulate the crossover and the xMax limiters as well as to select the operation mode.
|Sensitivity||1.4Vrms (for full rated power at 4 ohms)|
|Frequency Response (at 1W, 20 Hz – 20 kHz)||+ 0 dB, -1 dB|
|Signal To Noise Ratio (A-weighted)||>103 dB (rated as dBr to full rated 8 ohm power output)|
|Intermodulation Distortion||(60 Hz and 7 kHz at 4:1, from full rated output to -30 dB) <0.3%|
|Damping Factor||(8 ohms, 10 Hz to 400 Hz) >200|
|Crosstalk (below rated power) 20 Hz to 1 kHz||>85 dB, >55 dB|
|Input Impedance (nominal)||20k ohms balanced, 10k ohms unbalanced|
|Load Impedance||2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono|
|AC Line Voltage and Frequency Configurations Available||(+/- 10%) 120VAC 60 Hz, 100 VAC 50/60 Hz, 220 and 240VAC 50 Hz|
|Dimensions||19″ x 3.5″ x 10.7″ (48.3cm x 8.9cm x 27.2cm)|
|Weight||10.8 lbs (4.9 kg)|
|Shipping Weight||15.8 lbs (7.1 kg)|
|IEC Power Connector||15A|
