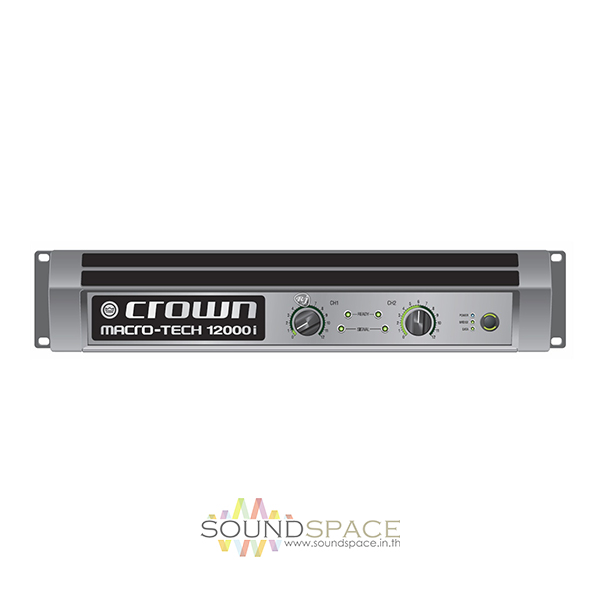

เพาเวอร์แอมป์ CROWN MA 12000i Power Amplifier

เครื่องขยายเสียงกลางแจ้ง CROWN MA 12000i มีกำลังขับ 2100 วัตต์/Ch 8 Ohms, 4500วัตต์/Ch 4 Ohm, Class-I Circuitry, Ethernet Networking, Speakon and Binding Post Outputs, Front-to-Back Airflow, Global Power Supply, Protection Circuitry

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿357,300.00 ฿220,900.00

สอบถามและสั่งซื้อสินค้า

Description

เครื่องขยายเสียง CROWN MA 12000i 2100W 8 Ohms

เครื่องขยายเสียงกลางแจ้ง CROWN MA 12000i มีกำลังขับ 2100 วัตต์/Ch 8 Ohms, 4500วัตต์/Ch 4 Ohm, Class-I Circuitry, Ethernet Networking, Speakon and Binding Post Outputs, Front-to-Back Airflow, Global Power Supply, Protection Circuitry

The MA-12000i from Crown Audio is a professional stereo power amplifier designed for installed applications. The rugged chassis houses patented Class-I circuitry, which provides high-quality audio and gets the most power out of the amplifier with minimal wasted energy. The amplifier has built-in load, line voltage, and I/O monitoring, to protect against faults and shorts. If one channel experiences a failure, the entire amplifier will shut down, potentially saving your equipment.

The MA-12000i can operate in stereo or bridged modes, and offers XLR input and link/out connectors, as well as Speakon and Binding Post outputs, allowing you to connect to virtually any sound system. An Ethernet port lets you connect the amplifier to a network, allowing you to monitor and control the amp from any location. A global power supply and 5 different power cords make sure you’re connected, regardless of where you’re working.

The front panel features individual gain controls for each channel with lighted level indicators. LED lights show the status of Power, Ready, and Signal, and also indicate when you’re in bridge mode or connected to a network. Variable-speed fans with front-to-back airflow keep internal components cool for rock-solid reliability.

Features:

  • Power Rating: 2100W/Channel (8 Ohm Stereo), 4500W/Channel (4 Ohm Stereo), 6000W/Channel (2 Ohm Stereo, 20ms Burst), 9000W (8 Ohm Bridge), 7500W (4 Ohm Bridge)
  • Damping Factor: > 5000
  • Input Sensitivity: 1.4V, 32dB and 26dB Gain
  • Input Impedance: 10 kOhms, Balanced, 5 kOhms, Unbalanced
  • Gain: 24.5 to 39.3dB
  • Frequency Response: 20Hz – 20kHz
  • Signal-to-Noise Ratio: > 108dB
  • Total Harmonic Distortion (THD): < 0.1%
  • Input Connectors: 2 x XLR Inputs, 1 x AC Power Input
  • Output Connectors: 2 x XLR Link/Out Connectors, 2 x Speakon Outputs, 2 x Binding Post Outputs (2 Terminals Each), 1 x Ethernet Port
  • Controls Front Panel: 2 x Gain Control Knobs, 1 x On/Off Button
  • Controls Rear Panel: 1 x Power Switch, 1 x Input Sensitivity Button, 1 x Mode Selector Button, 1 x Reset Button
  • Indicators:
    • Front Panel: 2 x Level Indicators, 2 x Ready LEDs, 2 x Signal LEDs, 1 x Power LED, 1 x Bridge LED, 1 x Data LED,
    • Rear Panel: 1 x Input Sensitivity LED, 1 x Mode LED, 1 x Preset LED, 1 x Data LED, 1 x Link/Act LED, 1 x 100MB LED
  • Cooling: Dual-Zone, Microprocessor-Controlled, Continuously Variable Speed Fans, Front-to-Back Airflow
  • Power Requirements: 100-240VAC, 50/60Hz
  • Dimensions (WxHxD): 19 x 3.5 x 16.2″ (483 x 89 x 411mm)
  • Weight: 28 lbs (12.7kg)

Specifications

Power Rating 2100W/Channel (8 Ohm Stereo)

4500W/Channel (4 Ohm Stereo)

6000W/Channel (2 Ohm Stereo, 20ms Burst)

9000W (8 Ohm Bridge)

7500W (4 Ohm Bridge)

Damping Factor > 5000
Input Sensitivity 1.4V, 32dB and 26dB Gain
Input Impedance 10 kOhms, Balanced

5 kOhms, Unbalanced

Gain 24.5 to 39.3dB
Frequency Response 20Hz – 20kHz
Signal-to-Noise Ratio > 108dB
Total Harmonic Distortion (THD) < 0.1%
Input Connectors 2 x XLR Inputs

1 x AC Power Input

Output Connectors 2 x XLR Link/Out Connectors

2 x Speakon Outputs

2 x Binding Post Outputs (2 Terminals Each)

1 x Ethernet Port

Controls Front Panel 2 x Gain Control Knobs

1 x On/Off Button

Controls Rear Panel 1 x Power Switch

1 x Input Sensitivity Button

1 x Mode Selector Button

1 x Reset Button

Indicators Front Panel:

2 x Level Indicators

2 x Ready LEDs

2 x Signal LEDs

1 x Power LED

1 x Bridge LED

1 x Data LED

Rear Panel:

1 x Input Sensitivity LED

1 x Mode LED

1 x Preset LED

1 x Data LED

1 x Link/Act LED

1 x 100MB LED

Cooling Dual-Zone, Microprocessor-Controlled, Continuously Variable Speed Fans

Front-to-Back Airflow

Power Consumption Not Specified by Manufacturer
Power Requirements 100-240VAC, 50/60Hz
Dimensions (WxHxD) 19 x 3.5 x 16.2″ (483 x 89 x 411mm)
Weight 28 lbs (12.7kg)
Packaging Info
Package Weight 36.0 lb
Box Dimensions (LxWxH) 23.0 x 23.0 x 7.0″

DOWNLOADS

ดาวน์โหลด DATA SHEET เพาเวอร์แอมป์ CROWN MA 12000i

ดาวน์โหลด

  •  HiQnet Audio Architect™ (Windows)
  • Ios 17 Powered by Crown App v2.0.3 (iOS)
  •  HiQnet Performance Manager™ (Windows)
  •  IQwic v8.01 (Windows)
  •  IQwic v8.10a (Windows)
  •  IQwic v8.22 (Windows)
  •  IQwic v8.23 (Windows)
