เพาเวอร์แอมป์ CREST AUDIO CC5500 Power Amplifier

เครื่องขยายเสียงกลางแจ้ง CREST AUDIO CC5500 มีกำลังขับ 2×1800 วัตต์/4 Ohms,2×1150 วัตต์/ 8 Ohms, 2 Ohms,2×2750 วัตต์/ 8 Ohms

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿97,500.00 ฿49,000.00

สอบถามและสั่งซื้อสินค้า

Description

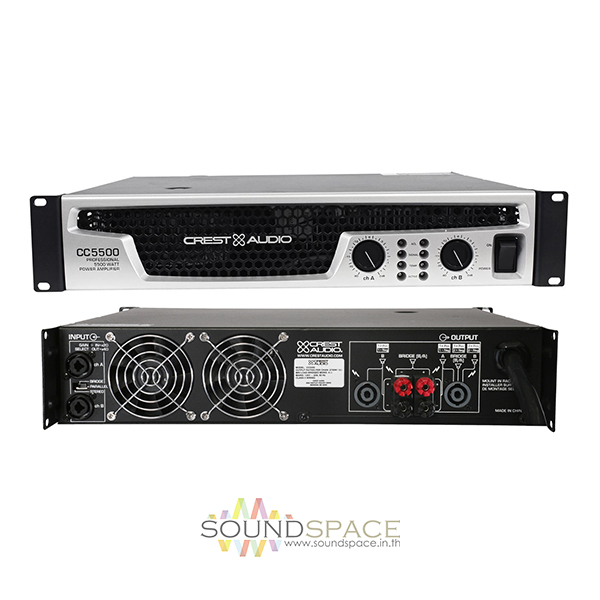

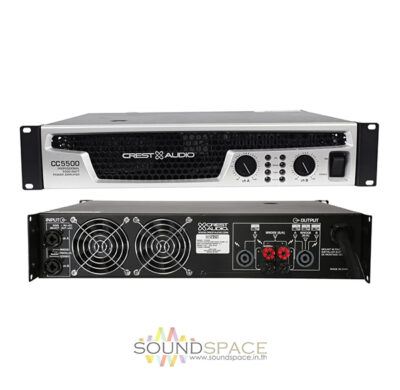

CREST AUDIO CC5500 Power Amplifier

เครื่องขยายเสียงกลางแจ้ง CREST AUDIO CC5500 มีกำลังขับ 2×1800 วัตต์/4 Ohms,2×1150 วัตต์/ 8 Ohms, 2 Ohms,2×2750 วัตต์/ 8 Ohms

The 2RU CC5500 Professional Power Amplifier from Crest Audio is designed to deliver stable high power output for running main systems, monitors, and subwoofers. The amplifier can be operated in parallel, stereo, or mono bridged mode. It offers two channels and a power rating of up to 5550W bridged at 4Ω. This amplifier features 16 power devices per channel, and a switched-rail class H stage and triple-compound design to provide low distortion and thermal stability. The on-board protection suite includes Crest Audio’s proprietary ACL (Automatic Clip Limiting) circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers. It also features Temperature, Signal, and Active safeguards for each channel, all referenced on the front panel with LED indicators along with the ACL indicators. It features a toroidal power transformer and a magnetic circuit breaker On/Off switch. This unit is cooled by two variable speed fans with back-to-front airflow.

Features:

  • 8 Ohm Stereo – 1150 W
  • 4 Ohm Stereo – 1800 W
  • 2 Ohm Stereo – 2750 W
  • 4 Ohm Bridged – 5500 W
  • Toroidal power transformer
  • Magnetic circuit breaker on/off switch
  • Cooled by variable speed fan with back-to-front airflow
  • Mode selector switch for stereo, parallel and bridged-mono operation
  • Inputs: Balanced female XLR, 1/4″ TRS combi jacks
  • Outputs: Speakon®
  • Five-way binding posts
  • RCA record output
  • Recessed, stepped attenuators
  • 16-gauge steel chassis, cast aluminum front panel

Specifications

Power Rating Bridge 4 Ω: 5,550 W @ 1 kHz, < 0.1% THD

2 Channels x 2 Ω: 2,750 W per channel @ 1 kHz, < 0.1% THD, both channels driven

2 Channels x 4 Ω: 1,800 W per channel @ 1 kHz, < 0.05% THD, both channels driven

2 Channels x 8 Ω: 1,150 per channel W @ 1 kHz, < 0.05% THD, both channels driven

1 Channel x 2 Ω: 3,600 W @ 1 kHz, < 0.1% THD

1 Channel x 4 Ω: 2,200 W @ 1 kHz, < 0.05% THD

1 Channel x 8 Ω: 1,280 W @ 1 kHz, < 0.05% THD

Damping Factor > 400:1 @ 20 Hz to 1 kHz @ 8 Ω
Input Sensitivity 4 Ω Rated power, 1 kHz: 2.18 V ± 3%

2 Ω Rated power, 1 kHz: 1.89 V ± 3%

Input Impedance Balanced: 15 kΩ

Unbalanced: 7.5 kΩ

Minimum Load Impedance 2 Ω
Maximum RMS Voltage Swing 115 V
Frequency Response 10 Hz to 40 kHz, +0 dB, -3 dB @ 1 W
Power Bandwidth 10 Hz to 30 kHz, +0 dB, -3 dB @ rated 4 Ω power
Total Harmonic Distortion (THD) 2 Channel x 2 Ω: < 0.2% @ 1,900 W per channel, 20 Hz to 20 kHz

2 Channel x 4 Ω: < 0.1% @ 1,525 W per channel, 20 Hz to 20 kHz

2 Channel x 8 Ω: < 0.1% @ 1,000 W per channel, 20 Hz to 20 kHz

Input CMRR > – 63 dB @ 1 kHz
Voltage Gain x40, 32 dB

x20, 26 dB

Crosstalk > -67 dB @ 1 kHz @ 700 W @ 4 Ω
Hum and Noise > -110 dB, “A” weighted referenced to rated power @ 8 Ω
Slew Rate > 10 V/μs
Phase Response + 5 to -15°, 20 Hz to 20 kHz
Connectors Rear Panel:

1 x 3-pin IEC, AC power input

1 x Speakon, channel A output

1 x Speakon, channel B output

2 x Speaker terminal, channel A output

2 x Speaker terminal, channel B output

1 x Combo 1/4″ XLR, channel A input

1 x Combo 1/4″ XLR, channel B input

Controls Front Panel:

1 x Channel A rotary knob

1 x Channel B rotary knob

1 x AC Power On/Off switch

Rear Panel:

1 x Mode selection switch (bridge / parallel / stereo)

1 x Gain select switch (Out: x40 (32 dB) / In: x20 (26 dB)

LED Indicators Front Panel:

2 x Active

2 x Temperature

2 x Channel Signal

2 x ACL (Automatic Clip Limiting)

Cooling 2 Temperature dependent variable speed 80 mm DC fans (rear panel)
Power Requirements Current Draw @ 1/8:

2,640 W @ 2 Ω

1,740 W @ 4 Ω

1,140 W @ 8 Ω

Current Draw @ 1/3:

5,920 W @ 2 Ω

4,150 W @ 4 Ω

2,690 W @ 8 Ω

Dimensions (H x W x L) 3.5 x 19.0 x 14.9″ (8.9 x 48.3 x 37.8 cm)

+Ears and Connectors: 1.25″ (3.2 cm)

Weight 47.0 lb (21.3 kg)
