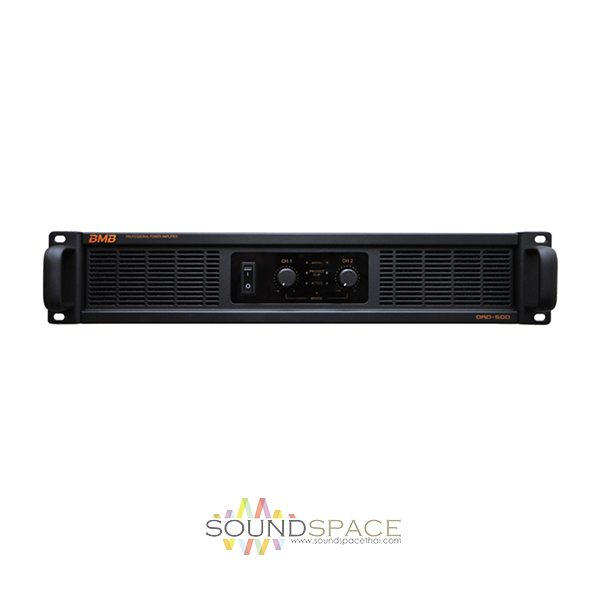

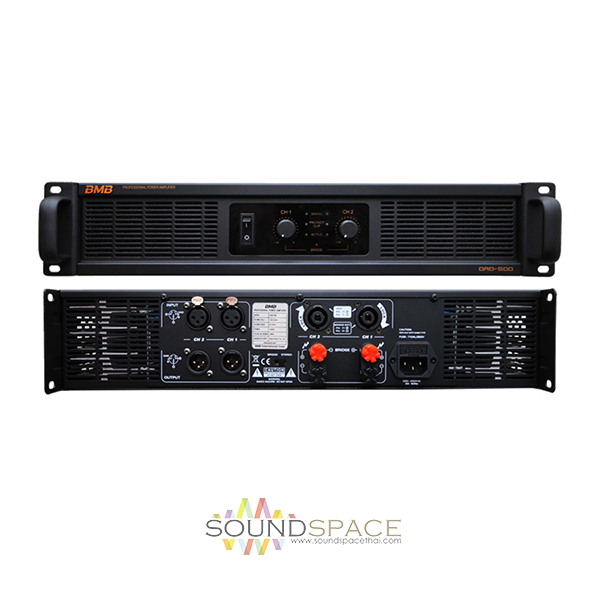

เพาเวอร์แอมป์ BMB DAD-500 Standard Power Amplifier

฿31,500.00

เพาเวอร์แอมป์ BMB DAD-500 เป็นเครื่องขยายเสียงสำหรับงาน PA หรือ Karaoke มีกำลังขยาย 700W×2CH @ 4Ω, 500W×2CH@ 8Ω, Circuit safety protection will prevent damage in case of accident, Automatic air volume control fans

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

แชร์สินค้านี้: Facebook X LINE

Description

BMB DAD-500 Standard Power Amplifier 2x500W@8Ω

เพาเวอร์แอมป์ BMB DAD-500 เป็นเครื่องขยายเสียงสำหรับงาน PA หรือ Karaoke มีกำลังขยาย 700W×2CH @ 4Ω, 500W×2CH@ 8Ω, Circuit safety protection will prevent damage in case of accident, Automatic air volume control fans, Switch 2 type of output system (Stereo / Bridge)

The BMB DAD-500 is a professional 2U power amplifier from the Japanese brand BMB, designed for high-end karaoke and PA systems. It delivers a maximum power output of 1,000 watts in bridge mode and features comprehensive protection circuitry for stability and durability in continuous commercial use.

Features:

  • 700W×2CH(4Ω) stereo mode
  • 500W×2CH(8Ω) stereo mode
  • 1000W×1CH(8Ω) bridge mode
  • Case size is standard 2U
  • Circuit safety protection will prevent damage in case of accident.
  • Switch 2 type of output system. (Stereo / Bridge)

Specifications

Rating Output Power
1kHz THD=@1%
700W×2CH(4Ω):stereo mode
500W×2CH(8Ω):stereo mode
1000W×1CH(8Ω):bridge mode
Frequency Characteristic(20Hz~20kHz、8Ω) ±0.3dB
THD(8Ω,1kHz) 0.02%
SN Ratio 103dB over
Damping factor(100Hz 8Ω) 250 over
Voltage Gain 40±2dB
Channel Separation(20Hz~1000Hz 8Ω) 85dB over
Input Impedance 20kΩ(balance)

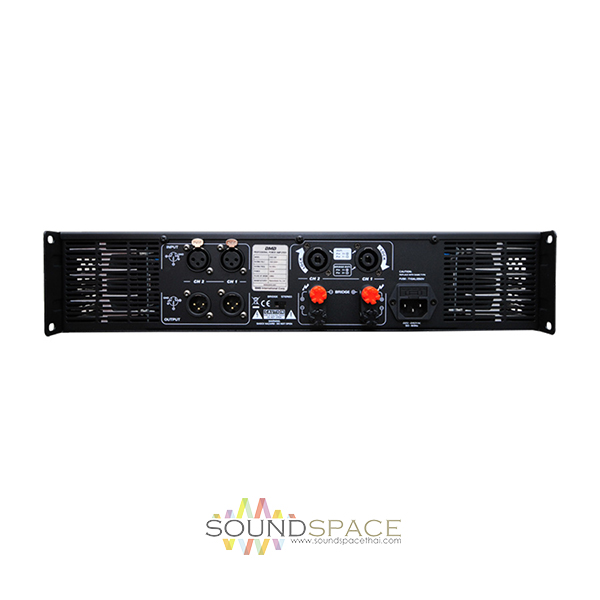

Audio Input Connectors XLR type×2CH
Output Connectors Neutrik SpeakON® NL4MP(1+/1-)
Screw type(+/-)
HPF Switch 50Hz/PASS
Ground Switch GND/FLOAT
AC Input 220V~240V(50/60Hz)
Power Consumption(1/8 Output Pink noise 8Ω) 1900W
Cooling Fans Automatic air volume control fans
Dimensions(mm) 482(W)×89(H)×423(D)
Weight 19.0kg

Downloads

ดาวน์โหลด Data Sheet DAD-500
