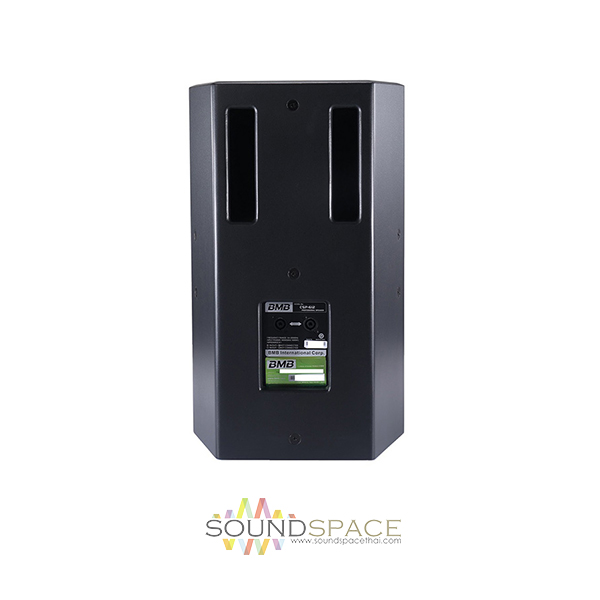

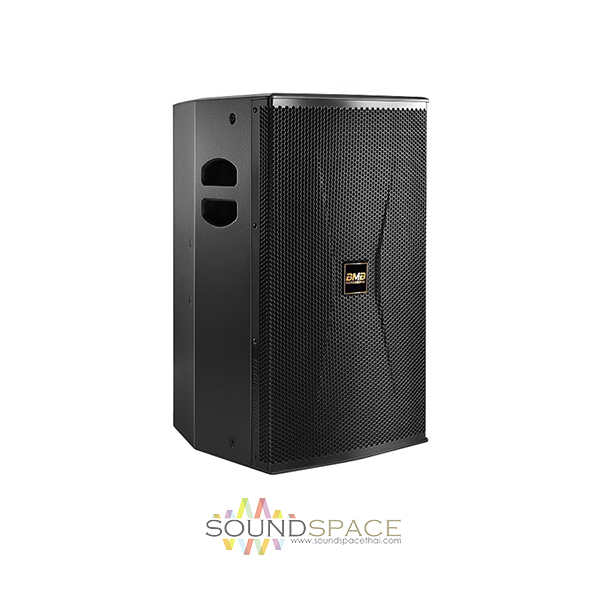

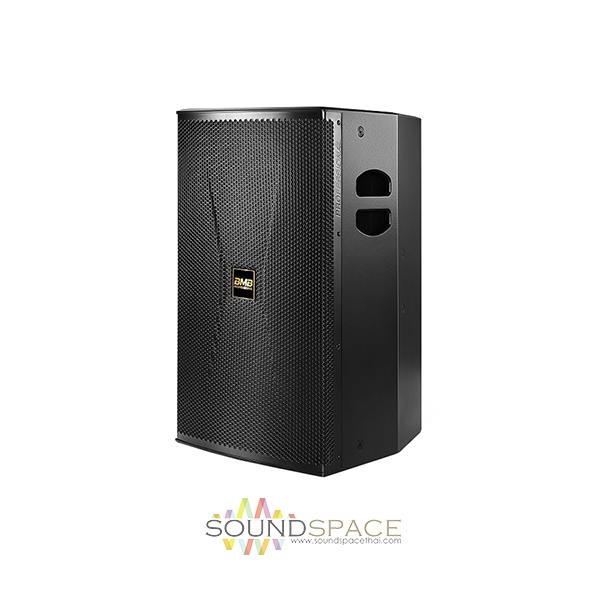

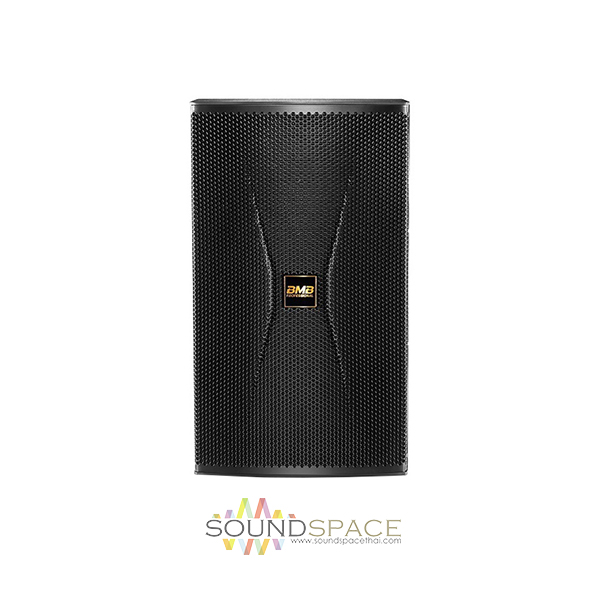

ตู้ลำโพง BMB CSP-615 Passive Two-Way loudspeaker 15″

฿46,500.00

ตู้ลำโพง BMB CSP-615 เป็นตู้ลำโพงแบบ Passive Two-Way loudspeaker Bass Reflex , ประกอบด้วยดอกลำโพง Woofer ขนาด 15″ ลำโพง Tweeter 1.5″ ทนกำลังขับ Continuous 600W, Program 1200W, Peak 2400W, Impedance 8 Ohms, for KTV, Bar, Club, Restaurant, Various Scene

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..เป็นราคาใบละ….

แชร์สินค้านี้: Facebook X LINE

Description

BMB CSP-615 Passive Two-Way loudspeaker 15″ 600W

ตู้ลำโพง BMB CSP-615 เป็นตู้ลำโพงแบบ Passive Two-Way loudspeaker Bass Reflex , ประกอบด้วยดอกลำโพง Woofer ขนาด 15″ ลำโพง Tweeter 1.5″ ทนกำลังขับ Continuous 600W, Program 1200W, Peak 2400W, Impedance 8 Ohms, for KTV, Bar, Club, Restaurant, Various Scene

The BMB CSP-615 is a 2-way speaker with a 15-inch main speaker, a rated input of 600 watts, and a maximum input power of 2400 watts. It has an impedance of 8 ohms, a horizontal and vertical dispersion angle of 90 degrees, a polyswitch breaker for high-frequency protection, SPK4 x 2 connectors, a frequency response of 56 – 20,000 Hz

Cabinet made of high quality birch plywood assembled by box joint. The tough structure keeps outputting powerful sound stably. Clear high frequency sound by fine-tuned diaphragmA new type of vocal and music mixing style. Not only for KTV, but also for Bar, Club, Restaurant, various scene.

Features :

  • 2-Way 2-Speakers Bass-Reflex Speaker System (Single)
  • 15″ 2400W Max at 8 Ohms
  • Rotatable BMB Logo Plate make it possible to set up the speakers anywhere

Specifications

System Type Two-Way loudspeaker, bass reflex
Frequency Range(-10dB) *1 56Hz~20kHz
Frequency Response(±3dB) *1 95Hz~20kHz
Sound Pressure Level *2 97dB
Impedance 8Ω
Max Sound Pressure Level *3 124dB(Peak 130dB)
Power Capacity Continuous 600W, Program 1200W, Peak 2400W
Dimensions (W)443mm×(H)700mm×(D)463mm
(17.4″×27.6″×18.2″)
Shipping Dimensions (W)550mm×(H)825mm×(D)570mm
(21.7″×32.5″×22.4″)
Net Weight 33.5kg(73.7lbs)
Shipping Weight 39.3kg(86.6lbs)
Input Connectors Speaker Connector(4P)×2
Pole Mount Cap Φ36mm(1.4″), Depth 75mm(3.0″)
Speaker unit LF Unit:390mm(15.4″) Cone, 100mm(3.9″) Voice Coil×1
HF Unit:37mm(1.5″) Throat, 75mm(3.0″)Voice Coil×1
Enclosure Construction 15mm(0.6″) Plywood
Accessories Owners manual
Registration card
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Downloads

ดาวน์โหลด Data Sheet CSP-615
