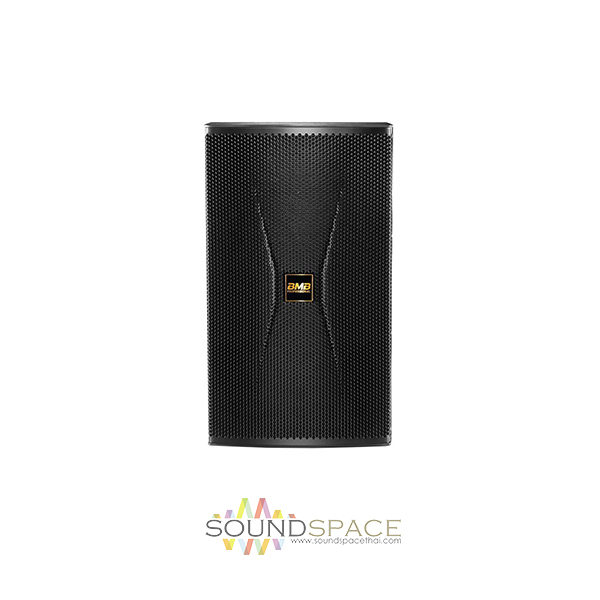

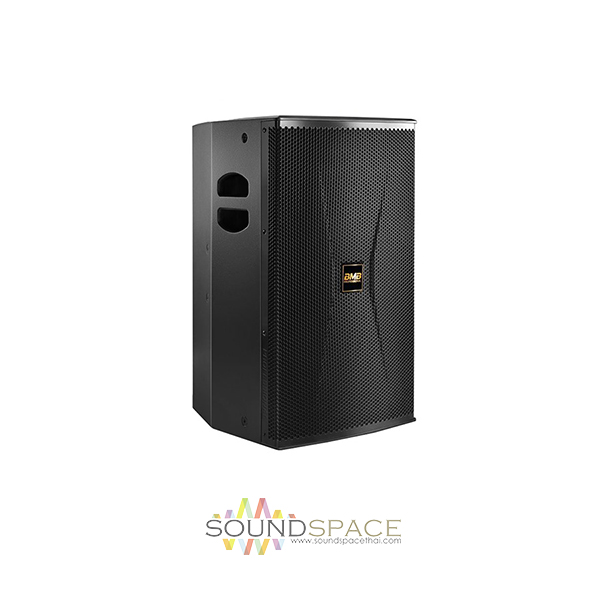

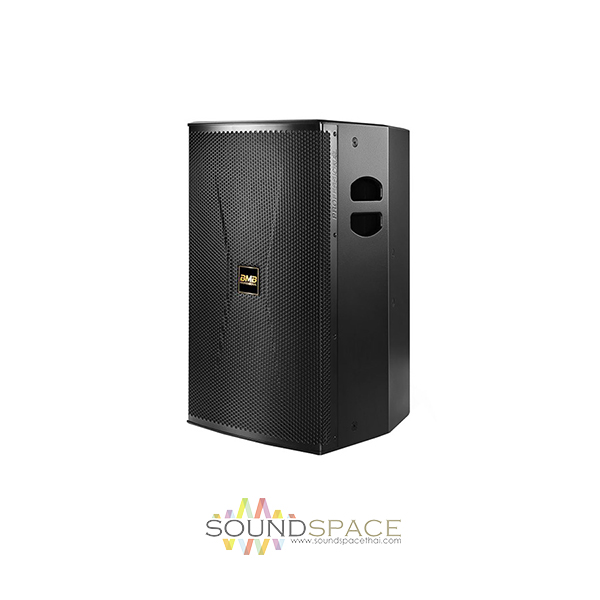

ตู้ลำโพง BMB CSP-612 Passive Two-Way loudspeaker 12″

฿35,500.00

ตู้ลำโพง BMB CSP-612 เป็นตู้ลำโพงแบบ Passive Two-Way loudspeaker Bass Reflex , ประกอบด้วยดอกลำโพง Woofer ขนาด 12″ ลำโพง Tweeter 1″ ทนกำลังขับ Continuous 400W, Program 800W, Peak 1600W, Impedance 8 Ohms, for KTV, Bar, Club, Restaurant, Various Scene

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..เป็นราคาใบละ….

แชร์สินค้านี้: Facebook X LINE

Description

BMB CSP-612 Passive Two-Way loudspeaker 12″ 400W

ตู้ลำโพง BMB CSP-612 เป็นตู้ลำโพงแบบ Passive Two-Way loudspeaker Bass Reflex , ประกอบด้วยดอกลำโพง Woofer ขนาด 12″ ลำโพง Tweeter 1″ ทนกำลังขับ Continuous 400W, Program 800W, Peak 1600W, Impedance 8 Ohms, for KTV, Bar, Club, Restaurant, Various Scene

The BMB CSP-612 is a 2-way speaker with a 12-inch main speaker, a rated input of 400 watts, and a maximum input power of 1600 watts. It has an impedance of 8 ohms, a horizontal and vertical dispersion angle of 90 degrees, a polyswitch breaker for high-frequency protection, SPK4 x 2 connectors, a frequency response of 58 – 20,000 Hz

Cabinet made of high quality birch plywood assembled by box joint. The tough structure keeps outputting powerful sound stably. Clear high frequency sound by fine-tuned diaphragmA new type of vocal and music mixing style. Not only for KTV, but also for Bar, Club, Restaurant, various scene.

Features :

  • 2-Way 2-Speakers Bass-Reflex Speaker System (Single)
  • 12″ 1600W Max at 8 Ohms
  • Rotatable BMB Logo Plate make it possible to set up the speakers anywhere

Specifications

System Type Two-Way loudspeaker, bass reflex
Frequency Range(-10dB) *1 58Hz~20kHz
Frequency Response(±3dB) *1 110Hz~20kHz
Sound Pressure Level *2 96dB
Impedance 8Ω
Max Sound Pressure Level *3 122dB(Peak 128dB)
Power Capacity Continuous 400W, Program 800W, Peak 1600W
Dimensions (W)378mm×(H)625mm×(D)408mm
(14.9″×24.6″×16.1″)
Shipping Dimensions (W)480mm×(H)735mm×(D)510mm
(18.9″×28.9″×20.1″)
Net Weight 26.7kg(58.9lbs)
Shipping Weight 30.3kg(66.8lbs)

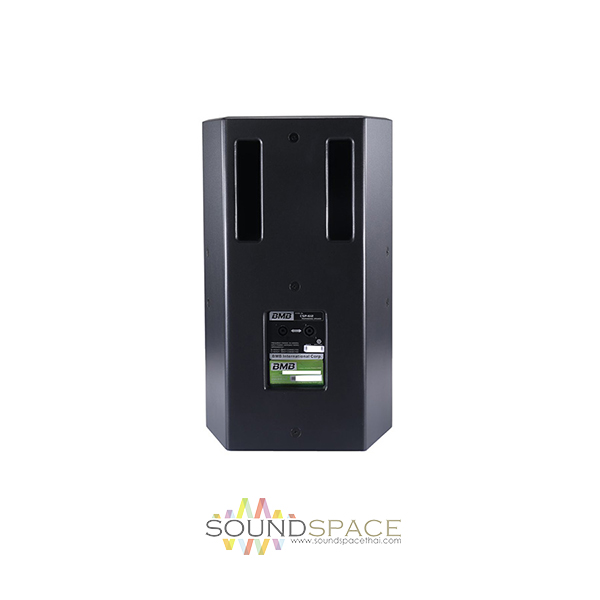

Input Connectors Speaker Connector(4P)×2
Pole Mount Cap Φ36mm(1.4″), Depth 75mm(3.0″)
Speaker unit LF Unit:300mm(12.0″) Cone, 75mm(3.0″) Voice Coil×1
HF Unit:25mm(1.0″) Throat, 44.4mm(1.7″) Voice Coil×1
Enclosure Construction 15mm(0.6″) Plywood
Accessories Owners manual
Registration card
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Downloads

ดาวน์โหลด Data Sheet CSP-612
