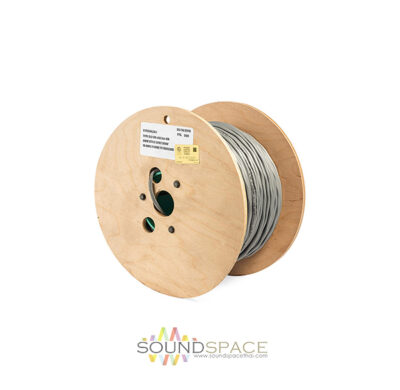

สายสัญญาณเสียง BELDEN 8760 Audio Multi-Pair Cable
สายสัญญาณออดิโอ BELDEN 8760 เป็นสายสัญญาณเสียงแบบสายชีลด์ 2 ไส้ ขนาด 18 AWG (16×30) Tinned Copper, Electronic, 2 Conductor, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM, Applications Audio, Control and Instrumentation
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..เป็นราคาต่อม้วน (305 เมตร)
฿14,000.00
Description
BELDEN 8760 Audio Wiring Multi-Pair Cable
สายสัญญาณออดิโอ BELDEN 8760 เป็นสายสัญญาณเสียงแบบสายชีลด์ 2 ไส้ ขนาด 18 AWG (16×30) Tinned Copper, Electronic, 2 Conductor, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM, Applications Audio, Control and Instrumentation
The BELDEN 8760 0601000 is a 1-pair Multi-conductor Cable with tinned-copper conductors, polypropylene insulation, twisted-pair, overall Beldfoil® shielded (100% coverage) and PVC jacket.
Features:
- 1 twisted pair
- 18 AWG
- Overall foil screen
- Grey LSZH jacket
- CPR Category Eca
- RoSH2 (2011/65/EU)
- Applications Audio, Control and Instrumentation
Specifications
| Temp Range, Operating | -20ºC To +60ºC |
| Temp Rating, Ul | 60ºC (UL AWM Style 2092) |
| Capacitance | 44.000 |
| Capacitance (Metric) | 144.364 |
| Current, Max. Recomm. | 5.2 Amps per conductor @ 25ºC |
| Impedance | 57 |
| Inductance | .180 |
| Inductance (Metric) | 0.59058 |
| Voltage, Max. Operating | 300 V RMS (UL AWM Style 2092) |
| Sku | B-8760-500 |
| Manufacturer | Belden |
| Awm Specification | UL Style 2092 (300 V 60ºC) |
| Cec/C(Ul) Specification | CM |
| Rohs | Yes |
| Eu Ce Mark | Yes |
| Nec/(Ul) Specification | CM |
| Mfr. Part No | 8760 060500 |
| Weight | 14.5000 |
| Type | Paired |
| Conductor Size (Awg) | 18 |
| Conductor Material | TC – Tinned Copper |
| Number Of Pairs | 1 |
| Conductor Stranding | 16×30 |
| Insulation Material | PE – Polyethylene |
| Insulation Wall Thickness | .019 |
| Insulation Wall Thickness (METRIC) | 0.4826 |
| Overall Nominal Diameter | 0.222 |
| Outer Jacket Wall Thickness | .028 |
| Outer Jacket Material | PVC – Polyvinyl Chloride |
| Outer Shield Coverage | 100 |
| Outer Shield Material | Aluminum Foil-Polyester Tape w/Shorting Fold |
| Outer Shield Type | Tape |
| Amount | 500 ea |
| Overall Cabling – Overall Nominal Diameter (Metric) | 5.6388 |
| Outer Jacket – Nom. Wall Thickness (Metric) | 0.7112 |
Downloads
ดาวน์โหลด Data Sheet BELDEN 8760
