เครื่องปรับแต่งสัญญาณเสียง BEHRINGER PRO DEQ2496 Processor
เครื่องปรับแต่งสัญญาณเสียง DEQ2496 Ultra-high resolution 24-bit/96 kHz mastering processor featuring 32/40-bit floating-point DSP technology Audiophile 24-bit/96 kHz A/D

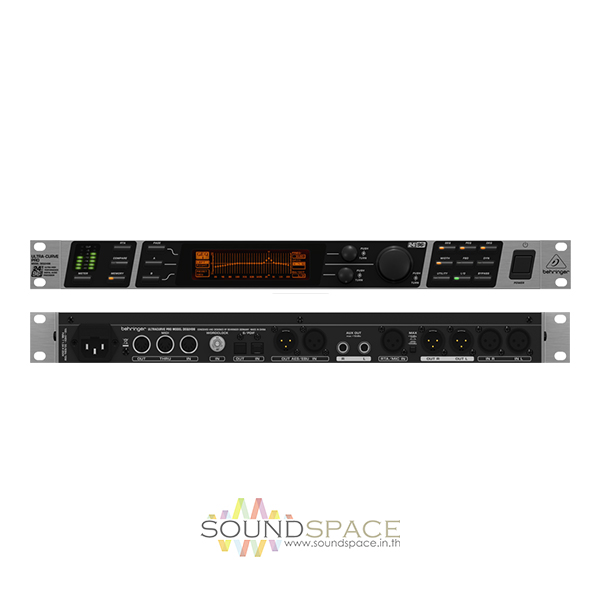

The ULTRACURVE PRO DEQ2496 is a high-precision, 24-bit/96kHz digital equalizer/RTA mastering processor with four concurrently selectable EQ modules, ideal for audiophile mastering and PA purposes. The unit provides a thirty-one band graphic EQ, ten-band parametric EQ, a Feedback Destroyer section and three dynamic EQs per channel.
An additional sixty-one band RTA (Real Time Analyzer) can be run simultaneously with the EQ section and has a separate microphone/line input with phantom power. There are multi-functional level meters plus sixty-four user memories for complete setups and/or individual module configurations. MIDI connections provide for full remote control, preset dumps and system updates.
The DEQ2496 features 24-bit/96kHz A/D and D/A converters and two, high-performance floating-point SHARC digital signal processors for high-quality sonic resolution. Also included are a stereo auxiliary output, AES/EBU and S/PDIF inputs and outputs and word-clock input. An internal switching power supply provides flexibility and assures noise-free audio, superior transient response and low power consumption.
Features:
- Ultra-high resolution 24-bit/96 kHz mastering processor featuring 32/40-bit floating-point DSP technology
- Audiophile 24-bit/96 kHz A/D
- – and D/A converters offering 113 dB dynamic range
- 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer plus 3 Dynamic EQs per stereo channel)
- Ultra-high resolution 61-band real-time FFT analyzer with additional auto EQ function for room and loudspeaker equalization
- Unique VPQ (Virtual Paragraphic EQ) option allows parametric control of graphic EQs
- State-of-the-art compressor/expander with peak limiter per stereo channel, additional stereo imager and stereo delay for delay line applications
- Multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA/Mic input)
- 64 user memories for complete setups and/or individual module configurations
- Separate mic/line input with phantom power for RTA and Auto-EQ applications
- Balanced inputs and servo-balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical)
- Professional Wordclock input and MIDI connections for full remote control, preset dumps and system updates
- Open architecture allowing future software updates via MIDI
- “Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- Conceived and designed by BEHRINGER Germany
