Description

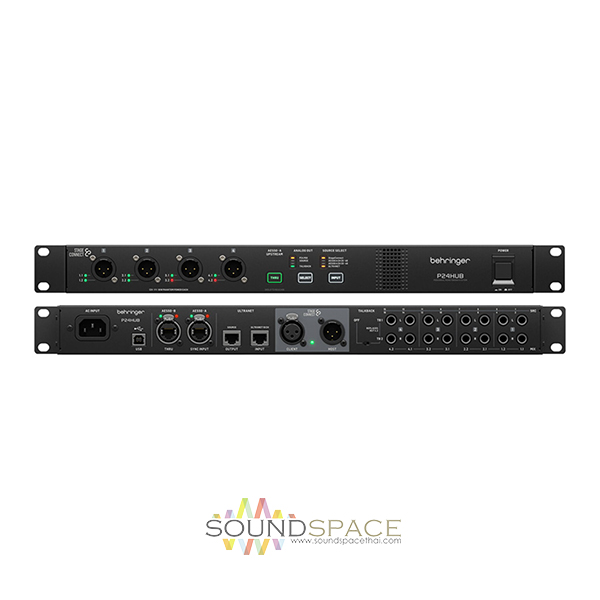

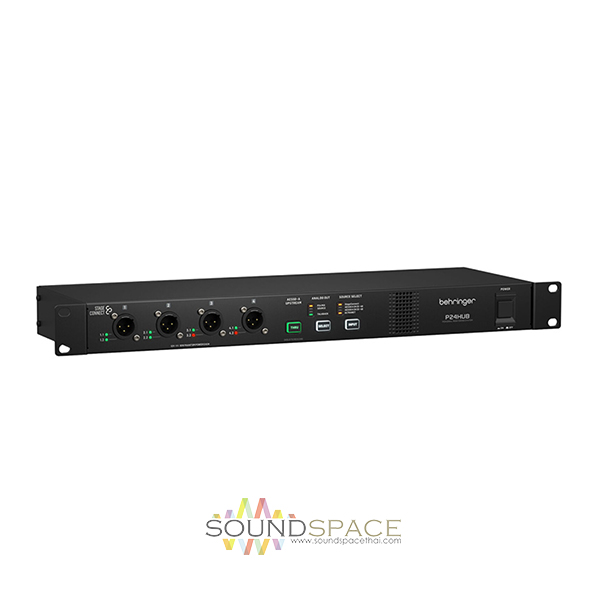

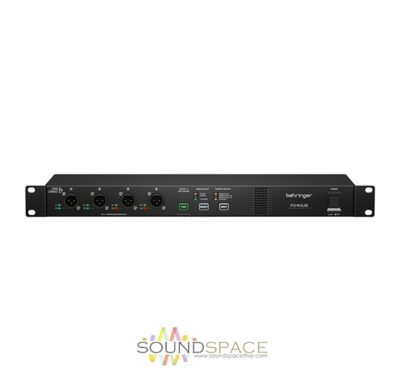

BEHRINGER P24HUB StageConnect Hub for P24
Behringer P24HUB เป็น StageConnect Hub ที่ออกแบบมาสำหรับกระจายสัญญาณเชื่อมต่อกับ Personal Monitor Mixer, 16-ch Distribution Hub with StageConnect Bus Powering for 8 Personal Monitor Mixers, Auto-Ranging Switch-Mode Power Supply
The Behringer P24HUB is a central distribution hub for personal monitoring systems, designed to streamline setups on stage. It powers and distributes audio to up to eight daisy-chained Behringer P24 personal monitor mixers, simplifying cabling and management.
Using Behringer’s StageConnect protocol, the hub transmits multiple audio signals and control data over a single XLR cable. The hub delivers 24-bit uncompressed PCM audio at 44.1/48 kHz with sub-millisecond latency, ensuring high-quality and timely audio distribution.
The P24HUB offers both analog outputs (16 balanced 1/4″ TRS) for connecting to wireless in-ear monitor transmitters, and digital connectivity (AES50 and Ultranet) for integrating with other digital audio systems.
It is equipped with the StageTalk intercom system, which enables seamless communication between front-of-house engineers, stage technicians, and performers. The P24HUB is expandable, allowing multiple units to be daisy-chained together for larger setups. Housed in a durable 1 RU rackmount chassis, the hub is built for both touring and fixed installations.
Features:
- 16-channel distribution hub with StageConnect bus powering
- Compatible with the Behringer’s P24 personal mixers
- Includes AES50, Ultranet, and analog connectivity

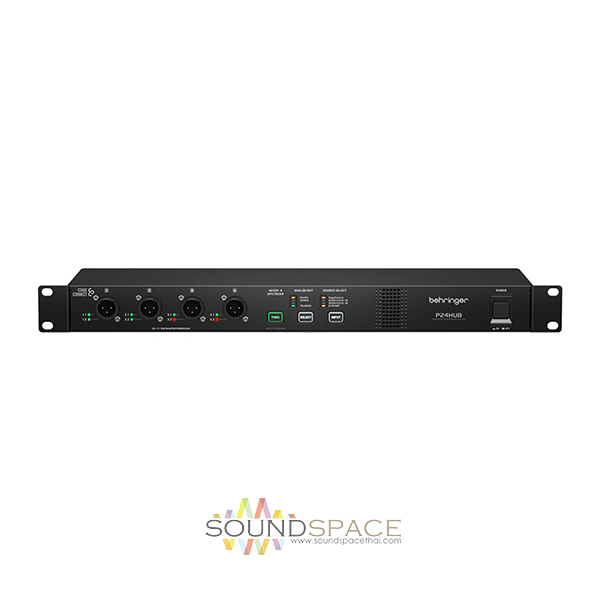

- 4 front-panel StageConnect ports can power 2 daisy-chained mixers each

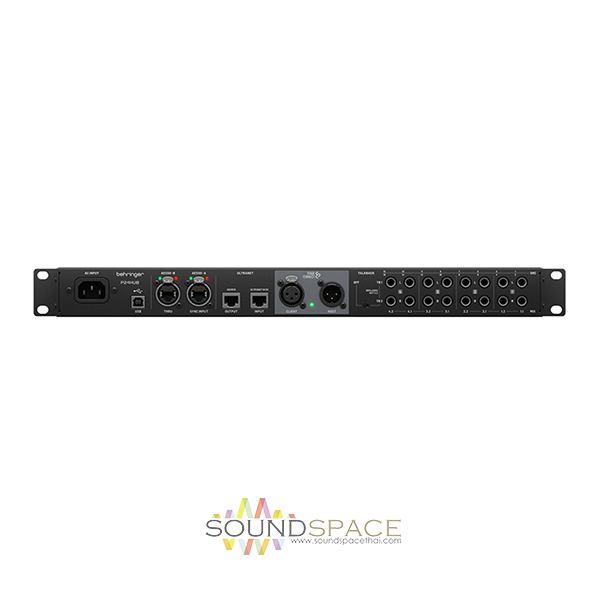

- 16 balanced analog outputs can route up to 8 personal stereo mixes to wireless IEM transmitters
- AES50 In and Thru with 48 bidirectional channels over Cat 5e
- Integrated sample-rate conversion accommodates 96kHz AES50-equipped devices
- 16-channel Ultranet input; comprehensive Ultranet I/O for compatibility with Behringer’s Powerplay equipment
- Provides pristine, low-latency audio up to 24-bit/48kHz
- Stable operation range of more than 130 ft. over a single XLR cable
- Road-ready 1U rackmount chassis
- Integrated auto-ranging switch-mode power supply
