มิกเซอร์มอนิเตอร์ BEHRINGER P16-HQ 16-Channel Personal Monitoring Mixer

Name: มิกเซอร์มอนิเตอร์ BEHRINGER P16-HQ 16-Channel Personal Monitoring Mixer
Price: 16500.00 THB
Availability: InStock

มิกเซอร์ Personal Mixer สำหรับ Monitor Mixing BEHRINGER P16-HQ 16-channel Digital Personal Monitor Mixer for Behringer Powerplay Distribution Systems, Level and Pan Control w/ LED Indicators, 3-Band EQ per Channel, Total Recall and Presets

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿16,500.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: BEHRINGER

Description

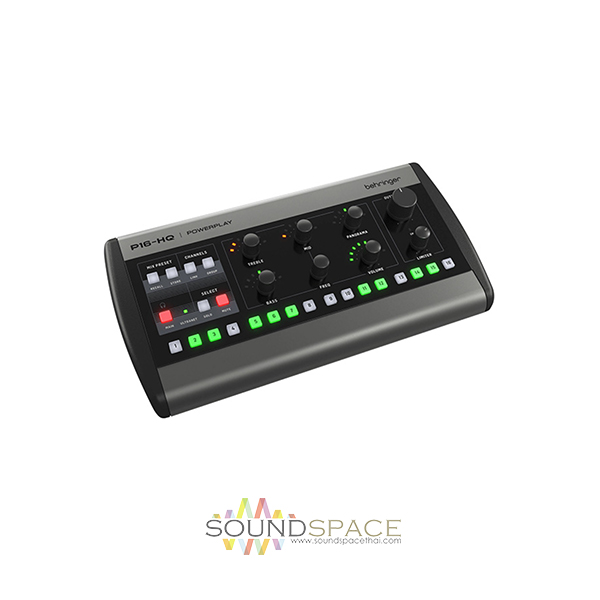

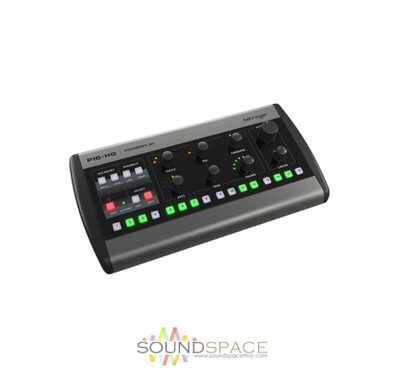

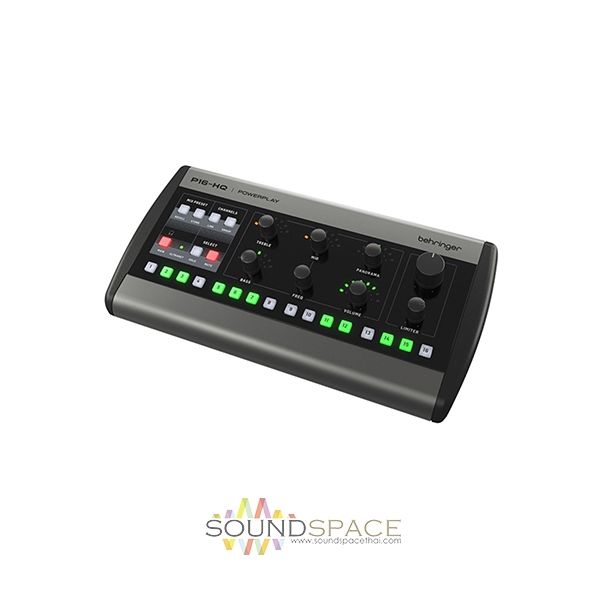

BEHRINGER P16-HQ 16-Channel Personal Monitoring Mixer

Behringer P16-HQ is a 16-channel personal monitor mixer with an intuitive control surface with total recall and presets for custom mixes. The P16-HQ features the latest 114 dB D/A converters for noise-free output and a new high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears.

Features:

Create top-tier personalized monitor mixes from a 16-channel input stream
114dB D/A converter for noise-free output
High-quality output amplifier stage for improved volume with low-impedance headphones and in-ears
Intuitive control surface with total recall and presets for custom mixes
16 backlit channel select buttons for immediate access
Level and Panorama/Balance control with LED indicators
3-band EQ on main and per channel and main with midband sweep
Main and per-channel Solo and Mute functions
Output limiter for safety
Mono/Stereo line output for connecting to active monitor speakers
Single Ultranet Cat 5e connection powers and sends 16 signals to your personal mixers
Can be daisy-chained or connected to Behringer Powerplay P16-D distribution modules for larger setups
Can be powered with the included external DC power supply
Ultra-low system latency of <1ms
P16-MB (not included) lets you mount it on a mic stand
MIDI input allows real-time remote control from external MIDI devices
Fully compatible with Behringer P16-M personal mixers

Specifications

Network	Ultranet Digital Network Digital Processing A/D Conversion: 24-Bit, 44.1 / 48 kHz Sample Rate Converter type: 24-Bit, Delta-Sigma System Signal: 16 Channels, Plus Bus-Power for P16-HQ Latency: <0.9 ms (from P16-I to P16-HQ) Frequency Response: 20 Hz to 20 kHz (+0/-3 dB) Dynamic Range: 92 dB Typical Cabling Connectors: RJ45 Cables: Shielded CAT5 Cable Length: 246′ / 75 m Max

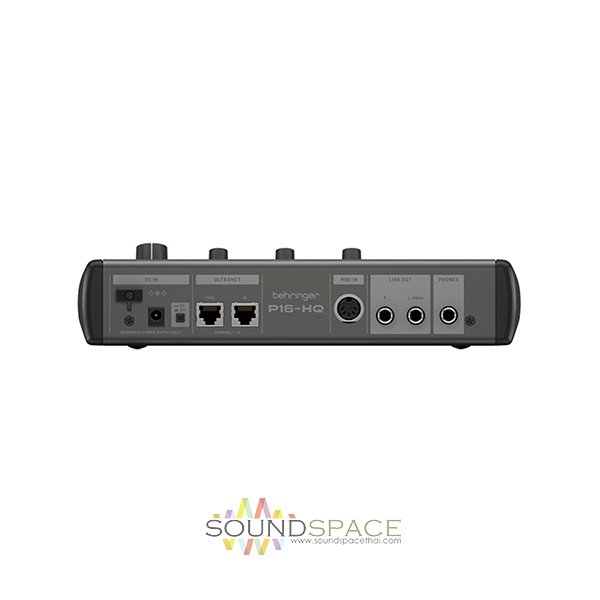

Audio Connectors	Phones: 1/4″ TRS, Stereo Line Out: 2 x 1/4″ TS, Unbalanced Ultranet Thru / In: 2 x RJ45 MIDI In: 5-Pin MIDI Connector
Performance Specifications	Performance Line Out Frequency Response: 20 Hz to 20 kHz (+0/-0.5 dB) THD+N: 0.002 % Typical Residual Noise: -99 dBu Unweighted / -102 A-Weighted Crosstalk L / R: <-75 dB Output Impedance: 1 Kilohms Maximum Output Level: +12.5 dBu at 200 Kilohms load / +2.7 dBu at 600 Ohms LoadPerformance Phones Out Frequency Response: 20 Hz to 20 kHz (+0/-0.1 dB) THD+N: 0.002 % / 0.007 % Typical at 350 mW Output Power Residual Noise: -94.5 dBu Unweighted / -97.5 dBu A-Weighted Crosstalk L / R: <-90 dBMaximum Output Level 50 mW at 600 Ohms Load 100 mW at 300 Ohms Load 400 mW at 30 Ohms Load
Controls	Equalizer Bass: ±12 dB at 100 Hz, Shelving Mid: ±12 dB, Semi-Parametric (100 Hz to 10 kHz, Adjustable) Treble: ±12 dB at 10 kHzOutput Limiter Ratio: ∞: 1 Level: -20 to +15 dBu (Phones)
Power Supply	Power Consumption: 5 W Maximum with Included Power Supply Adaptor Mains Connection: External Power Supply
Dimensions (H x W x D)	2.5 x 10.1 x 5.3″ / 6.4 x 25.7 x 13.5 cm
Weight	1.8 lb / 0.8 kg
