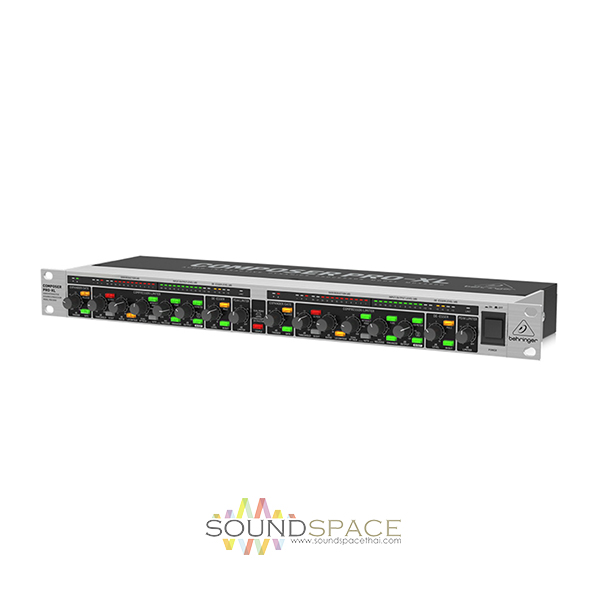

คอมเพรสเซอร์ BEHRINGER MDX2600 V2 Composer PRO-XL
อุปกรณ์ปรับแต่งเสียง คอมเพรสเซอร์ ลิมิตเตอร์ เกต BEHRINGER MDX2600 V2, Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation, เหมาะสำหรับงาน Studio และงาน Live
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿6,000.00
Description
BEHRINGER MDX2600 V2 2-Chanel Composer PRO-XL
อุปกรณ์ปรับแต่งเสียง คอมเพรสเซอร์ ลิมิตเตอร์ เกต BEHRINGER MDX2600 V2, Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation, เหมาะสำหรับงาน Studio และงาน Live
The Behringer MDX2600 V2 Composer Pro XL is powerful, compact and sleek. Thanks to its extensive features the V2 is excellent for a wide range of applications. It features an integrated Dynamic Enhancer, De-Esser and Low-Contour filter, making it the ideal choice for vocal processing.
Hark back to the golden days of recording thanks to Behringer. The MDX2600 features a revolutionary tube simulation that is designed to provide you with the warmth and richness associated with classic circuitry. Just as comfortable in the studio as it is on the road, the Composer Pro XL is the ultimate workhorse for dynamic processing.
Features:
- Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
- Integrated De-esser with switchable male/female voice recognition removes excessive sibilance from your vocal tracks
- IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
- Switchable dynamic Enhancer for brilliant, lively audio even with heavy compression
- IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
- Switchable Tube simulation for the extra warmth and transparency of classic tube circuitry
- Automatically or manually adjustable attack and release times
- Switchable Low contour filter prevents “pumping” due to low-frequency dominated compression
- Stereo couple function with independent output level settings
- Switchable side chain input with monitor function
- Separate 12-segment LED meters for input/output levels and gain reduction
- Dedicated “traffic light” Threshold and De-esser level displays
- Servo-balanced inputs and outputs with ¼” TRS and gold-plated XLR connectors
- Relay-controlled hard bypass switch with auto bypass function in case of power failure
- Internal switch-mode power supply (100 – 240 V~) for noise-free audio and low power consumption
Specifications
Audio Inputs
| Type | XLR and 1/4″ TRS connectors, servo-balanced |
| Impedance | |
| +4 dBu | 50 kΩ balanced, 50 kΩ unbalalanced @ 1 kHz |
| -10 dBV | 50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz |
| Operating Level | +4 dBu / -10 dBV, switchable |
| Max. input level | +22 dBu, balanced and unbalanced |
| CMRR | Typically 60 dB @ 1 kHz |
Audio Outputs
| Type | XLR and 1/4″ TRS connectors, servo-balanced |
| Impedance | 100 Ω balanced, 50 Ω unbalanced @ 1 kHz |
| Max. output level | +21 dBu, balanced and unbalanced |
Sidechain Inputs
| Type | 1/4″ TS connector, unbalanced |
| Impedance | 10 kΩ |
| Max. input level | +20 dBu |
Sidechain Outputs
| Type | 1/4″ TS connector, unbalanced |
| Impedance | 50 Ω |
| Max. output level | +21 dBu |
System Specifications
| Frequency range | 10 Hz to 70 kHz, +0/-3 dB |
| S/N ratio | 115 dB, unweighted |
| THD | 0.02% typ. @ +4 dBu, 1 kHz, unity gain |
| Crosstalk | -90 dB @ 1 kHz |
Expander / Gate Section
| Type | IRC (Interactive Ratio Control) expander |
| Threshold | OFF to +10 dB, variable |
| Ratio | 1:1 to 1:8, variable |
| Attack | < 1 msec / 50 dB, program-dependent |
| Release | SLOW: 100 msec/1 dB
FAST: 100 msec/100 dB, variable |
Compressor Section
| Type | IKA (Interactive Knee Adaptation) compressor |
| Threshold | -40 to +20 dB, variable |
| Ratio | 1:1 to ∞:1, variable |
| Attack / release | Manual or automatic, variable |
| Manual attack time | 0.3 msec/20 dB to 300 msec/20 dB, variable |
| Manual release time | 0.05 sec/20 dB to 5 sec/20 dB, variable |
| Auto characteristic | Wave adaptive compressor |
| Auto attack time | Typically 15 msec for 10 dB, 5 msec for 20 dB, 3 msec for 30 dB |
| Auto release time | Typically 125 dB/sec, program-dependent |
| Output | -20 to +20 dB, variable |
Peak Limiter Section
| Type | IGC (Interactive Gain Control) peak limiter |
| Level | 0 dB to OFF (+21 dBu), variable |
| Level 1 limiter type | Clipper |
| Attack | “Zero” |
| Release | “Zero” |
| Level 2 limiter type | Program limiter |
| Attack | Typically <5 msec, program-dependent |
| Release | Typically 20 dB/sec, program-dependent |
Dynamic Enhancer Section
| Type | IDE (Interactive Dynamic Enhancer) |
| Filter frequency | 2.5 kHz (lower cut-off frequency) |
| Characteristic | High-pass filter (6 dB/oct.) |
| Boost | Max. 28 dB @ 7.5 kHz |
De-Esser Section
| Type | VAD (Voice-Adaptive De-Esser) |
| Filter Frequencies | 8.6 kHz (Female), 7.5 kHz (Male) |
| Filter bandwidth | Program-dependent |
| Level reduction | Max. 15 dB |
Power Supply, Voltage, Current Consumption
| Switch mode power supply | Autorange, 100-240 V~ 50/60 Hz |
| Power consumption | 15 W |
| Mains connector | Standard IEC receptacle |
Dimensions / Weight
| Dimensions (H x W x D) | 44 x 483 x 149 mm (1.7 x 19.0 x 5.9″) |
| Weight | 1.7 kg (3.7 lbs ) |
