เพาเวอร์แอมป์ BEHRINGER KM750 Power Amplifier

Name: เพาเวอร์แอมป์ BEHRINGER KM750 Power Amplifier
Price: 10000.00 THB
Availability: InStock

เครื่องขยายเพาเวอร์แอมป์ BEHRINGER KM750 มีกำลังขับ 2 x 400W into 4 Ohms Stereo, 2 x 200W into 8 Ohms Stereo, 750W into 8 Ohms Bridged, XLR, TRS & RCA Inputs, ATR Technology for Punch & Clarity, Active Cooling on Heatsink, Switchable On-Board Limiter

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿10,000.00

สอบถามและสั่งซื้อสินค้า

Category: เพาเวอร์แอมป์ (Power AMP) Tag: BEHRINGER

Description

Behringer KM750 Professional 750W Stereo Power Amplifier

The KM750 from Behringer is a stereo power amplifier which is capable of delivering 200W into 8 Ohm loads, or 400W into 4 Ohm loads. In bridged-mono mode, it can reach an output power of 750W. The amplifier features Behringer’s ATR technology, which is designed to preserve a quick, tight transient response even at high volume levels.

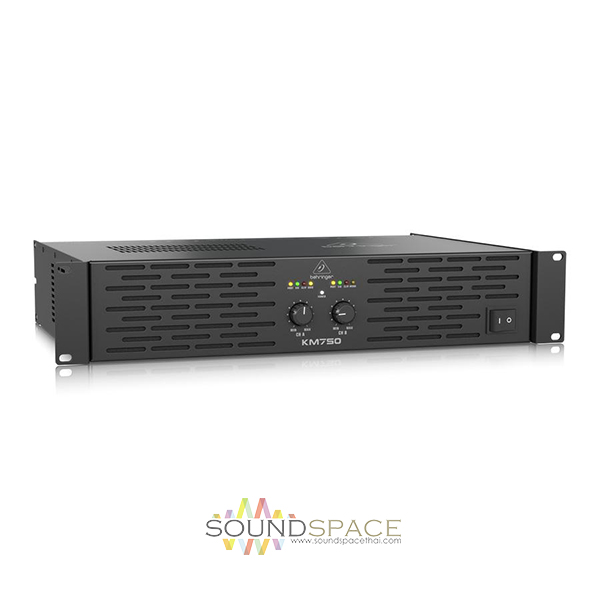

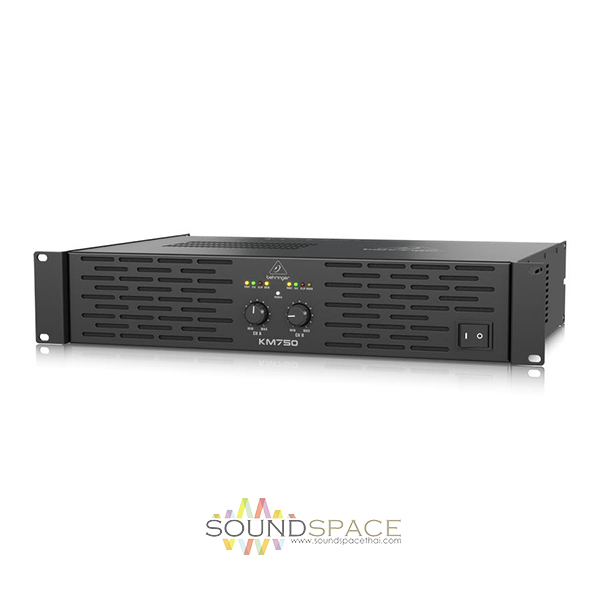

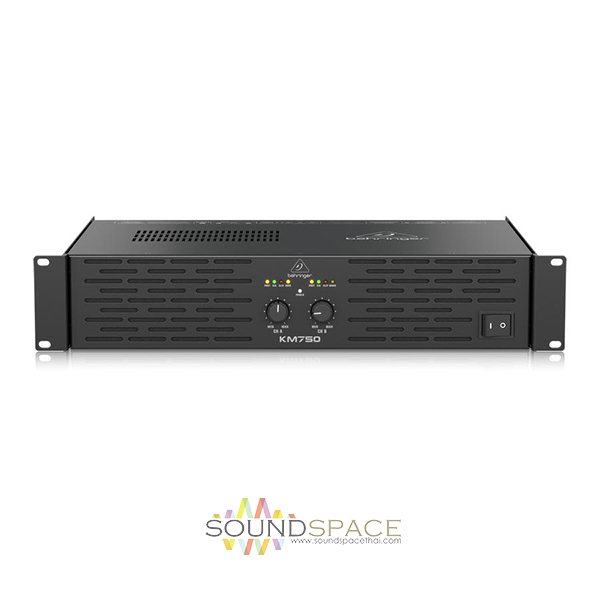

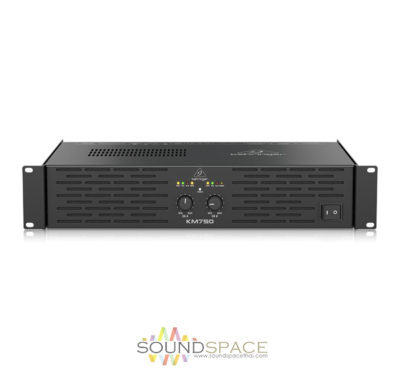

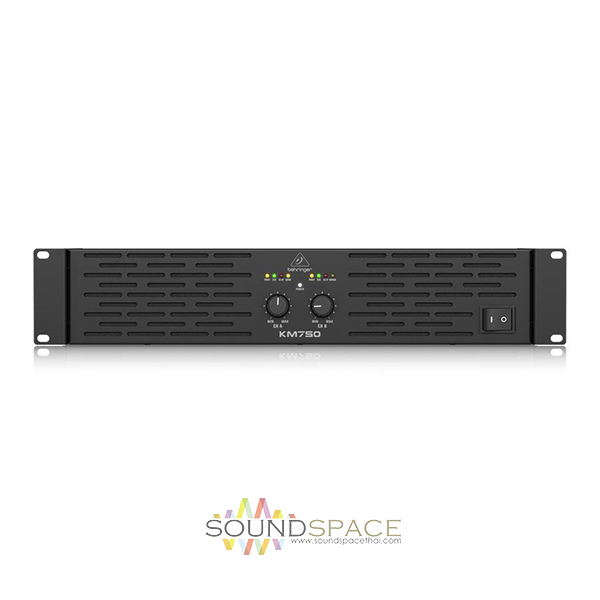

Its front panel controls are simple: two positive-detent gain knobs allow you to control the level of each independent channel. To keep you abreast of the amplifier’s various goings-on, LEDs have been provided for monitoring of power, signal, and overloads.

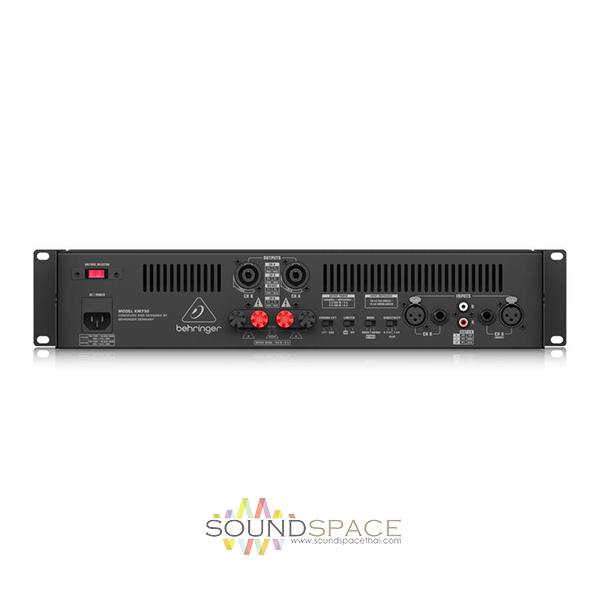

Turn your attention to the back panel and you’ll notice two balanced XLR inputs, as well as two unbalanced 1/4″ TRS jacks and two unbalanced RCA inputs, making this power amplifier compatible with a wide array of audio sources. The amplifier provides two locking speaker connections with touch-proof binding posts, thus supporting the wiring systems of most professional speakers. You’ll also see the selector which switches between mono, stereo, or bridged mono mode, as well as a ground/lift switch and a selector to turn on the built-in limiter.

Features:

2 x 400 Watts into 4 Ohms; 2 x 200 Watts into 8 Ohms; 750 Watts into 8 Ohms (bridge mode)
ATR (Accelerated Transient Response) technology for ultimate punch and clarity
Switchable limiters offer maximum output level with reliable overload protection
Precise power, signal and clip LEDs to monitor performance
XLR, 1/4” TRS and RCA input connectors for compatibility with any source
Professional speaker connectors and “touch-proof” binding posts support most speaker wiring systems
Independent DC and short circuit protection on each channel automatically protects amplifier and speakers
High-current toroidal transformer for ultra-high transient response and absolute reliability
Active cooling on heatsink
“Built-like-a-tank” impact-resistant, all-steel 2U rackmount chassis
Designed and engineered in Germany

Specifications

Output Power
Maximum Output Power	8 Ohms per channel, both channels driven: 200 W 4 Ohms per channel, both channels driven: 400 W 8 Ohms, bridge mode: 750 W

Connectors
Inputs	2 x XLR 2 x 1/4″ TRS 2 x RCA
Input Impedance	XLR: 20 kOhms, balanced 1/4″ TRS: 10 kOhms, unbalanced RCA: 14 kOhms, unbalanced
Outputs	2 x locking-style professional speaker connector, binding post

System
Output Circuit	Class-AB, complementary linear output
Circuit Protection	Short circuit current, DC fault, AC fuse, limiter, thermal cut
Distortion	< 0.02% (8 Ohms @ 50% max. power output)
Damping Factor	> 245 @ 8 Ohms
Frequency	20 Hz to 20 kHz, +0/-0.5 dB @ -10 dB below rated output power 10 Hz to 80 kHz @ -3 dB
Signal-to-Noise Ratio	> 100 dB (unweighted, 20 Hz to 20 kHz)
Voltage Gain	32 dB @ level control max
Input Sensitivity	0.77 V / 26 dB / 1.4 V, switchable @ level control max
