มิกเซอร์ AUSTRALIAN-MONITOR AMIS120 XL Mixer Amplifier
เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 120XL, Mixer Amplifier, 120W, 8 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿25,000.00 ฿21,200.00
Description

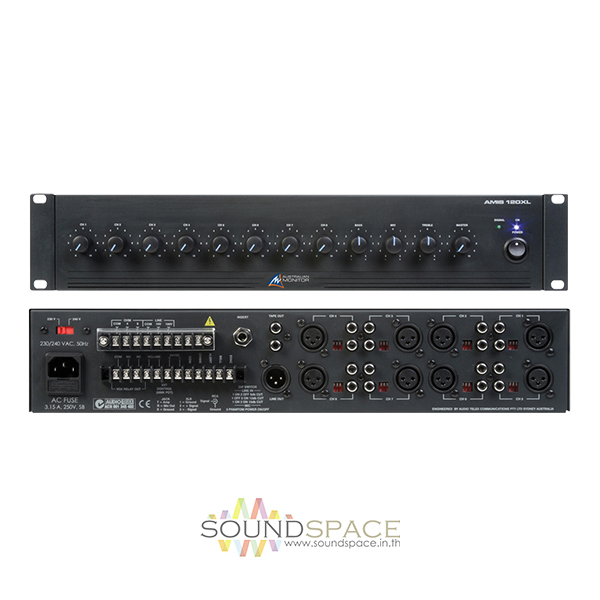

Australian MonitorAMIS120 XL 120 watts Mixer Amplifier
เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 120XL, Mixer Amplifier, 120W, 8 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU
The AMIS120XL offers all the reliability of the famous AMIS series amplifiers with 8 universal inputs as well as 3 stage (defeat able) Vox priority, Vox triggered output relay, on board tone generator, 3 stage line input sensitivity switching and a wide range of additional features. The AMIS120XL really is the mixer amp with the lot.
Features:
- 100V, 70V and 4, 8 ohm outputs
- Vox muting from channels 1, 2 and 3 (selectable)
- Vox triggered relay output
- Tape Output (350mV @ 10K ohms) and balance output (700mv)
- Bell, Pre Announce, Evac and Alert tones in-built (rear panel activation)
- 15V phantom power on all microphone inputs (defeat able per channel by rear switch)
- Insert point for connection of AMIS EQ or other processors
- VCA remote master level control
- Overdrive protection and internal limiting
- Signal Present LED
- 240VAC/24VDC operation
- 100 volt, 70 volt 4 or 8 ohm operation
Specifications
AUSMON AMIS120 XL
| Output Power | 120 watt |
| Damping Factor | Not Specified by Manufacturer |
| Input Sensitivity | Mic: 1mV @ 200 ohms
Aux: 150mV @ 47 k ohms with Selectable 9, 12, and 15dB Pads |
| Input Impedance | Mic: 200 ohms
Aux: 47 k ohms |
| Maximum Load | 40 ohms @ 70V |
| Frequency Response | 60Hz – 23kHz |
| Signal-to-Noise Ratio | -74dB |
| Total Harmonic Distortion (THD) | 0.5% |
| Input Connections | 8 x Mic/Aux Universal Inputs with XLR Female and Dual RCA Jacks
1 x 600 ohm Transformer Balanced Telephone Paging Input |
| Output Connectors | 70V, 4 and 8 ohm Speaker
350mV Tape Balanced 700mV Line |
| Controls Front Panel | 8 x Channel Gain Controls
1 x Bass Control 1 x Mid Control 1 x Treble Control 1 x Master Gain Control |
| Controls (Rear) | VCA Strip
8 x Dipswitches Vox Relay Output Phantom Power Switch |
| Indicators | Front-Panel LED |
| Cooling | Not Specified by Manufacturer |
| Power Consumption | 250W |
| Dimensions (HxWxD) | 3.5 x 19 x 13″ (89 x 483 x 330 mm) |
| Weight | 26.5 lbs (12 kg) |
| Specialties | Built-In 4 Tone Generator, VOX Muting |
