มิกเซอร์ AUSTRALIAN-MONITOR AMC+30 Mixer Amplifier

เครื่องขยายเสียงระบบเสียงตามสาย AUSMON AMC+30 Mixer Amplifier, 30W. 4 x dual balanced mic/line inputs. 100V, 70V & 4Ω outputs. 230VAC. 2RU, Bass and treble tone controls, Master mixed output level control

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿10,200.00 ฿8,600.00

สอบถามและสั่งซื้อสินค้า

Description

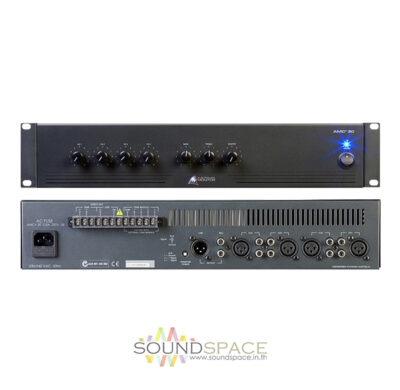

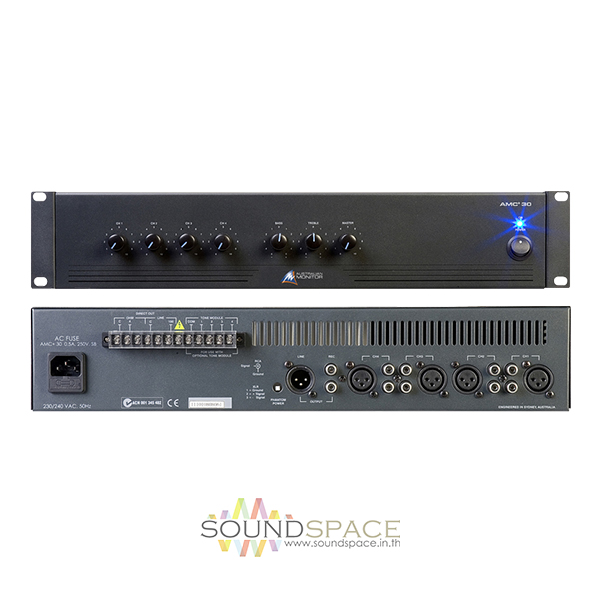

Australian MonitorAMC+30 30 watts Mixer Amplifier

เครื่องขยายเสียงระบบเสียงตามสาย AUSMON AMC+30 Mixer Amplifier, 30W. 4 x dual balanced mic/line inputs. 100V, 70V & 4Ω outputs. 230VAC. 2RU, Bass and treble tone controls, Master mixed output level control

The Australian Monitor AMC+30 takes the rugged reliability of Australian Monitor products and delivers the same high quality audio reinforcement, in a low cost, 2 rack unit package. The AMC+30 has 4 XLR microphone and dual RCA line inputs with input 1 having priority over inputs 2-4 (defeat able) and global 12VDC phantom power.

Features:

  • 2RU chassis
  • Four input channels, each with a balanced XLR mic input and a stereo line RCA input
  • Dual mono RCA tape output and a line-level XLR output
  • Screw terminal barrier strip with 4 Ohm and 70V outputs
  • Individual level controls for each input channel
  • Bass and treble tone controls
  • Master mixed output level control
  • Vox muting feature gives channel 1 priority over the other channels
  • Built-in overload and overdrive protection
  • Screw terminal strip for installing an optional tone module (sold separately)

Specifications

AUSMON AMC+30

Power Output 30W (0.5% THD, 1kHz)
Frequency Response Power Bandwidth (-3dB +1dB): 75Hz-20kHz
Output Regulation 93%
Sensitivity Mic Input: 1mV @ 200 Ohms

Aux Input: 0.5V @ 100 kOhms

Signal to Noise Ratio > 75dBr
Connectors 1 x Power Input

4 x XLR Mic Inputs

4 x RCA Phono Line Inputs

1 x RCA Tape Output

1 x XLR Line Output

1 x Screw Terminal Barrier Strip

1 x Tone Module Connector Strip

Indicators 1 x Power LED
Fuses Mains (115V): 1A

Mains (230): 0.5A

DC: 1.6A

Current Draw 230V

Full Power: 0.35A

1/3 Power: 0.23A

1/8 Power: 0.17A

Idle: 0.08A



115V

Full Power: 0.73A

1/3 Power: 0.48A

1/8 Power: 0.35A

Idle: 0.17A

Thermal Control (W)

Full Power: 38W

1/3 Power: 33W

1/8 Power: 26W

Idle: 11W



(Btu/Hr)

Full Power: 130

1/3 Power: 113

1/8 Power: 90

Idle: 38

Dimensions (WxHxD) 19 x 3.5 x 11.1″ (482 x 88 x 281mm)
Weight 14.7 lbs (6.7kg)
