เพาเวอร์แอมป์ AUSTRALIAN-MONITOR AM41P Power Amplifier

เครื่องขยายเสียงระบบประกาศ AUSTRALIAN-MONITOR AM41P 1RU มีกำลังขับ 4×100 วัตต์/4 Ohms, 70 volt/100 volt/outputs Class D, 6 pin output screw terminal per channel, Voltage controlled attenuation (VCA)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿49,300.00 ฿41,900.00

สอบถามและสั่งซื้อสินค้า

Description

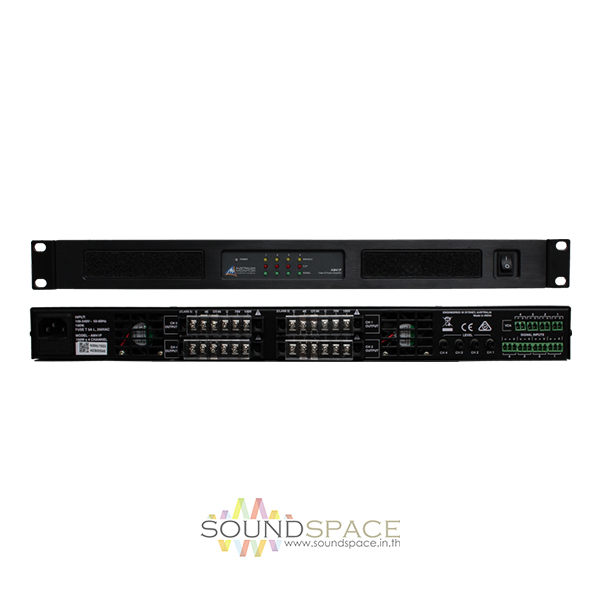

AUSTRALIAN-MONITOR AM41P Power Amplifier

เครื่องขยายเสียงระบบประกาศ AUSTRALIAN-MONITOR AM41P 1RU มีกำลังขับ 4×100 วัตต์/4 Ohms, 70 volt/100 volt/outputs Class D, 6 pin output screw terminal per channel, Voltage controlled attenuation (VCA)

The Australian Monitor AM41P is a 1 RU four channel Class D power amplifier design. The AM41P delivers 100 watts per channel into 100 volt, 70 volt or 4 ohms. The AMD41P features front panel signal presence, clip and fault indication per channel, rear panel level controls and remote master VCA per channel.

Features:

  • Class-D amplification
  • 4Ω/70V/100V Operation
  • Balanced inputs
  • Output Limiter
  • Ground Lift
  • Bridge mode
  • Voltage controlled attenuation (VCA)
  • Protect/Clip and Signal LED indicators
  • Power factor corrected universal switch mode power supply • Efficient front to back cooling
  • Dual, twin speed axial fans.
  • 6 pin output screw terminal per channel
  • Custom designed, 1RU heavy-duty steel chassis
  • Front rack mount ears
  • Symmetrical layout – even weight distributio

Protection Features:

  • Short-circuit protection
  • Suppression of inrush current at mains turn-on • Internal, independent DC supply rail fuses
  • Radio-frequency interference suppression

Specifications

AUSTRALIAN-MONITOR AM41P

Model AM21P AM22P AM41P AM42P
Topology Class-D Class-D Class-D Class-D
Channels 2 2 4 4
Power Output (per channel)

Single Channel 4Ω 4Ω (All Driven) Bridged 8Ω
Single Channel 100V 100V (All Driven)

120W 110W 230W 120W 110W 210W 200W 400W 210W 200W 120W 110W 230W 120W 110W 210W 200W 400W 210W 200W
Frequency Response 4Ω 20Hz – 25kHz 20Hz – 25kHz 20Hz – 25kHz 20Hz – 25kHz
Frequency Response 100V 100Hz – 16kHz 100Hz – 16kHz 100Hz – 16kHz 100Hz – 16kHz
Signal to Noise Ratio > 95 dBr > 95 dBr > 95 dBr > 95 dBr
THD+N. 4Ω, 8Ω. 1kHz < 0.2% < 0.2% < 0.2% < 0.2%
THD+N. 100V. 1kHz < 0.3% < 0.3% < 0.3% < 0.3%
Input Connectors Two 1×3 terminal plug (3.81mm) Two 1×3 terminal plug (3.81mm) Four 1×3 terminal plug (3.81mm) Four 1×3 terminal plug (3.81mm)
Output Connectors 6 pin Screw Terminal per channel 6 pin Screw Terminal per channel 6 pin Screw Terminal per channel 6 pin Screw Terminal per channel
AC Input 100-240Vac, 50-60Hz 100-240Vac, 50-60Hz 100-240Vac, 50-60Hz 100-240Vac, 50-60Hz
Dimensions (W x D x H) 483mm x 448mm x 44mm (19” x 17.63” x 1.73”) 483mm x 448mm x 44mm (19” x 17.63” x 1.73”) 483mm x 448mm x 44mm (19” x 17.63” x 1.73”) 483mm x 448mm x 44mm (19” x 17.63” x 1.73”)
Shipping Dimensions (W x D x H) 545mm x 515mm x 105mm (21.46” x 20.28” x 4.13”) 545mm x 515mm x 105mm (21.46” x 20.28” x 4.13”) 545mm x 515mm x 105mm (21.46” x 20.28” x 4.13”) 545mm x 515mm x 105mm (21.46” x 20.28” x 4.13”)
Net Weight 7.4 Kg (16.31 lbs) 7.8 Kg (17.20 lbs) 9.42 Kg (20.77 lbs) 11.3 Kg (24.91 lbs)
Shipping Weight 9.5Kg (20.94 lbs) 9.5Kg (20.94 lbs) 12.6Kg (27.78 lbs) 12.6Kg (27.78 lbs)
Mounting 1 RU 1 RU 1 RU 1 RU
Colour Black Black Black Black
