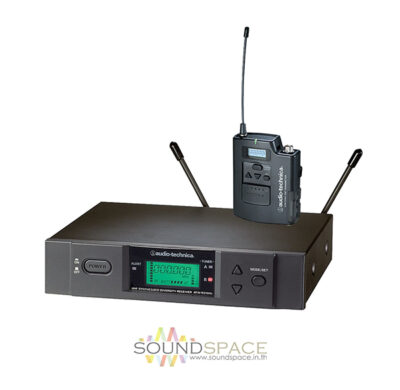

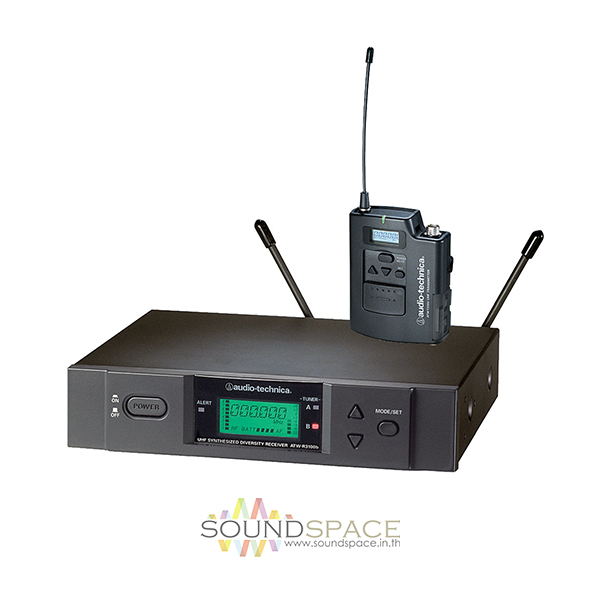

ไมโครโฟนไร้สาย audio-technica ATW3110b System 3000

ไมโครโฟนไร้สายแบบ Body Pack 2.4 GHz ATW3110b System 3000 ประกอบด้วย เครื่องรับสัญญาณ ATW-R310b Receiver เครื่องส่งสัญญาณ ATW-T310b Body-Pack Transmitter

ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาชุดละ…

฿26,000.00 ฿22,100.00

สอบถามและสั่งซื้อสินค้า

Description

Audio-Technica ATW-3110b Wireless UHF Body-Pack Microphone System

ไมโครโฟนไร้สายแบบ Body Pack 2.4 GHz ATW3110b System 3000 ประกอบด้วย เครื่องรับสัญญาณ ATW-R310b Receiver เครื่องส่งสัญญาณ ATW-T310b Body-Pack Transmitter

The Audio-Technica ATW-3110b Wireless Body-Pack System is a frequency agile, true-diversity system that includes the ATW-R310 receiver and ATW-T310 UniPak transmitter. The absence of a microphone allows users the freedom to choose any of the Audio-Technica UniPak compatible microphones or cables as desired.

The ATW-R310b receiver features frequency adjustable UHF reception, allowing access of up to 996 user selectable channels. Diversity reception allows 2 built-in independent receivers to relay on a single frequency for the strongest possible reception. The rear panel reveals both unbalanced 1/4″ phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The receiver also features a ground lift switch, convenient in settings where bad power feeds result in ground hum and noise on the output stage.

The ATW-T310b body-pack transmitter features Audio-Technica’s unique UniPak input connector. The input conveniently accepts both line and microphone level signals (adjustable) allowing instrument signals as well as microphone signals. An assortment of compatible microphones and instrument cables are available from Audio-Technica. The lightweight transmitter operates on 2 AA alkaline batteries for up to 6 hours (High) and 8 hours (Low).

Features:

  • Band I : 487.125 to 506.500MHz
  • ATW-R310b Receiver
  • ATW-T310b Body-Pack Transmitter
  • 1001 Frequencies
  • Switchable Output Power

Specifications

System
Type of System UHF Frequency Agile Body-Pack
RF Carrier Frequency Range Band I: 482.000 to 507.000 MHz
Approx. Working Range 300 feet (91.44m)
Overall Frequency Response 70Hz-15kHz
Signal-to-Noise Ratio 110dB at 35kHz deviation (IEC-weighted), maximum modulation 75 kHz
# Of Channels 1001 Channels
Receiver
Type of Receiver Dual independent receivers, automatic-switching diversity
Type of Outputs Unbalanced: 1/4″ TS (“mono”) phone jack
Balanced: XLRM-type
Headphone Monitoring No
Power Requirements 120VAC 60 Hz; 12-18VDC, 500mA, center positive, with external supply
Battery Type/Approx. Life AC Powered Only
Display Back-Lit LCD Display & Battery / Signal Status LED
Mounting Options Table Surface / Rack Mountable rack ears included
Antenna Type BNC Flexible UHF
Dimensions (WxDxH) 8.27 x 6.47 x 1.73″ (210.0 x 164.4 x 44mm)
Weight 1.1kg (38.8oz)
Transmitter
Type of Transmitter Frequency Agile Body-Pack
Type of Input Connector High Impedance / Low Impedance / Bias UniPak Connection
Type of Microphone microphone not included with this system
Polar Pattern not applicable
Interchangeable Mic Heads Various AKG microphones and cables featuring a UniPak connection
Battery Type/Approx. Life (2) 1.5v AA Alkaline not included
High: 6 hours (alkaline)
Low: 8 hours (alkaline)
Depending on battery type and use pattern
Mute Switch Power / Mute switch dual function
RF Output Power High: 30mW, Low: 10mW (switchable), at 50 ohms
Antenna Type BNC Flexible UHF
Display Back-Lit LCD Display & Battery / Signal Status LED
Dimensions (WxHxD) 2.60 x 3.43 x 0.94″ (66.0 x 87.0 x 24.0mm)
Weight 2.9 oz (81 grams) without batteries
