ชุดมิกเซอร์ดิจิตอล ALLEN & HEATH dLIVE C1500+CDM32 Pack

ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก ALLEN & HEATH dLIVE C1500 Digital Mixer + CDM32 Stage Box Pack, ประกอบด้วย
-มิกเซอร์ dLIVE C1500 1 ตัว Control Surface with 12″ Touchscreen, 6 XLR Inputs/Outputs, AES Digital I/O, and Connection Hub  12 Faders, 19 SoftKeys

-สเตจบ๊อก CDM32 1 ตัว 128-channel, 16 Outputs, 16 FX Slots, and DSP, 64-bus Digital Snake with 32 Mic Preamps

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿390,000.00

สอบถามและสั่งซื้อสินค้า

Description

ALLEN & HEATH dLIVE C1500 Digital Mixer + CDM32 Stage Box Pack

ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก ALLEN & HEATH dLIVE C1500 Digital Mixer + CDM32 Stage Box Pack, ประกอบด้วย
มิกเซอร์ dLIVE C1500 1 ตัว
Control Surface with 12″ Touchscreen, 6 XLR Inputs/Outputs, AES Digital I/O, and Connection Hub  12 Faders, 19 SoftKeys

-สเตจบ๊อก CDM32 1 ตัว 128-channel, 16 Outputs, 16 FX Slots, and DSP, 64-bus Digital Snake with 32 Mic Preamps

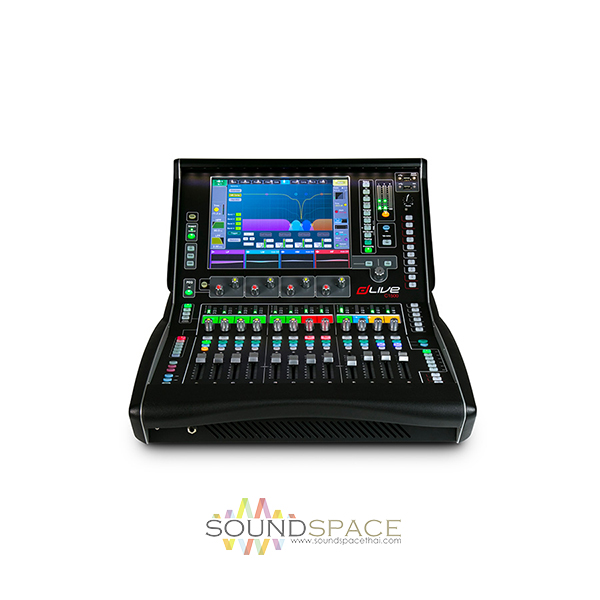

Digital Mixer dLIVE C1500

The ALLEN & HEATH C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

Features:

  • 12 faders, Fully assignable layout – 72 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • 12” capacitive touchscreen, Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view, Configurable widget areas for Scenes, meters, FX and more
  • 19 assignable SoftKeys, Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering, Daylight visibility
  • USB stereo recording and playback, 6 XLR mic/line in, 6 XLR line out
  • 1 digital st AES3 in, 1 digital st AES3 out
  • Connection hub, GigaACE gigabit link to MixRack
  • DX link for I/O expansion, I/O Port – 128 ch 96 kHz
  • 2x Network ports, Wordclock BNC I/O, Video output

Stage Box dLIVE CDM32

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

Features:

  • 2 x 16 digital MixRack with 16 stereo effects returns
  • XCVI Core delivers unprecedented performance
  • DEEP technology provides a vast assortment of effects
  • Variable bit depth yields excellent precision and noise performance
  • 96-bit accumulator offers incredible headroom
  • Class leading, ultra-low 0.7ms of latency
  • 2 128-channel option I/O slots support Dante, Waves SG, ACE, and MADI
  • ME-1 port for connecting a personal monitoring system
  • Enjoy fader-free mixing from your laptop or touch tablet

Specifications

Digital Mixer dLIVE C1500

Type:   dLive Control Surface Channels:   12 faders with six layers of mixing
Inputs –    Mic Preamps:6 x XLR (mic/line) Phantom Power:   6 channels
Inputs – Digital:1 x XLR (AES/EBU) Outputs – Digital:   1 x XLR (AES/EBU)
Data I/O:   RJ45 (DX5 link), RJ45 (GigaACE link), 2 x Network ports USB:   2 x Type A
Computer Connectivity:    USB (2 x 2) Busses/Groups:   6 x XLR (line out)
I/O Expansion Slots:     1 x Expansion slot (iLive/GLD option cards) Headphones:     1 x 1/4″, 1 x 1/8″
Word Clock:     1 x BNC In/Out Faders:    12
EQ Bands:   4-band parametric, Graphic EQ Effects:    16 RackExtra FX
Features:    Touch screen features pinch, swipe, drag’n drop gestures, 19 assignable soft keys, video out Screen:     12″ touchscreen
Rackmountable:    Yes Height:    12.8″
Depth:     26.2″ Width:     19″
Weight:   39.7 lbs.

Stage Box dLIVE CDM32

Type: MixRack with dLive Processing Core
Channels: 128
Inputs – Mic Preamps: 32 x XLR (mic/line)
Phantom Power: 32 channels
Outputs – Digital: 1 x Ethernet (ME-1 port)
Outputs – Other: 16 x XLR (line out)
Busses/Groups: 64 bus architecture (groups, FX, aux, matrix, mains)
Data I/O: 2 x RJ45 (DX link), RJ45 (GigaACE link), 2 x Network ports
Word Clock: 1 x BNC In/Out
I/O Expansion Slots: 1 x I/O Port expansion
Headphones: 1 x 1/4″
EQ Bands: RackExtra 4-band dynamic EQ
Effects: RackExtra FX portfolio (reverbs, delays, modulation and more)
Signal Processing: RackExtra compressors
Features: LR, LCR and 5.1 mains mode
Software: dLive Editor
Rackmountable: Yes
Height: 5U (8.7″)
Depth: 12.2″
Width: 19″
Weight: 22 lbs.
