มิกเซอร์ AUSTRALIAN-MONITOR AMIS120 Mixer Amplifier

เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 120, Mixer Amplifier, 120W, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿21,400.00 ฿17,100.00

สอบถามและสั่งซื้อสินค้า

Description

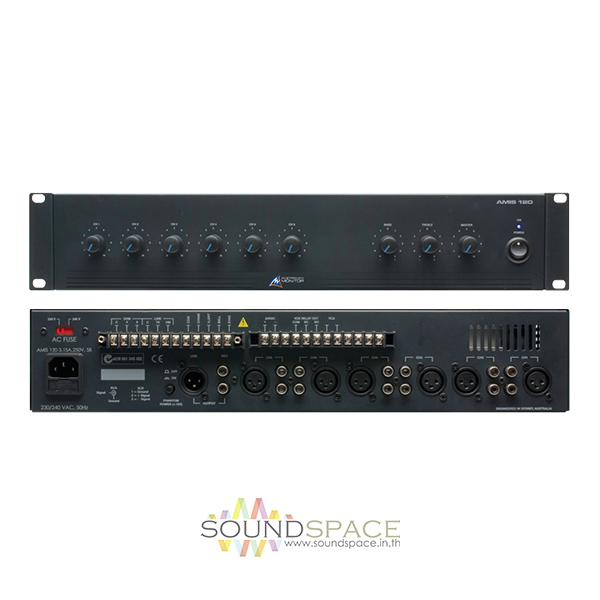

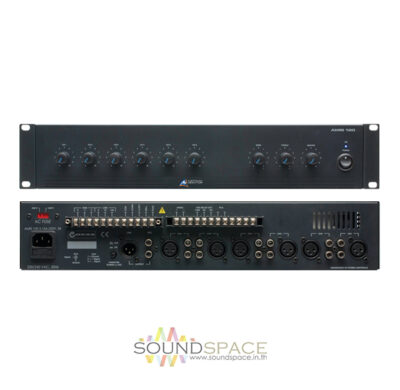

Australian MonitorAMIS120 120 watts Mixer Amplifier

เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 120, Mixer Amplifier, 120W, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU

The AMIS120 has been the most successful and reliable amplifiers from Australian Monitor for over 6 years. We have now made our most popular amplifiers even more contractor friendly with the addition of two extra balanced XLR microphone/dual RCA line inputs.

The AMIS120 still boasts the same reliability and excellent feature set including vox muting on channels 1 and 2 (defeat able), Bell, Pre Announce, Evac and Alert tones on board, Vox triggered output relay, VCA master level control, 15 VDC phantom power and mains or 24DVC operation. Now with more inputs available they offer even greater flexibility for commercial audio installations.

Features:

  • 120 watt
  • 2 RU
  • Vox muting on channels 1 and 2 (defeat able)
  • Bell, Pre Announce, Evac and Alert tones on board
  • Vox triggered output relay
  • VCA master level control
  • 15 VDC phantom power
  • Mains or 24DVC operation

Specifications

AUSMON AMIS120

Output Power 120 watt
Damping Factor Not Specified by Manufacturer
Input Sensitivity Mic: 1mV @ 200 ohms

Aux: 150mV @ 47 k ohms

Input Impedance Mic: 200 ohms

Aux: 47 k ohms

Maximum Load 40 ohms @ 70V
Frequency Response 60Hz – 23kHz
Signal-to-Noise Ratio -74dB
Total Harmonic Distortion (THD) 0.5%
Input Connections 4 x Mic/Aux Universal Inputs with XLR Female and Dual RCA Jacks

1 x 600 ohm Transformer Balanced Telephone Paging Input

Output Connectors 70V, 4 and 8 ohm Speaker

350mV Tape

Balanced 700mV Line

Controls Front Panel 4 x Channel Gain Controls

1 x Bass Control

1 x Treble Control

1 x Master Gain Control

1 x 6 Speaker Zone Selector

1 x All Call Selector

1 x Pre-Announce Defeat Switch

Controls (Rear) Phantom Power Switch
Indicators Front-Panel LED
Cooling Not Specified by Manufacturer
Power Consumption 250W
Dimensions (HxWxD) 3.5 x 19 x 13″ (89 x 483 x 330 mm)
Weight 26.5 lbs (12 kg)
Specialties Built-In 4 Tone Generator, VOX Muting
