เครื่องขยายเสียงพกพาขนาดเล็ก Powersoft NOTA 142 Ultra Compact PoE Amplifier, Class-D Amplifier มีกำลังขยาย 2x140W 4 Ohms 2x70W 8 Ohms, Integrated DSP, PoE/PoE+ Powered, USB -C Connectivity, Auto Setup, Power Sharing, ควบคุมผ่านเครือข่าย

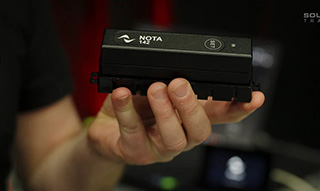

NOTA 142 is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern.

Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data.

With its modular design and flexibility, NOTA seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.

Features:

• PoE/PoE+ Integration Enables power and data transmission over Ethernet, simplifying installation and reducing wiring complexity.
• Compact & Space-Saving Design Highly compact form factor, ideal for installations with limited space, ensuring easy integration in tight environments.
• Optimized Performance Delivers 140 W power across two channels, ensuring high performance considering its compact form factor.
• Auto Setup Automatically measures the impedance curve of connected speakers and applies a high-pass filter in order to optimize sound quality and preserve the speakers.
• Onboard DSP Includes built-in DSP, offering audio control, speaker health monitoring, and system optimization.
• Control Options Compatible with ArmoníaPlus software and third-party software products through the available APIs for easy control.
• USB Connectivity Features a USB-C port for expanding systems by connecting external multimedia devices and acting as an USB to AES67 converter, enhancing system flexibility.
• AES67 Support Native support for the AES67 standard, enabling easy AoIP integration with other networked systems.
• Cloud Monitoring With Verso Gateway, the amplifier supports cloud monitoring via MyUniverso, allowing for real-time system diagnostics and control from anywhere.

The post เพาเวอร์แอมป์ Powersoft NOTA 142 Ultra Compact PoE Amplifier appeared first on soundspacethai.com.

เครื่องขยายเสียงสำหรับงาน Installation d&b audiotechnik D90 Mobile specific four channel amplifier 4x5400W 4 Ohms, 2700W 8 Ohms, Operating and Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel, Milan-enabled

The D90 amplifier represents a new performance level of four channel Class D amplifiers, purposely designed to meet vital requirements for touring and rental productions companies, where high flexibility with system design and production needs are imperative.

With key features such as maximum output voltage, digital signal processing capabilities, and the AutoStandby and AutoWakeup, the D90 amplifier reduces the overall power consumption of the system.

The D90 incorporates up to sixteen input channels with eight Milan audio inputs, four analogue inputs and four AES3 channels. It also incorporates comprehensive loudspeaker management, switchable filter functions, and definable equalization.

The D90 amplifier has a dynamic range of 119 dB (unweighted) and is designed to drive high voltage d&b loudspeakers while providing extensive protection capabilities.

The user interface of the amplifier consists of a 4.3″ (480 x 272 px) colour touchscreen in conjunction with a digital rotary encoder providing device configuration and enhanced status monitoring information.

The D90 amplifier features a flexible Fallback structure, ensuring the transmission of a secondary signal when required. Remote control and full system integration are realized using the d&b ArrayCalc simulation software and R1 Remote control software.

Features:

• High voltage output suitable for driving all d&b systems
• Increases overall system efficiency
• Energy-efficient for minimal ecological impact
• Enhanced DSP capabilities accommodates future system architecture

The post แอมพลิฟายเออร์ d&b audiotechnik D90 4-Channel Amplifier appeared first on soundspacethai.com.

เครื่องขยายเสียงสำหรับงาน Installation d&b audiotechnik D40 Mobile specific four channel amplifier 4x2400W 4 Ohms, 2000W 8 Ohms, Operating and Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel, Milan-enabled

This four channel Class D mobile amplifier provides the power density required for high-efficiency d&b systems including the KSL System, V-Series, Y-Series and T-Series. The D40 incorporates comprehensive loudspeaker management, switchable filtering functions as well as user definable equalization and delay capabilities.

Onboard enhanced energy saving features, power efficiency and Automatic Wake up enable you to save on resources and meet environmental responsibility requirements. The D40 incorporates up to 16 input channels with eight Milan audio inputs, four analogue inputs, and four AES3 channels.

The D40 utilizes a switch mode power supply with automatic mains range selection and active Power Factor Correction (PFC) to produce a clean current draw and ensure stable and efficient performance under adverse mains conditions.

Access to the d&b Remote network is via Ethernet using the Open Control Architecture protocol (AES70 / OCA). The D40 is controlled using the integrated web interface, which enables access via a browser, or using the d&b R1 Remote control software.

For applicable d&b loudspeakers, d&b LoadMatch enables the D40 amplifier to preserve tonal balance when cable lengths of up to 70 m (230 ft) are used.

Features:

• High voltage output suitable for driving applicable d&b loudspeakers, including the KSL System
• Increases overall system efficiency
• Advanced voltage management
• Energy-efficient for minimal ecological impact
• Enhanced DSP capabilities accommodates future system architecture

The post แอมพลิฟายเออร์ d&b audiotechnik D40 4-Channel Amplifier appeared first on soundspacethai.com.

แอมพลิฟายเออร์สำหรับงาน Installation d&b audiotechnik 40D 4-Channel Amplifier 4x2400W 4 Ohms, 2000W 8 Ohms, Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel, 12 configurable GPIOs (8x GPI, 4x GPO)

The 2 RU 40D amplifier provides the power density required for installation purposes while the powerful signal processing extends the level of functionality of the on-board features.

This device contains extended input management functionalities with separate Input Gain control for each input channel, General Purpose Inputs/Outputs (GPIO) and a General Fault connector. Enhanced system status monitoring functions such as Input and Load monitoring ensure suitability in an emergency situation.

The user interface of the amplifier consists a 4.3″ color touchscreen providing comprehensive information of the device configuration and enhanced status monitoring. The DSP integrated within the 40D incorporates comprehensive loudspeaker management, switchable filtering functions as well as user definable equalization and delay capabilities.

The user defineable equalizer features two independent 16-band EQ groups within each channel, providing parametric, notch, shelving and asymmetric filters as well as a graphic EQ (via the d&b R1 Remote control software). The delay capability covers a range of up to 10 s. All loudspeaker specific functions such as CUT, HFA, HFC, THC or CPL are available. The DSP unit of the amplifier has a fixed latency of 0.3 ms.

All functions of the 40D are configured via the d&b Remote network via Ethernet (AES70/OCA). To operate the device, the d&b R1 Remote control software is required. The initial configuration of the network parameters after a factory reset can also be done via web browser.

For applicable loudspeakers, d&b LoadMatch enables the 40D amplifier to electrically compensate for the properties of the cable used to connect the loudspeakers to the amplifier output. This function which covers a bandwidth of up to 20 kHz preserves the tonal balance when cable lengths of up to 70 m (230 ft) are used.

Due to its design LoadMatch does not require additional wires and is therefore applicable with any connector type used. To provide optimum compensation, cable length and cross-sectional data as well as the number of loudspeakers connected to the amplifier channel can be entered on the amplifier.

Features:

• High voltage output suitable for driving applicable d&b loudspeakers, including the KSLi System
• Information-rich monitoring display, including device status, speaker setups, Input and Load monitoring, GPIO status, fault indication and more
• Dynamic range (SNR) digital input 116 dB unweighted
• Enhanced energy saving features (Eco mode)
• Eight GPI and four GPO plus a separate general FAULT connector
• Flexible Fallback structure, ensuring the transmission of a secondary signal when required
• Supports d&b ArrayProcessing which improves tonal balance and coverage across the audience area
• OCA/AES70 protocol for easy integration into third party environments using the R90 Touchscreen remote control
• Broad variety of third party integration including Beckhoff, Q-SYS, Crestron, AMX, MediaMatrix

The post เครื่องขยายเสียง d&b audiotechnik 40D 4-Channel Amplifier appeared first on soundspacethai.com.

ลำโพงซับเบส d&b audiotechnik สำหรับงานติดตั้ง d&b 27S-SUB ในตระกูล xS-Series เป็นตู้ซับเบสแบบ Cardiod Subwoofer ที่มีขนาดดอกลำโพง 18″ 1 ดอก และ 12. 1 ดอก, ทนกำลังขับ 500/2000 W (RMS/peak 10 ms) impedance 6 Ω, Max SPL 131 dB ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz

The d&b 27S-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. It can be used stand-alone, stacked or individually flown.

The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific cardioid subwoofer
• 15″ driver with neodymium magnet front
• 12″ driver with neodymium magnet rear
• Power Handling Capacity (RMS/Peak 10 Ms) 500/2000 W
• ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz
• Nominal impedance 6 Ω, Max SPL 131 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 27S-SUB. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.

The post ลำโพงซับเบส d&b audiotechnik xS-Series 27S-SUB (1×15″ 1×12″) appeared first on soundspacethai.com.

ลำโพงซับเบส d&b audiotechnik สำหรับงานติดตั้ง d&b 21S ในตระกูล xS-Series เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 21″ driver with neodymium magnet, ทนกำลังขับ 650/2600 W (RMS/peak 10 ms) impedance 4 Ω, Max SPL 132 dB ตอบสนองความถี่ (–5 dB standard) 35 Hz – 105 Hz, Max SPL 135 dB

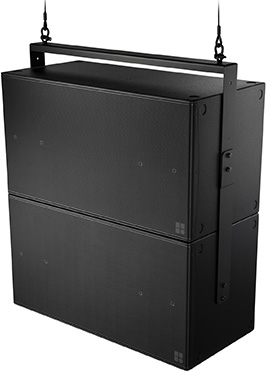

The 21S-SUB is a high performance subwoofer for use with the xS-Series and xA-Series loudspeakers and is intended for a wide range of permanently installed applications. The cabinet houses a single long excursion 21″ driver in a bass-reflex design. The large, specially shaped reflex port enables the 21S-SUB to achieve high Sound Pressure Levels from a cabinet with a small footprint.

When operated in INFRA mode, the 21S-SUB can be used to complement other d&b subwoofers by extending the frequency response of the system down to 33Hz. The 21S-SUB can be ground stacked or flown in either orientation. It can be flown individually or in a cluster of two cabinets.

The enclosure is constructed from marine plywood with an impact resistant black paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top, bottom and rear panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware.

The Weather Resistant option enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable. The 21S-SUB can also be supplied in any RAL colour. This Special Colour option can be provided for rigging accessories.

Features:

• Installation specific high performance subwoofer with compact footprint
• 21″ driver with neodymium magnet
• Power Handling Capacity (RMS/Peak 10 Ms) 650/2600 W
• ตอบสนองความถี่ (–5 dB standard) 35 Hz – 105 Hz
• Nominal impedance 4 Ω
• Max SPL 135 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 21S-SUB. The d&b D20 and D80 amplifiers can also be used with the appropriate loudspeaker configuration selected.

The post ลำโพงซับเบส d&b audiotechnik xS-Series 21S-SUB Subwoofer 21″ appeared first on soundspacethai.com.

ลำโพงซับเบส d&b audiotechnik สำหรับงานติดตั้ง d&b 18S ในตระกูล xS-Series เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 18″ driver with neodymium magnet, ทนกำลังขับ 400/1600 W (RMS/peak 10 ms) impedance 8 Ω, Max SPL 132 dB ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz

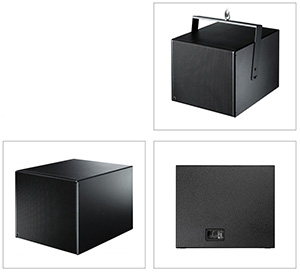

The d&b 18S-SUB is a compact high performance subwoofer for use with the xS-Series and xA-Series loudspeakers. The cabinet houses a long excursion 18″ neodymium driver in a bass-reflex design and it can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific compact subwoofer
• 18″ driver with neodymium magnet
• Power Handling Capacity (RMS/Peak 10 Ms) 400/1600 W
• ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz
• Nominal impedance 8 Ω
• Max SPL 132 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 18S-SUB. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.

The post ลำโพงซับเบส d&b audiotechnik xS-Series 18S-SUB Subwoofer 18″ appeared first on soundspacethai.com.

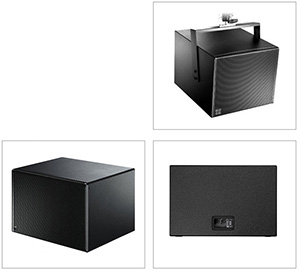

ลำโพงซับเบสสำหรับงานติดตั้ง d&b audiotechnik 12S ในตระกูล xS-Series เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 12″ driver with neodymium magnet, ทนกำลังขับ 300/1600 W (RMS/peak 10 ms) impedance 8 Ω, Max SPL 127 dB ตอบสนองความถี่ (–5 dB standard) 45 Hz – 130 Hz

The post ลำโพงซับเบส d&b audiotechnik xS-Series 12S-SUB Subwoofer 12″ appeared first on soundspacethai.com.

ลำโพง d&b audiotechnik xS-Series 24S-D full range 2-Way  Wide Dispersion ขนาดดอกลำโพง 2×12″ driver with neodymium magnet 1.4” exit compression driver, passive crossover network, ทนกำลังขับ 500 วัตต์ RMS/2000 วัตต์ /peak 10 ms) Nominal impedance  4 Ω, Dispersion Angle (h x v) 110° x 45° rotatable rotatable, Max SPL 137 dB

The 24S-D is a high performance full range 2-way passive loudspeaker housing two 12″ drivers in a bass-reflex enclosure with a 1.4″ exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The 24S-D is the wider horizontal dispersion option of the 24S loudspeaker. The dipolar arrangement of the 12″ drivers results in directivity control down to approximately 500 Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low frequency reproduction.

With a frequency response extending from 55 Hz to 18 kHz, the 24S-D can be used as a stand-alone, full range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually. The rotatable HF horn can be rotated by 90° to enable horizontal orientation.

The loudspeaker cabinet is constructed from marine plywood, and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill. The top, bottom and both side panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware.

The loudspeakers are Ball Impact Resistant according to DIN 18032-3 for sports and multipurpose halls. The Weather Resistant option enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable. The 24S-D can also be supplied in any RAL colour. This Special Colour option can be provided for rigging accessories.

Features:

• Installation specific high performance full range 2-way loudspeaker/wide dispersion
• 2×12″ driver with neodymium magnet
• 4″ compression driver with CD horn
• Power handling capacity (RMS/peak 10 ms) 500/2000 W
• dispersion angle (h x v) 110° x 45° rotatable
• Nominal impedance 4 Ω, Max SPL 137 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 24S. The d&b D20 and D80 amplifiers can also be used with the appropriate loudspeaker configuration selected.

The post ลำโพง d&b audiotechnik xS-Series 24S-D Loudspeaker 2×12″ appeared first on soundspacethai.com.

ลำโพง d&b audiotechnik xS-Series 24S full range 2-Way ขนาดดอกลำโพง 2×12″ driver with neodymium magnet 1.4” exit compression driver, passive crossover network, ทนกำลังขับ 500 วัตต์ RMS/2000 วัตต์ /peak 10 ms) Nominal impedance  4 Ω, Dispersion Angle (h x v) 75° x 45° rotatable, Max SPL 138 dB

The d&b 24S is a high performance full range 2-way passive loudspeaker housing two 12” drivers in a bass-reflex enclosure with a 1.4” exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The dipolar arrangement of the 12” drivers results in directivity control down to approximately 500 Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low frequency reproduction.

With a frequency response extending from 55 Hz to 18 kHz, the 24S can be used as a stand-alone, full range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually. The rotatable HF horn can be rotated by 90° to enable horizontal orientation.

The loudspeaker cabinet is constructed from marine plywood, and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill. The top, bottom and both side panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware.

The loudspeakers are Ball Impact Resistant according to DIN 18032-3 for sports and multipurpose halls. The Weather Resistant option enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable. The 24S can also be supplied in any RAL colour. This Special Colour option can be provided for rigging accessories.

Features:

• Installation specific high performance full range 2-way loudspeaker
• 2×12″ driver with neodymium magnet
• 4″ compression driver with CD horn
• Power handling capacity (RMS/peak 10 ms) 500/2000 W
• dispersion angle (h x v) 75° x 45° rotatable
• Nominal impedance 4 Ω, Max SPL 138 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 24S. The d&b D20 and D80 amplifiers can also be used with the appropriate loudspeaker configuration selected.

The post ลำโพง d&b audiotechnik xS-Series 24S Loudspeaker 2×12″ appeared first on soundspacethai.com.
