เครื่องชารจ์ถ่านแบตเตอรี่สำหรับไมค์ประชุมไร้สาย BOSCH Dicentis DCNM-WCH05 ชารจ์ได้ครั้งละ 5 ก้อน, Individual Battery Pack charging capacity indicators, Recharges from empty in less then 3 hours, Auto‑ranging power supply, 100–240 Vac, Loop‑through mains power supply connectors

BOSCH DCNM-WCH05 this Charger can simultaneously charge up to 5 Battery Packs (DCNM‑WLIION). The charging status of each Battery Pack is shown on individual charge capacity LED indicators. The Battery Packs can be left in the Charger when fully charged. This has no impact on charging level and lifetime of the Battery Packs. The Charger is intended for wall mounting.

The loop‑through mains power supply sockets allow a maximum number of chargers to be connected in series so that they can share the same mains power supply outlet

Features:

• Simultaneous charging of up to 5 Battery Packs
• Individual Battery Pack charging capacity indicators
• Recharges from empty in less then 3 hours
• Auto‑ranging power supply, 100–240 Vac
• Loop‑through mains power supply connectors

The post เครื่องชารจ์แบตเตอรี่ไมค์ประชุมไร้สาย BOSCH DCNM-WCH05 Charger appeared first on soundspacethai.com.

แบตเตอรี่ Lithium‑ion แบบชารจ์ได้สำหรับชุดไมค์ประชุมไร้สาย BOSCH DCNM-WLIION, 24 hours typical use from a full charge, Fully recharges in less then 3 hours, Built‑in microprocessor controls charging cycle, Long service life without charge degradation

The Bosch DCNM-WLIION is a removable, rechargeable lithium-ion battery pack for use with the Bosch Dicentis wireless discussion devices – DCNM-WD & DCNM-WDE. The battery fully charges within 3 hours and gives 24 hours use in the standard wireless device and 20 hours use in the extended device.

A microprocessor controls the charging current to prevent current overload and a push-to-test button on the DCNMWLIION enables the user to test the remaining battery capacity / time.

Features:

• 24 hours typical use from a full charge
• Fully recharges in less then 3 hours
• Lithium‑ion technology
• Built‑in microprocessor controls charging cycle
• Long service life without charge degradation

The post แบตเตอรี่ไมค์ประชุมไร้สาย BOSCH DCNM-WLIION Battery pack for DCNM-WD appeared first on soundspacethai.com.

ก้านไมค์พร้อมไมโครโฟนสำหรับชุดประชุมไร้สายแบบก้านยาว 480 mm (19.90 in) Bosch Dicentis DCNM-MICL, Uni‑directional microphone on adjustable stem, Built‑in plop and windshield, Low susceptible for mobile phones, For acoustical challenging rooms, For locations where people want to speak standing upright

The Bosch DCNM-MICL are uni-directional stem microphones for use with the Bosch Dicentis wireless discussion devices – DCNM-WD & DCNM-WDE. The adjustable stem is available in a choice of short length – 310mm or long length – 480mm and the uni-directional response provides optimum performance, even in noisy conditions or in acoustically challenging rooms.

Features:

• Uni‑directional microphone on adjustable stem
• Built‑in plop and windshield
• Low susceptible for mobile phones
• For acoustical challenging rooms
• For locations where people want to speak standing upright

The post ก้านไมค์ชุดประชุมไร้สาย BOSCH DCNM-MICL Microphone with long stem appeared first on soundspacethai.com.

ฐานไมค์ประชุมไร้สายสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล BOSCH DCNM-WD, Possible‑to‑speak and request‑to‑speak indication in microphone, Single‑use, dual-use or chairperson can be configured via the web interface, Seamless automatic frequency channel switching

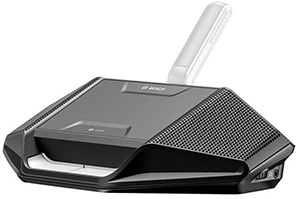

The Bosch DCNM-WD is a wireless device for use with the DICENTIS Wireless Conference System. The DCNMWD enables participants to speak, register a request-to-speak, and listen to the speaker during a meeting via the built in loudspeaker or headphones.

The loudspeaker and microphone can be active at the same time for a face‑to‑face meeting experience. The sound is crystal‑clear due to a very high signal‑to‑noise ratio and smart frequency selection. To prevent acoustic feedback, a feedback suppressor is built‑in. The device can be easily configured as a single-use, dual-use or chairperson Wireless Device via the web interface of the Wireless Access Point (DCNM-WAP).

Features:

• Possible‑to‑speak and request‑to‑speak indication in microphone.
• Single‑use, dual-use  or chairperson can be configured via the web interface.
• Audio mute button.
• Operating in the 2.4 GHz and 5 GHz (UNII1, 2 (extended) and 3) (license free)
• Based on standard WiFi.
• Seamless automatic frequency channel switching.
• WiFi coverage area range test, Packet Loss Concealment.
• WPA2 encyption prevents eavesdropping and unauthorized access.

The post ไมค์ประชุมไร้สาย BOSCH DCNM-WD Wireless discussion device appeared first on soundspacethai.com.

เครื่องควบคุมชุดไมค์ประชุมไร้สายระบบดิจิตอล BOSCH DCNM-WAP, Based on standard WiFi according IEEE 802.11n, Seamless frequency switching in the 2.4 GHz and 5 GHz band, Powering via power supply adapter, Power over Ethernet (POE) or DICENTIS multimedia System Network Cable

The Bosch DCNM-WAP wireless access point is used as a central control device for the Bosch Dicentis wireless discussion system. The DCNMWAP can be mounted on a table, wall or ceiling and requires no central control unit. It is truly wireless with no need for an additional router or tablet control. A simple intuitive web interface is used for system setup, configuration, control and licensing.

Features:

• Based on standard WiFi according IEEE 802.11n
• WPA2 encryption for secure communication
• Seamless frequency switching in the 2.4 GHz and 5 GHz band
• Powering via power supply adapter, Power over Ethernet or DCN multimedia System Network Cable

Zero Interference

• Seamless automatic wireless frequency channel switching; up to 44 channels in the 2.4/5 GHz band.
• Packet Loss Concealment to mask the effects of lost or discarded packets.

Standard WiFi

• Visibility in the IT infrastructure.
• Coexistence with other WiFi networks.

System cameras

• For giving a clear visual overview of the proceedings.
• A maximum of six HD Conference Dome cameras can be connected to the system with native support.
• The camera presets can be configured in the web interface.
• SDI Connection for little video latency.

General

• Powering via either: Power supply adapter, Power over Ethernet (PoE), or DCN multimedia System Network Cable.
• Typical wireless coverage area range of 30 m x 30 m.
• Functionality is modular; expandable via licensing.

The wireless access point is used for all configuration and initial set up via web interface. These settings include:

• User management shall give the possibility to create several users with user specific access to functionality.
• Line input/output and routing settings., 5‑band parametric equalizer.
• Camera control and HD-SDI switcher configuration.
• Wireless network SSID and WPA2 settings.
• Wired network host‑name setting (DHCP and zero‑config protocol based on Bonjour, fixed IP address is not supported).
• Upload of custom logo, which shall be shown in the Wireless Device Extended.
• GUI language setting, Factory default.
• Device subscription, using standard WPS protocol.
• Seat naming including priority setting for the chairperson (Maximum up to 15 Wireless Devices can have priority).
• Dual‑use setting (requires DCNM‑LSDU per DCNM‑WD/WDE).
• Camera preposition assignment to seats (requires one DCNM‑LCC per DCNM‑WAP).
• Date and time settings. Automatic date and time synchronization through ntp server from the internet or supplied by the local DHCP server.
• Firmware upgrade of all devices and the WAP, using the wireless network (not supported when using the web interface on a tablet).
• License activation (not supported when using the web interface on a tablet).
• Logging with export functionality (Export is not supported when using the web interface on a tablet).

The post เครื่องควบคุมชุดไมค์ประชุมไร้สาย BOSCH DCNM-WAP Wireless access point appeared first on soundspacethai.com.

เครื่องควบคุมและจ่ายกระแสไฟชุดไมค์ประชุมระบบดิจิตอล BOSCH CCSD-CURD, Plug-and-play, Built‑in MP3 recorder with internal memory and USB recording, Built‑in Digital Acoustic Feedback , On-board support for automatic HD camera control

The Control Unit is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected Discussion Devices and monitors and controls the discussion system. Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.

Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment and Bosch HD Conference Domes. Intuitive web browser control allows basic and advanced system settings to be easily viewed and changed, as required

BOSCH CCSD-CURD that has additional features such as MP3 recording and Digital Acoustic Feedback Suppression (DAFS). The four RCA outputs at the rear of the CCSD-CURD ensure that the unit is optimized for use in courtrooms, i.e. for the recording of individual speakers.

Features:

• Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
• Intuitive web browser interface control for advanced configuration and control
• Built‑in MP3 recorder with internal memory and USB recording
• Built‑in Digital Acoustic Feedback Suppression (DAFS) for ensuring superior speech intelligibility
• On-board support for automatic HD camera control

คุณลักษณะ :

• เชื่อมต่อชุดไมค์ประชุมได้สูงสุดถึง 80 ชุด ต่อ 1 เครื่อง (40 x 2 Trunk)
• ควบคุมการตั้งค่าต่างๆ ผ่าน web browser ร่วมกับแท็บเล็ต แล็ปท็อป/PC
• มีเครื่องบันทึกเสียง MP3 และเมมโมรี่การ์ดในตัว
• มีช่องเสียบ USB และช่องเสียบหูฟัง
• สามารถขจัดสัญญาณเสียงรบกวนย้อนกลับแบบดิจิตอล (DAFS)
• รองรับระบบสำหรับการควบคุมกล้อง HD โดยอัตโนมัติ

The post เครื่องควบคุมชุดไมค์ประชุม BOSCH CCS-1000D CCSD-CURD Control unit appeared first on soundspacethai.com.

เครื่องควบคุมและจ่ายกระแสไฟชุดไมค์ประชุมระบบดิจิตอล BOSCH CCS-1000D CCSD-CU, Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices, Intuitive web browser interface control, On-board support for automatic HD camera control

The BOSCH CCSD-CU Control Unit is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected Discussion Devices and monitors and controls the discussion system. Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.

Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment and Bosch HD Conference Domes. Intuitive web browser control allows basic and advanced system settings to be easily viewed and changed, as required

Features:

• Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
• Intuitive web browser interface control for advanced configuration and control
• On-board support for automatic HD camera control

คุณลักษณะ :

• เครื่องคอนโทรลและจ่ายกระแสไฟฟ้าให้ชุดไมค์ประชุม CCSD-1000-D Serie
• สามารถต่อชุดไมค์ประชุมได้สูงสุดถึง 80 ชุด ต่อ 1 เครื่อง (40 x 2 Trunk)
• คอนโทรลผ่าน Web Browser ได้ (ต้องต่อ เร้าท์เตอร์เพิ่ม)
• ระบบรองรับสำหรับการควบคุมกล้อง HD โดยอัตโนมัติ

The post เครื่องควบคุมชุดไมค์ประชุม BOSCH CCS-1000D CCSD-CU Control unit appeared first on soundspacethai.com.

ชุดไมคโครโฟนห้องประชุมสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล แบบก้านไมค์ยาว 18.9 นิ้ว ( 48 cm) BOSCH CCSD-DL ในรุ่น CCS-1000D, Unique patent pending possible-to-speak indicator, Plug and play, Easily configured as a participant device or chairperson device, Immunity to mobile phone interference

BOSCH CCSD-DS Discussion Devices are connected in a daisy‑chain configuration to the Control Unit of a CCS-1000 D Digital Discussion System. Their plug‑and‑play functionality allows them to be conveniently connected to and removed from the system as required.

A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built‑in loudspeaker or (optional) headphones.

Features:

• Possible-to-speak indicator
• Plug-and-Play functionality for ensuring fast installation and reconfiguration times
• Compact, attractive ergonomic design
• Easily configured as a participant device or chairperson device
• Immunity to mobile phone interference

คุณลักษณะ:

• ไมค์ประชุมสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล (ก้านยาว 18.9นิ้ว)
• ตัวแสดงสถานะ (Possible-to-Speak)
• ฟังก์ชันการทำงานแบบ Plug-and-Play
• การออกแบบทางสรีรศาสตร์ที่สวยสะดุดตาและกะทัดรัด
• กำหนดค่าเป็นอุปกรณ์ของผู้เข้าร่วมหรืออุปกรณ์ของประธานได้
• ป้องกันสัญญาณรบกวนจากโทรศัพท์มือถือ

The post ไมค์ประชุม BOSCH CCS-1000D CCSD-DL Discussion Unit appeared first on soundspacethai.com.

ชุดไมคโครโฟนห้องประชุมสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล แบบก้านไมค์สั้น 12.2 นิ้ว (31cm) BOSCH CCSD-DS ในรุ่น CCS-1000D, Unique patent pending possible-to-speak indicator, Plug and play, Easily configured as a participant device or chairperson device, Immunity to mobile phone interference

BOSCH CCSD-DS Discussion Devices are connected in a daisy‑chain configuration to the Control Unit of a CCS-1000 D Digital Discussion System. Their plug‑and‑play functionality allows them to be conveniently connected to and removed from the system as required.

A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built‑in loudspeaker or (optional) headphones.

Features:

• Possible-to-speak indicator
• Plug-and-Play functionality for ensuring fast installation and reconfiguration times
• Compact, attractive ergonomic design
• Easily configured as a participant device or chairperson device
• Immunity to mobile phone interference

คุณลักษณะ:

• ไมค์ประชุมสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล (ก้านสั้น 12.2นิ้ว)
• ตัวแสดงสถานะ (Possible-to-Speak)
• ฟังก์ชันการทำงานแบบ Plug-and-Play
• การออกแบบทางสรีรศาสตร์ที่สวยสะดุดตาและกะทัดรัด
• กำหนดค่าเป็นอุปกรณ์ของผู้เข้าร่วมหรืออุปกรณ์ของประธานได้
• ป้องกันสัญญาณรบกวนจากโทรศัพท์มือถือ

The post ไมค์ประชุม BOSCH CCS-1000D CCSD-DS Discussion Unit appeared first on soundspacethai.com.
