ลำโพง YAMAHA CHR15 เป็นลำโพงแบบ Passive 2 ทาง Passive Loudspeaker ขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลมขนาด 1.4 นิ้ว Compression Driver, 90 x 60° with Rotatable Horn, ทนกำลังขับ 250 วัตต์ RMS, 500 วัตต์ Program 1000 วัตต์ Peak

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker.

Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

Features:

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact size despite the 15-inch LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

The post ตู้ลำโพง YAMAHA CHR15 Passive Loudspeaker 15″ appeared first on soundspacethai.com.

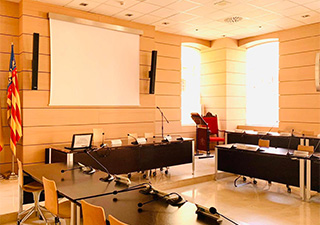

ลำโพงแบบไม่มีกำลังขยายในตัวคอลัมน์สีขาว WORK UDA 16 เป็นตู้ลำโพงที่ประกอบด้วยดอกลำโพงขนาด 2.75 นิ้ว จำนวน 16 ดอกเรียงกันเป็นแนวตั้ง ทนกำลังขับ 400 วัตต์ Program 20° Vertical, 140° Horizontal Coverage, Suited for reverberant environments, IP 65, เหมาะสำหรับงานห้องประชุม

The UDA 16 is a high output, full range, frequency shaded passive column speaker which provides voice intelligibility and musical clarity in acoustically challenging environments such as shopping malls, houses of worship, restaurants, congress halls, hotels, airports, train stations, swimming pools, conference rooms or museums, where reflective surfaces create a reverberant sound field.

The UDA 16 features sixteen 2.75″ diameter transducers, 0.75″ voice coil, in a closed box enclosure. A proprietary IST (Interdependent Shading Topology) network has been designed to keep constant the ratio wavelength-column size, which results in a controlled 20° vertical coverage in the vocal range.

This makes the UDA series suitable to be installed in rooms with problematic sound reflections where vocal intelligibility is paramount.

The narrow extruded aluminium enclosure has been designed for a seamless visual integration in every venue and is available in black or white finish.

The grille is also made of aluminium and internally covered with a protective water repellent fabric which prevents splashed water and dust from damaging the transducers, featuring thereby an IP 65 protection rating.

A wall mounting accessory is included allowing the column to be aimed up to +/- 90° sideways and from 0° to 10° downwards or upwards in two degrees steps.

Each unit can be connected to either the input terminal strip or an NL4 Speakon. Connections are protected by a metallic weather resistant cover featuring a cable gland on the bottom which prevents water or moisture from causing a shortcircuit.

The accessory UDA 16 TL (not included) allows for high impedance connection of the UDA 16. It houses a high quality 120Wrms@100V line transformer (60Wrms@70V) that makes it suitable for installations where long cables have to be deployed.

Tuning presets are available to enhance the frequency balance and intelligibility.

Features :

• Passive column speaker.
• Suited for reverberant environments.
• 20° Vertical, 140° Horizontal Coverage.
• 400W Program.
• Stylish and visually discreet design.
• Extruded aluminium enclosure.
• Low and High impedance available.
• Available in black or white finish.

The post ตู้ลําโพงคอลัมน์ WORK UDA 16 White Inatallation Speaker 16 x 2.75″ appeared first on soundspacethai.com.

ลำโพงแบบแขวนไลน์อาเรย์ Martin Audio O-Line เป็นตู้ลำโพง 2-way micro-line array module ขนาดดอกลำโพง LF 2 x 3.5″, Tweetwe 5 x 0.55”, 100º horizontal, 5º vertical Dispersion, ทนกำลังขับ 50W AES, 200W peak, Ideal for high-quality music reproduction as well as speech

Martin Audio O-Line delivers consistent audio coverage with unprecedented accuracy in a wide variety of architectural environments, using only one amplifier channel per array in many applications. By utilising a complement of unique.

Martin Audio designed drivers, and mechanical alignment techniques, simple EQ and Limiting is the only processing required.

A powerful software application provides extremely accurate intercabinet and array angles, in order to achieve optimum coverage over a predefined area. O-Line’s aesthetically pleasing cabinet is finished in neutral light grey.

Features:

• Modular micro line array for maximum deployment flexibility
• Software optimised array configuration for focussed sound energy
• Additional DSP optimised functionality for increased coverage, consistency and control
• Sidelobe-free vertical dispersion from the high frequency section
• Ideal for high-quality music reproduction as well as speech
• Architecturally sympathetic design for discreet deployment

The post ตู้ลำโพง Martin Audio O-Line 2×3.5″ Micro Array Loudspeaker appeared first on soundspacethai.com.

ลำโพงแบบแขวนไลน์อาเรย์ Martin Audio WPL เป็นตู้ลำโพง Passive แบบ 3 ทาง Large Format  Line Array ขนาดดอกลำโพง LF 2 x 12″, MF 2 x 6.5”, HF 3 x 1″, Exemplary 90° horizontal constant directivity pattern, Industry-leading DISPLAY software interacts with DSP

Wavefront Precision systems deliver unmatched sound quality, coverage consistency and control in an affordable package. Wavefront Precision Longbow (WPL) brings this high performance and control to large-scale touring and install applications from stadium concert and outdoor festivals, to high-specification arena and House of Worship installations.

WPL is designed as a complete system with external iKON® multichannel amplifiers, automated DISPLAY™ optimization software and VU-NET™ control platform. This guarantees that WPL arrays perform predictably and effortlessly to their design maximum, as well as ensuring that they are compatible with other WPL systems throughout the world.

WPL is a full-scale line array which is capable of exceptionally high output for its modest size and weight. A three-way, biamped system, its very high output is achieved by utilizing Martin Audio’s trademark horn-loading technology across all frequency bands — increasing the acoustic output of the low frequency section, as well as the midrange and HF.

It incorporates 2 x 12” (300mm) drivers with Hybrid® horn/ reflex loading, 2 x 6.5” (165mm) cone drivers on a midrange horn which covers the vocal frequency range from 300Hz to over 4kHz, and 3 x 1” (25mm) exit HF drivers operating from 4kHz upwards.

Each section features innovative hornloading techniques and refinements which raise the acoustic performance of WPL to a superior level — both in terms of output and smooth 90° horizontal coverage patterns of the mid and HF horns. Sonically, WPL’s exemplary horizontal dispersion pattern translates to an incredibly consistent frequency response off-axis, with minimal variation from the on-axis response.

The maximum peak outputs of the LF, Mid and HF sections are 139dB, 140dB and 145dB per enclosure @ 1metre respectively — ensuring that a WPL array will meet the most demanding requirements for throw and clarity in the largest venues and outdoor events.

Features:

• 3-way bi-amp, 2 x 12” large format line array
• All-horn, maximum-efficiency design
• Exceptional signature sonic performance
• Exemplary 90° horizontal constant directivity pattern control
• External, dedicated, multi-channel Class D amplification
• Scalable resolution for flexible optimisation of coverage, consistency and control
• Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
• Fast, integral 3-point rigging for up to 24 enclosures
• Compact and light weight design with discreet side handles for ease of handling

The post ตู้ลำโพงไลน์อาเรย์ Martin Audio WPL 2×12″ 3-way Array Loudspeaker appeared first on soundspacethai.com.

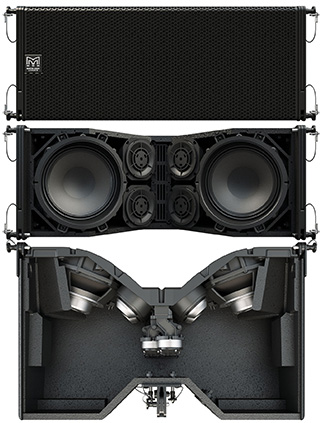

ลำโพงแบบแขวนไลน์อาเรย์ Martin Audio WPS เป็นตู้ลำโพง Passive แบบ 3 ทาง Small Line Array ขนาดดอกลำโพง LF 2 x 8″, MF 4 x 4”, HF 4 x 1″, 100° horizontal constant directivity pattern control, External, dedicated, multi-channel, Sports stadium, arena installations

The WPS is a versatile, state-ot-the-art line array with a peak SPL of 133dB and is designed for small-to-medium scale touring and install applications that require a high output array with reduced weight and footprint.

With exemplary coverage consistency and superb sound performance, the flexibility of WPS makes it an ideal system for live sound reinforcement and installations in theatres, concert halls and Houses of Worship.

Return-on-investment within a rental company’s inventory is maximised by also deploying WPS arrays as front-fill, delay or side-hang support for larger WP systems.

WPS is a passive 3-way system which integrates a high density of drive units in a very compact enclosure. It features 2 x 8” (200mm) LF drivers, 4 x 4” (100mm) midrange drivers and 4 x 1” (25mm) exit HF compression drivers loaded by a moulded HF horn which occupies the full width of the enclosure — defining the 100° horizontal constant directivity coverage pattern of both the HF and midrange sections.

The 4” midrange drivers are compression-loaded to raise efficiency and enter the horn walls via annular slots close to the HF throat to sum effectively with the HF wavefront. In the HF section, four 1” exit compression drivers deliver pristine high frequency sound without the harshness and distortion associated with larger format devices.

The 8” LF drivers are set back behind the walls of the HF horn, with a small volume of air in front of each driver increasing the output at the upper end of its operating range. The LF exit apertures are spaced apart horizontally to provide useful LF horizontal pattern control.

For extended low frequency performance, WPS is designed to be partnered with the SXC118 cardioid subwoofer or its flyable variant, the SXCF118.

Features:

• 3-way passive, 2 x 8” small line array
• Scalable resolution for advanced array control
• External, dedicated, multi-channel Class D amplification
• Industry-leading DISPLAY software interacts with DSP for highly-accurate results
• Fast, integral 3-point flying systems for up to 16 enclosures
• Side and rear handles for ease of handling and setting splayangles
• 100° horizontal constant directivity pattern control

The post ตู้ลำโพงไลน์อาเรย์ Martin Audio WPS 2×8″ 3-way Array Loudspeaker appeared first on soundspacethai.com.

ลำโพงแบบแขวนไลน์อาเรย์ Martin Audio WPM เป็นตู้ลำโพง Passive แบบ 2 ทาง Mini Line Array ขนาดดอกลำโพง LF 2 x 6.5″, HF: 3 x 1.4”, 100° horizontal constant directivity pattern control, External, dedicated, multi-channel, Sports stadium, arena installations

WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array.

With a peak SPL of 130dB peak, it is also very powerful  a 12-box array will throw beyond 35 metres (115ft) and produce live music at high levels in up to 3000-seat venues.

It embodies the very latest acoustic technology in an ultra-compact enclosure and is the ideal system for small-to-medium scale theatres and live music venues, AV events and installations in concert halls, ballrooms and HoW.

A passive 2-way system with an impedance of 16 ohms, it can be driven in blocks of 1, 2, 3 or 4 resolution configurations. With a complement of 2 x 6.5” (165mm) LF drivers and a vertical column of 3 x 1.4” (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative.

The LF drivers are located in the side walls of the HF horn — an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used.

WPM’s drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.

In the triple-driver HF section, each individual HF wavefront is precisely coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.

Features:

• 2-way passive, 2 x 6.5” mini line array
• Scalable resolution for advanced array control
• External, dedicated, multi-channel Class D amplification
• Industry-leading DISPLAY software interacts with DSP for highly-accurate results
• Fast, integral 3-point flying systems for up to 16 enclosures
• Side and rear handles for ease of handling and setting splay angles
• 100° horizontal constant directivity pattern control

The post ตู้ลำโพงไลน์อาเรย์ Martin Audio WPM 2×6.5″ 2-way Array Loudspeaker appeared first on soundspacethai.com.

ตู้ลำโพงซับเบสไลน์อาเรย์ BOSE ShowMatch SM118 ขนาดดอกลำโพง 18 นิ้ว ตอบสนองความถี่ 29 – 300 Hz ทนกำลังขับ 750 W (3000 W peak) DeltaQ technology, Environmenta IPX4, Nominal Impedance 4 ohms

Bose ShowMatch™ SMS118 subwoofer is designed primarily to integrate with DeltaQ™ array loudspeakers and extend lowfrequency response down to 29 Hz. The SMS118 enclosure width and integrated rigging allows fast integration in arrays with ShowMatch full-range modules using optional array frames and accessories.

The portable-rated Baltic birch enclosure may also be used for ground-stack applications and includes an integrated mounting-pole adapter for use with other mid/high loudspeakers.

Featurtes:

• DeltaQ™ technology – defines the next-generation in loudspeaker array design with selectable coverage patterns that more precisely direct sound to audience areas for improved sound quality and vocal clarity with fewer boxes versus line arrays
• ShowMatch™ companion 1x 18” subwoofer – for low-frequency extension down to 29 Hz with mixed mid/high and subwoofer ShowMatch arrays
• Bose LF18 neodymium 18-inch, high-excursion, 4.5-inch voice coil, transducer provides maximum performance (same transducer as in Bose RMS218)
• Integrated 4-point “quick pin” rigging – allows arrays of up to 18 subwoofers with 10:1 design factor
• Front-grill mounted NL4 input, plus rear NL4 inputs – allow easy setup for “reversed-box” cardioid arrays
• Integrated pole-cup adapter – allows use with other mid/high loudspeakers and accessory mounting poles
• Removable side guards – provide rigging guard for portable applications. Easily removed for permanent installs to reduce width and improve sight lines

The post ตู้ลำโพงซับเบส BOSE ShowMatch SM118 DeltaQ Array Subwoofer appeared first on soundspacethai.com.

ตู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM20 ขนาดดอกลำโพง 8 นิ้ว 2 ดอก พร้อมมุมกระจายเสียงแนวตั้ง 20 องศา แนวนอน 70-100 องศา ทนกำลังขับ Low Frequency 450 W (1800 W peak) High Frequency 100 W (400 W peak)

Bose Professional ShowMatch DeltaQ SM20 full-range array modules provide 20° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage and optional accessory 120° waveguides.

Replace single waveguide panel to form horizontal asymmetrical patterns.   The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

Features:

• DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
• Changeable waveguides–includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 120°waveguides for SM20.
• Compact, portable enclosure–Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
• Tour-sound output level –4x Bose Professional EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
• 3-point “quick pin” rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
• Removable side rigging -guard/handles –provides rigging guard and hand modules and 10:1 safety factor.holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.

The post ตู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM20 DeltaQ Array loudspeaker appeared first on soundspacethai.com.

ตู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM10 ขนาดดอกลำโพง 8 นิ้ว 2 ดอก พร้อมมุมกระจายเสียงแนวตั้ง 10 องศา แนวนอน 70-100 องศา ทนกำลังขับ Low Frequency 450 W (1800 W peak), High Frequency 100 W (400 W peak)

Bose Professional ShowMatch DeltaQ SM10 full-range array modules provide 10° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage.

Replace single waveguide panel to form horizontal asymmetrical patterns.  The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

Features:

• DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
• Changeable waveguides –includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns.
• Compact, portable enclosure–Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
• Tour-sound output level –4x Bose Professional EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
• 3-point “quick pin” rigging-Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
• Removable side rigging-guard/handles –provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.

The post ตู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM10 DeltaQ Array loudspeaker appeared first on soundspacethai.com.

ตู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM5 ขนาดดอกลำโพง 8 นิ้ว 2 ดอก พร้อมมุมกระจายเสียงแนวตั้ง 5 องศา แนวนอน 70-100 องศา ทนกำลังขับ Low Frequency 450 W (1800 W peak), High Frequency 100 W (400 W peak)

Bose Professional ShowMatch DeltaQ SM5 full-range array modules provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides.

Replace single waveguide panel to form horizontal asymmetrical patterns.   The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

Features:

• DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
• Changeable waveguides –includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55°waveguides for SM5.
• Compact, portable enclosure –Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
• Tour-sound output level –4x Bose Professional EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
• 3-point “quick pin” rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
• Removable side rigging-guard/handles–provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
• Rigging overlap angle adjustment -only on SM5 modules, coverage overlap or “splay” can be adjusted from 0 to 5°, in 1°increments, to provide long throw distance and high SPL.

The post ตูู้ลำโพงไลน์อาเรย์ BOSE ShowMatch SM5 DeltaQ Array loudspeaker appeared first on soundspacethai.com.
