Splitter RANE SM82S Splitter / Mixer
อุปกรณ์ปรับแต่งขยายสัญญาณเสียง RANE SM82S Splitter Mixer, 8 inputs, 8 stereo Input channels, 1 st Auxiliary Send, 1 st Auxiliary Return, St input Balance controls Mono Input Pan controls
ราคาไม่รวมภาษีมูลค่าเพิ่ม
฿33,000.00 ฿26,400.00
Description

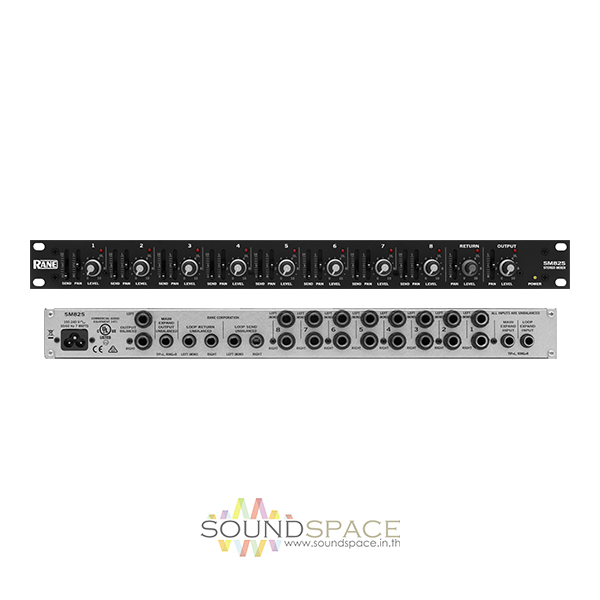

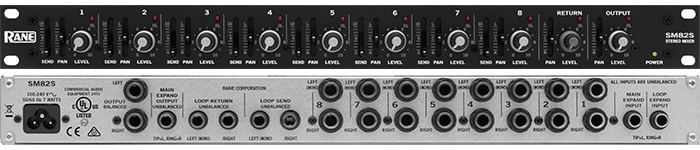

Rane SM82S 8-Channel Rackmountable Splitter/Mixer
อุปกรณ์ปรับแต่งขยายสัญญาณเสียง RANE SM82S Splitter Mixer, 8 inputs, 8 stereo Input channels, 1 st Auxiliary Send, 1 st Auxiliary Return, St input Balance controls
Mono Input Pan controls
The Rane SM 82S Splitter Mixer is a perfect problem solver for musicians, sound reinforcement or fixed installation in bars, clubs or restaurants. There are 8 stereo channels (16 mono) featuring stereo paired 1/4″ phone input connections. Stereo inputs provide complete compatibility with keyboards, CD players, external stereo mixer feeds etc.
Also featured is an effect send and return on every input channel, making it possible to run an effects loop with external reverbs and multi-effects processors. Balance (Left/Right) control is also featured on every channel.
- Stereo Inputs
- The Rane SM82 features 8 stereo paired inputs via 1/4″ phone connectors. A perfect utility mixer for external keyboards or playback devices such as CD players, Cassette players etc.
- Effect Sends
- Stereo effect sends provide adequate routing to external processors such as reverbs, delays, etc. Effect sends can also be used for sending signal to monitors.
- Balance Control
- Balance controls are featured on all channels providing signal placement between the left and right stereo channels.
- Sleek Rack-Mount Design
- The compact, light weight, rack-mount chassis makes the SM82 mixer road worthy and portable.
Features:
- For Musicians/Sound Reinforcement
- For Fixed Installation
- For Bars/Clubs/Restaurants
- 8 Channel
- Stereo Line Design
- Rack-Mountable
- 1/4″ Stereo Inputs
- Individual Level Control
- Effect Sends Control
- Balance Control

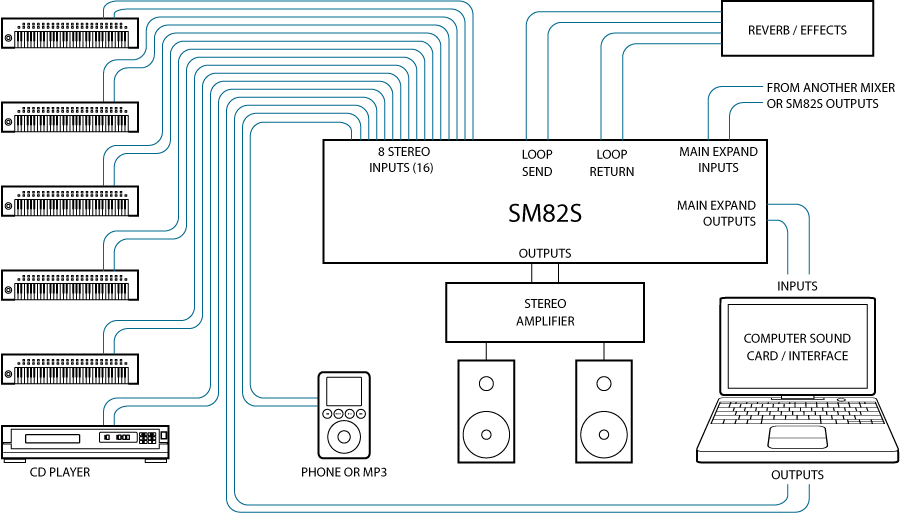

ตัวอย่างการต่อระบบ
Specifications
| Inputs | 8 – Stereo Paired (Left/Right) 1/4″ Phone inputs (channels 1-8) Loop Return – Stereo Paired (Left/Right) 1/4″ Phone inputs Main and Loop Expand – 1/4″ TRS Phone inputs |
| Output | Stereo Paired (Left/Right) Main Output 1/4″ Phone Main Expand Out 1/4″ Phone |
| Monitor/Headphone Out | No |
| Impedance | Inputs: Channels 1-8: 100k ohms 20% limit Receive: 100k ohms 20% limit Expand: 20k ohms 1% Outputs: Main: 100k ohms 1% Loop Send: 100k ohms 1% Expand: 100k ohms 1% |
| Gain | Input Gain Range: off to + 6% Output Gain Range: off to + 6% |
| THD & Noise | .015% +4dBu, 20Hz to 20kHz unity gain |
| Frequency Response | 20Hz to 20kHz .3 dB |
| Metering | No |
| Controls | Rotary Pots: Gain Control (channel 1-6) Mix/Pan Control (channel 1-6) Master Output Master Input |
| Phantom Power | not applicable |
| Power | 120/230 VAC 18-24 VAC w/center tap 0.1 Vrms |
| Dimensions | 1.75 x 19 x 5.3″ (4.4 x 48.3 x 13.5cm) (H x W x D) |
| Weight | 5 lbs (2.3kg) |
SM82S Data SheetRelated Products
