ชุดเครื่องเสียงเคลื่อนที่ QSC KC12 ลำโพงแบบคอลัมน์ Powered 3-Way Column loudspeaker, ในชุดจะประกอบด้วยลำโพง Woofer 12” 1 ดอก, ลำโพงเสียงกลางขนาด 4 นิ้ว 2 ดอก, เสียงแหลม Tweeter ขนาด 1นิ้ว 1 ดอก, พร้อมมิกเซอร์ 2 ช่อง กำลังขยาย 3000 วัตต์ ความดัง 132dB

Building on the legacy of the World of K^® portfolio, the KC12 is a 3-way, 3000-watt loudspeaker system encompassing the visual aesthetic of a column loudspeaker, while surpassing the acoustic performance of conventional designs. Simple and rapid to deploy, the elegant KC12 is ideal for solo entertainers, musicians and bands, mobile entertainers and DJs, AV productions and static installations.​

​The highly portable KC12 system consists of a ported subwoofer, housing a 12-inch driver extending down to 40 Hz. The groundbreaking design of the mid/high enclosure features a 1-inch compression driver combined with the innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide, as well as two high-excursion 4-inch midrange drivers.

Thanks to this 3-way design, the system provides an outstanding full-range horizontal coverage of 145 degree, and 35 degrees of audience-directed vertical coverage, with clean and natural sound at all output levels.​

Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage or riser. Available in black and white, the KC12 is backed by an industry-best global 6-Year Extended Warranty, with product registration.​

Features :

• 3-way loudspeaker system featuring a 12-inch (305 mm) subwoofer, two high-excursion 4-inch (102 mm) midrange drivers and a 1-inch (25.4 mm) HF compression driver combined with the proprietary QSC LEAF™ waveguide.
• Very high, undistorted 132 dB maximum peak SPL.
• Energy-efficient Class D amplification featuring 3000 W of total peak power with Power Factor Correction and extremely low AC consumption
• Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (145° H x 35° V) and excellent throw.
• Two combo XLR inputs (Mic/Line/Hi-Z and Mic/Line/+48 V), with independent, assignable Factory Presets for each input, perfect for small events where two microphones are needed for different use.
• Multi-function digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth® configuration, Delay (200 ms) or Reverb.
• Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
• Configured with or without its column pole, the system is ideally suited for direct deployments on a floor, stage or riser.
• Available in black and white finishes.

The post ชุดลำโพงคอลัมน์ QSC KC12 Powered Column loudspeaker System appeared first on soundspacethai.com.

เฟรมอาร์เรย์สำหรับลำโพง QSC KLA AF12 เป็นชุดแขวน Aluminum array frame for KLA Series active line array loudspeakers. Uses KLA SOLO™ Rigging System to connect to top of speaker without tools or external hardware

The black QSC KLA AF12 is an aluminum array frame for KLA Series active line array loudspeakers. It enables you to rig and deploy arrays up to 480 lb, with a maximum of five KLA12 and two KLA181 enclosures. The KLA AF12 uses the KLA SOLO rigging system to connect to the top of speakers without the need for tools or external hardware.

Features:

• Aluminum array frame for KLA Series active line array loudspeakers
• For arrays of up to 480 lb/218 kg (with a maximum of five KLA12 and two KLA181 enclosures)
• Uses KLA SOLO rigging system to connect to top of speaker without tools or external hardware

The post ชุดแขวนลำโพงไลน์อาเรย์ QSC KLA AF12 Array Frame appeared first on soundspacethai.com.

เฟรมอาร์เรย์สำหรับลำโพง QSC LA112-AF เป็นชุดแขวนสำหรับลำโพง LA112 โดยสามารถแขวนลำโพงได้สูงสุด 6 ตัว, Array frame for QSC’s LA112 active line array loudspeaker, Enables you to rig and deploy up to 6 speakers

Audio professionals looking to rig their LA Series line array speaker modules will appreciate the QSC LA112-AF, an array frame for LA 112 active line array loudspeakers. It enables you to rig and deploy up to six loudspeaker modules.

Features:

• Array frame for QSC’s LA112 active line array loudspeaker
• Enables you to rig and deploy up to 6 speakers

The post ชุดแขวนลำโพงไลน์อาเรย์ QSC LA112-AF Array Frame appeared first on soundspacethai.com.

เฟรมอาร์เรย์สำหรับลำโพง QSC LA108-AF เป็นชุดแขวนสำหรับลำโพง LA108 โดยสามารถแขวนลำโพงได้สูงสุด 6 ตัว, Array frame for QSC’s LA108 active line array loudspeaker, Enables you to rig and deploy up to 6 speakers

Audio professionals looking to rig their LA Series line array speaker modules will appreciate the QSC LA108-AF, an array frame for LA 108 active line array loudspeakers. It enables you to rig and deploy up to six loudspeaker modules.

Features:

• Array frame for QSC’s LA108 active line array loudspeaker
• Enables you to rig and deploy up to 6 speakers

The post ชุดแขวนลำโพงไลน์อาเรย์ QSC LA108-AF Array Frame appeared first on soundspacethai.com.

ลำโพงซับเบส QSC LS118 แบบมีกำลังขับในตัว Active Subwoofer ขนาดดอกลำโพง 18 นิ้ว Bass-Reflex Line Array Subwoofer, มีกำลังขับ 3600 วัตต์ Class-D Amplifier, Omni-directional or cardioid radiation modes, For Plug-and-Play High-Tech AV Installs

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LS118 is the result of a deep understanding of customer needs and application requirements.

The LS118 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations.

Featuring QSC Acoustic Linear Phase (ALP) design, which permits effortless combination and coherent deployment of QSC loudspeakers within the same sound system, the LS118 also provides daisy-chain connections for analog, networked digital audio (Dante^®) and AC power (PowerCON TRUE1).

Two or more LS118 can be configured in a cardioid arrangement, maximizing low frequency output in front while minimizing unwanted energy around the sides and rear of the system.

Together with the LA108 or LA112 active line array loudspeakers, the LS118 can be deployed with either an array frame/ground-stack adapter or using loudspeaker poles in both horizontal and vertical orientations.

Features:

• Very high output (138 dB peak SPL) with impressive low frequency performance
• Purpose-designed, 18-inch (460 mm) long excursion direct radiating driver
• Energy-efficient, 3600 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption
• Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
• QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual subwoofers, full arrays or groupings of both.
• Network solution includes digital audio-over-IP (Dante^®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions
• Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
• Selectable DEEP™ mode for extremely low frequency extension
• Rugged wooden enclosure with Polyurea coating for lasting durability
• Four low-noise, heavy-duty casters
• Vertical or horizontal deployments (M20 threaded pole receivers) combined with array frame/ground-stack adapters or loudspeaker poles.
• Complemented by LA108 and LA112 active line array loudspeakers
• Industry-best global 6-Year Extended Warranty with product registration.

The post ลำโพงซับเบส QSC LS 118 Active Subwoofer 18″ appeared first on soundspacethai.com.

ลำโพงไลน์อาเรย์ เป็นลำโพงแบบมีกำลังขยายในตัว QSC LA112  2 Way Line Array Loudspeaker, ขนาดดอกลำโพง 12 นิ้ว เสียงแหลม 1.75 นิ้ว กำลังขับ 1600W + 800W Class-D Amplifier Module,Onboard QSC AWARE™ (Automatic Wireless Array Recognition), For Plug-and-Play High-Tech AV Installs

The post ลำโพงไลน์อาเรย์ QSC LA112 Active Line Array loudspeaker 12″ appeared first on soundspacethai.com.

ลำโพงไลน์อาเรย์ เป็นลำโพงแบบมีกำลังขยายในตัว QSC LA108 2 Way Line Array Loudspeaker, ขนาดดอกลำโพง 8 นิ้ว เสียงแหลม 1.75 นิ้ว กำลังขับ 1000W + 300W Class-D Amplifier Module,Onboard QSC AWARE™ (Automatic Wireless Array Recognition), For Plug-and-Play High-Tech AV Installs

The LA108 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LA108 is the result of a deep understanding of customer needs and application requirements.

The LA108 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations.

Solo entertainers, installers and production companies will value its intuitive splay angle adjustment and array optimization, as well as its flexible interoperability with networked audio systems (Dante^®).

Deployed using dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole, the LA108 loudspeaker also features daisy-chain connections for analog, digital audio and AC power (PowerCON TRUE1).

Features:

• Purpose-designed, lightweight neodymium 8-inch (203 mm) woofer and 1.75-inch (44 mm) HF compression driver, delivering high, undistorted 134 dB max. peak SPL.
• Energy efficient, 1300 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption.
• Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (100° H x 15° V) and exceptional throw.
• Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
• Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker’s Rear User Interface (RUI) or QSC System Navigator™ App.
• QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
• Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
• Network solution includes digital audio-over-IP (Dante^®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.
• Flown (up to six units with array frame), ground-stacked (up to four LA108 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108) deployment options.
• Industry-best global 6-Year Extended Warranty with product registration.

The post ลำโพงไลน์อาเรย์ QSC LA108 Active Line Array loudspeaker 8″ appeared first on soundspacethai.com.

ตู้ลำโพงซับวูฟเฟอร์ QSC E118SW QSC E118SW โดยออกมาแทนรุ่น E18SW เดิม, เป็นตู้ลำโพงซับเบสแบบ Passive ดอกลำโพงขนาด 18 นิ้ว ทนกำลังขับ 800 W (continuous) / 3200 W (peak), Impedance 4 Ohms, ตอบสนองความถี่ 37 to 230 Hz (-6 dB) Connectors 2 x NL4, 1 x Barrier Strip

QSC E118SW Passive Subwoofer is a high-performance direct radiation subwoofer, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E118SW requires an amplifier with a minimum of 800W continuous (3200W peak) to power the 18″ woofer, which offers a frequency response of 37 to 230 Hz (-6 dB) with a peak SPL 133 dB.

QSC recommends the use of a speaker processor or a power amplifier with integrated DSP in order to set crossovers, limiting, and equalization to ensure the best performance. QSC’s GXD or PLD amplifiers, as well as TouchMix digital mixers offer on-board DSP and factory-tuned presets, which provide settings for live sound reinforcement, stage monitoring, dance music, and karaoke.

The rugged plywood enclosure is coated in black textured paint and features a heavy-duty grille lined with foam for protection. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E-Series two-way full-range loudspeakers. For portable applications, the E118SW includes attachment points for four optional casters.

Features:

• 800W continuous, 3200W peak
• E-Series Entertainment System offers advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
• Foam-lined perforated steel grille
• Constructed of rugged plywood and coated in black, textured paint
• Includes speaker pole

The post ลำโพงซับเบส QSC E118SW Passive Subwoofer 18″ appeared first on soundspacethai.com.

ตู้ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว QSC KS118 Active Direct Radiating Subwoofer ขนาดดอกลำโพง 18 นิ้ว Long-Excursion Woofer, มีกำลังขับ 3600 วัตต์ Class-D Amplifier, ตอบสนองความถี่ 41 Hz – 98 Hz (-6 dB), Adjustable crossover and delay, Deep Mode for Low-Frequency Extension

The QSC KS118 is a high-output active subwoofer well suited for mobile entertainment, AV rental, event production, clubs, and performance venues. The 18″ direct radiating driver is powered by a 3600W Class-D amplifier, which delivers high sound pressure levels with dynamic and musical sound reproduction of very-low frequencies.

The on-board DSP allows the user to save and recall variable delay and crossover settings, all the while protecting the system. Additionally, two KS118s can be deployed in a cardioid arrangement, which maximizes low-frequency output from the front, while minimizing energy around the sides and rear of the setup.

The KS118 is highly portable with four, rear-mounted, low-noise casters. The birch enclosure is rugged yet stylish and features comfortable aluminum handles and a top-mounted M20 threaded pole receptacle accepts a 35mm pole for easy vertical deployment with K.2 Series and other full-range loudspeakers.

Features:

• High output with remarkable low-frequency performance
• 3600W Class-D amplifier module
• 18″ long-excursion direct radiating driver
• Omnidirectional or cardioid radiation modes (cardioid setup requires min 2 units)
• Selectable DEEP mode for extremely low-frequency extension
• Adjustable crossover and delay
• Scenes for commonly used applications that can be saved/recalled
• Refined, professional, and elegant appearance in any application
• Rugged painted wood enclosure for lasting durability
• Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)
• Four low-noise, heavy-duty casters

The post ลำโพงกลางแจ้ง QSC KS118 Active Subwoofer 18″ appeared first on soundspacethai.com.

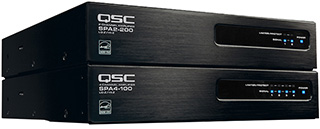

แอมป์ขยายเสียง QSC SPA4-100 เป็นเครื่องขยายเสียงจาก QSC ในตระกุล SPA-Series มีขนาด 1U ครึ่งแร็ค เป็นแอมป์ 4 แชนเนล ENERGY STAR class D amplifiers กำลังขับ 100Watt @ 8 Ohms & 4 Ohms, 200Watt @ 8 Ohms & Ohms (bridged), 350Watt @ 70V/100V

The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms. The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a 70V or 100V output; when in 70V or 100V mode the 80Hz highpass filter is automatically engaged.

Features:

• Up to 200 watts per channel into 4 and 8 ohms
• ENERGY STAR® qualified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down
• Rack-mountable 1U, half rack width enclosure

The post เครื่องขยายเสียง QSC SPA4-100 EnergyStar Power Amplifier appeared first on soundspacethai.com.
