ลำโพง Turbosound MADRID TMS122M Passive Loudspeaker 12″

ลำโพงกลางแจ้ง MADRID TMS122M เป็นตู้ลำโพงแบบ 2-way ขนาด 12 นิ้ว Full Range Loudspeaker for Portable PA and Installation Applications, 800 วัตต์ continuous, 3,200 Watts peak power, 8 โอห์ม

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

฿28,500.00 ฿22,800.00

สอบถามและสั่งซื้อสินค้า

Description

Turbosound MADRID TMS122M 800w

ลำโพงกลางแจ้ง MADRID TMS122M เป็นตู้ลำโพงแบบ 2-way  ขนาด 12 นิ้ว Full Range Loudspeaker for Portable PA and Installation Applications, 800 วัตต์ continuous, 3,200 Watts peak power, 8 โอห์ม

The 2 way full range TMS122M is a switchable passive/bi-amp 12″ 3,200 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS122M is designed to work in conjunction witScreen Shot 2016-06-04 at 3.32.21 PMh TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side fill and floor monitor applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TMS122M loudspeaker features a carbon fibre loaded 12″ low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4″ neodymium motor compression driver mounted on a 90° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8″) birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam.

The TMS122M includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. The dual angle wedge shape design also enables the TMS122M to be utilised in low profile stage monitor applications where improved audience line of sight is of paramount importance. Two Neutrik speakON* NL4 connectors are provided for input and link connections to additional enclosures.

Features:

  • 2 way full range loudspeaker for portable PA and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Ideal for FOH, side and drum fill applications
  • Carbon fibre loaded 12″ low frequency driver with inside/outside wound coil
  • Titanium dome 1.4″ neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Low distortion waveguide provides 90° H x 50° V dispersion
  • 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installation applications
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • Designed and engineered in England

Specifications

TURBOSOUND MADRID TMS122M

Frequency Response 65 Hz – 18 kHz ±3 dB

50 Hz – 20 kHz -10 dB

Nominal Dispersion 90º H X 50º V @ -6 dB Points
Directivity Factor (Q) 10.4
Directivity Index (DI) 10.2
Power Handling (IEC)
Passive 800 W continuous, 3,200 W peak
Bi-amp LF: 800 W continuous, 3,200 W peak

HF: 75 W continuous, 300 W peak

Sensitivity 96 dB (1 W @ 1 m)
Maximum SPL
Passive 125 dB continuous, 131 dB peak
Bi-Amp LF: 125 dB continuous, 131 dB peak

HF: 128 dB continuous, 134 dB peak

Impedance
Passive 8 Ω
Bi-Amp LF: 8 Ω HF: 6 Ω
Crossover Type Passive / Bi-amp, switchable
Components 1 x 12″ (316 mm) LF driver

1 x 1.4″ (36 mm) HF compression driver

Connectors 2 x Neutrik speakON* NL4

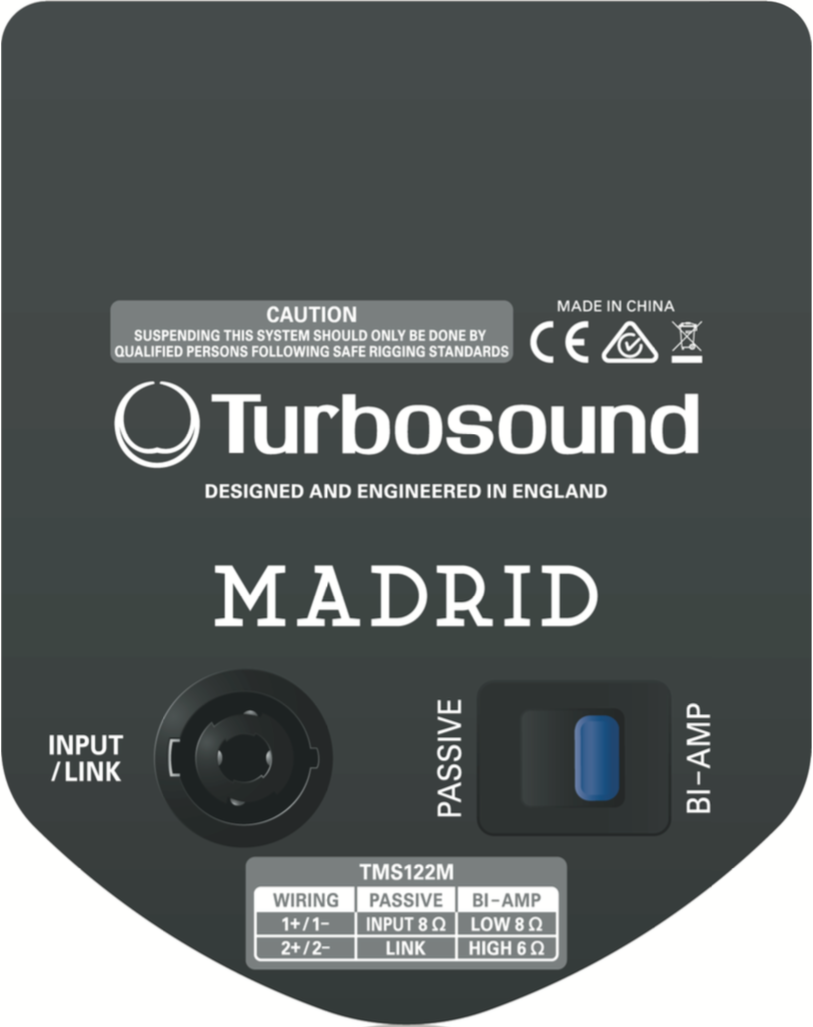

Wiring
Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF
Dimensions (H x W x D) 566 x 349 x 283 mm (22.3 x 13.7 x 11.1″)
Net Weight 18.2 kg (40.0 lbs)
Construction 15 mm (5/8″) birch plywood
Finish Semi matt black paint
Grille Powder-coated perforated steel
Flying Hardware M10 x 2
