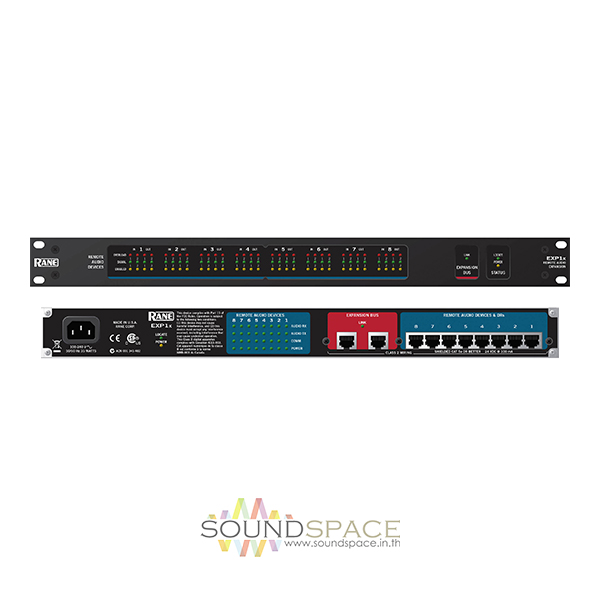

RANE EXP1x Remote Audio Expander

อุปกรณ์ปรับแต่งเสียง Rane EXP1x For HAL1x Expansion, Adds 8 Remote Audio Devices (RAD), 16 Inputs x 16 Output, Daisy-Chain 32 x EXP1x Expanders

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿62,800.00 ฿50,200.00

Quantity

Description

Rane EXP1x RAD Expander for HAL1x

อุปกรณ์ปรับแต่งเสียง Rane EXP1x For HAL1x Expansion, Adds 8 Remote Audio Devices (RAD), 16 Inputs x 16 Output, Daisy-Chain 32 x EXP1x Expanders

The EXP1x from Rane is an expansion module for the HAL1x, adding 16 inputs and 16 outputs from eight Remote Audio Device (RAD) ports via the HAL1x’s expansion bus. Each RAD port offers four channels; two channels each direction, as well as a communication channel, power, ground, and status indicators. The EXP1x uses CAT 5e cables (or better) and is capable of distances up to 500 feet (150 m) from the HAL1x multiprocessor.
Additionally, the RAD ports accept input from any Digital Remotes (DR) modules further expanding user control options. Up to 32 EXP1xs may be daisy-chained to a single HAL1x, adding 512 inputs and 512 outputs.

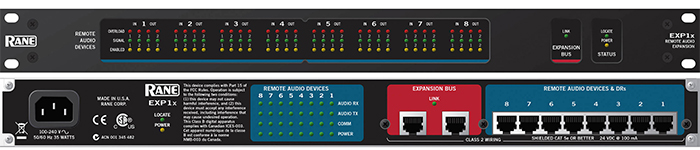

rane_exp1x_expander_1

Features:

  • Adds 16 in x 16 out (8 more RAD ports) to a HAL1x.
  • Up to 8 Digital Remotes or RADs in any combination.
  • Chain up to 32 EXP1x’s to a HAL1x for 512 in x 512 out.



Specifications

HAL1x Expansion Bus
ExpansionExpansion Bus: HAL1x is required, shielded CAT 5e cable with RJ-45 connectors
Audio ChannelsHAL1x Maximum: 512 in x 512 out, plus control channel
Maximum Number of Devices32 maximum, daisy-chain with shielded CAT 5e or better
Maximum Cable LengthMaximum 328.1′ / 100.0 m
RAD Ports
Ports8, RJ45
Audio Channels16 In x 16 Out: Each port 2 in x 2 out, plus control channel, 24-bit, 48 kHz
LengthRAD Port Maximum: 500′ / 300 m, shielded CAT 5e cable or better
DR Port Maximum: 300′ / 100 m, shielded CAT 5e cable or better
PowerEach Port: 24 VDC @ 100 mA maximum
General Specifications
WiringClass 2, all rear panel terminals
Power Requirement100 to 240 VAC 50/60 Hz, 35 W maximum
ConformanceUnit Conformity: CE, FCC, CCSAUS
Rackmount1 U
Dimensions (H x W x D)1.8 x 19.0 x 8.3″ / 4.4 x 48.3 x 21.0 cm
Weight4.6 lb / 2.1 kg
