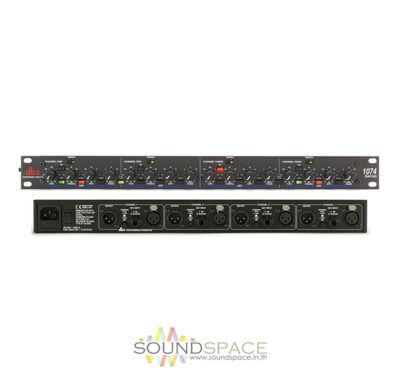

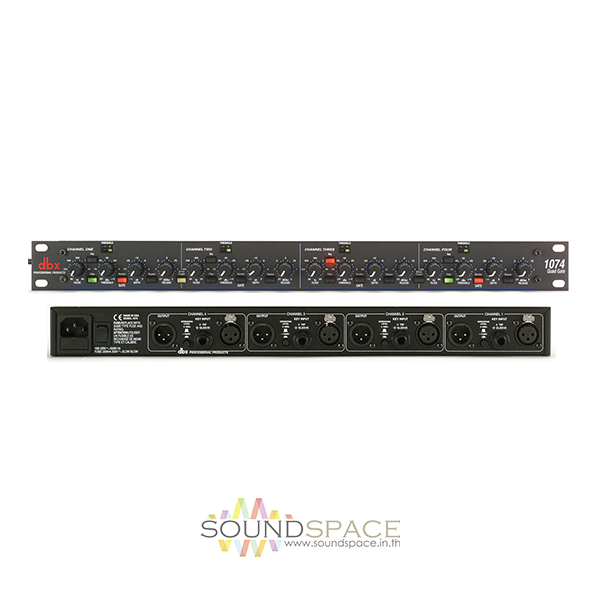

QuadGate dbx 1074 Four Channel Gate

อุปกรณ์ปรับแต่งเสียง dbx 4 independent channels of gating Stereo coupling mode


฿38,000.00 ฿21,900.00



QuadGate 4 Chennel dbxD 1074

อุปกรณ์ปรับแต่งเสียง dbx  4 independent channels of gating Stereo coupling mode

dbx 1074 QuadGate is based on the legendary dbx V2 VCA and offers 4 channels of gating with threshold, depth, and release controls on each channel. It has gold-plated, balanced XLR and 1/4″ inputs and outputs, and 1/4″ key inputs. An internal filter can be independently activated and controlled on a channel-per-channel basis, allowing you to clean up tracks and have frequency selective control on each gate. An absolute must for those who require quad gating.


  • 4 independent channels of gating
  • Independent key filtering
  • Independent threshold and release controls
  • Differentially balanced gold-plated XLR and 1/4″ inputs and outputs
  • True RMS level detection
  • Stereo coupling mode
  • Switchable +4dBu or -10dBv operation per channel
  • Designed, manufactured, and tested in the U.S.A.


FunctionNoise gate
Number of Channels4
Inputs4 x XLR (2-pin hot)
4 x 1/4″ TRS phone Key Input
Outputs4 x XLR (2-pin hot)
Maximum Input Level>+22dBu balanced or unbalanced
Compression ThresholdNot applicable
Compression RatioNot applicable
Attack TimeNot applicable
Release TimeNot applicable
Gate ThresholdOff to -10dB
Gate RateRelease: 0.01 to 3 seconds
Maximum Output Level>+22dBm balanced, >+20dBm unbalanced
Make-up GainNot applicable
Frequency Response0.35Hz to 200kHz, +0/-3dB
Dynamic Range>115 dB, unweighted
Noise<-96dBu, unweighted, 22kHz measurement bandwidth
Dimensions (WxDxH)19″ x 9″ x 1 3/4″
Weight6.9 lbs
SpecialtiesSwitchable filter control allows the user to select the frequency at which gating occurs with ranges from 80Hz to 8kHz
Packaging Info
Package Weight8.7 lb
Box Dimensions (LxWxH)22.2 x 11.5 x 3.7″
