ดิจิตอลมิกเซอร์ MIDAS PRO2C CC IP Install Package

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro2C CC-IP สำหรับงานติดตั้ง (Install Package) Compact Live Digital Console Control Centre with 64 Input Channels, 8 MIDAS Microphone Preamplifiers, 27 Mix Buses and 96 kHz Sample Rate

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

** Click ดูรายการโปรโมชั่น PRO2C-IP Pack

฿618,000.00 ฿494,400.00

สอบถามและสั่งซื้อสินค้า

Description

Midas Pro2C CC-IP Digital Audio Mixing System (Install Package)

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro2C CC-IP สำหรับงานติดตั้ง (Install Package)  Compact Live Digital Console Control Centre with 64 Input Channels, 8 MIDAS Microphone Preamplifiers, 27 Mix Buses and 96 kHz Sample Rate

The ground breaking PRO2C features 64 simultaneous input channels with 8 award-winning MIDAS Microphone Preamplifiers and 27 time-aligned and phase-coherent mix buses. Like all PRO Series consoles, the PRO2C features managed latency and 40 bit floating point processing precision. Designed for use in high-profile live sound applications, the PRO2C sets a new standard of performance and portability in a compact digital console form factor.

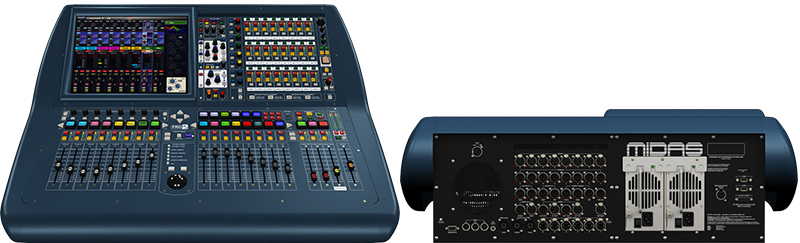

midas_pro2c_digital-mixer

AES50 audio networking technology allows the PRO2C to dynamically assign up to 156 inputs and 164 outputs at 96 kHz sample rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO2C equally at home in theatres and clubs as it is in live concert touring, outside broadcast and music festivals.

Features:

  • Compact live performance digital console control centre with up to 64 simultaneous input channels
  • 8 award-winning MIDAS microphone preamplifiers
  • 27 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rate
  • Advanced MCA (mix control association) channel control and navigation
  • 8 VCA (variable control association) and 6 POPulation groups
  • Up to 28 assignable 1/3 octave KLARK TEKNIK DN370 graphic equalisers
  • Up to 6 multi-channel digital signal processing effects engines
  • 20 MIDAS PRO motorised 100 mm faders
  • Daylight viewable 15” full colour TFT display screen
  • Fully interpolated touch sensitive controls
  • Optional wireless remote control with MIDAS MIXTENDER App for iPad*
  • Dual redundant auto-ranging universal switch-mode power supplies
  • 3-Year Warranty Program**
  • Designed and engineered in the U.K.

Specifications

8x XLR outputs
8x XLR line outputs
4x XLR monitor output
2x XLR master outputs
2x XLR AES3 stereo outputs
2x XLR AES3 stereo inputs
1x XLR talk output
1x XLR talk input
Expandability Multiple 3U rack configurable I/O boxes (optional DL451 rack boxes) can be connected that house 24 x I/O slots in 8 x 8 wide blocks of:
8x XLR mic/line inputs or
8x XLR line outputs or
8x Jack line in and 8x line out
4x stereo AES3 in and 4x (stereo) AES3 out
AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rateMultiple 6U rack splitters (optional DL431) house:
24x splitter mic/line inputs
2x 24 splitter outputs
1x 24 transformer isolated splitter outputs
Processing Input audio processing:
56x dual slope high and low pass filters
56x 4-band parametric EQs with 3 shelf modes
56x 4-mode creative input compressors
56x input gatesMix/output audio processing:
24x output 6-band parametric EQs with shelf and multiple high and low pass modes
24x 5-mode creative output dynamics
8x assignable Klark Teknik output GEQAssignable audio processing:
4x assignable stereo effects (each of these can be reconfigured to generate 4 further GEQs making a total of 24 available on the console)
Mixing Control Assistance 6x auto-mutes
6x surface POPulation groups
8x VCA faders
8x VCA associated POPulation groups
176x MCA faders
176x flipped MCA POPulation groups
1000-scene snapshot automation
Resilience N+1 cable redundancy and dual redundant PSUs
Sampling Frequency 96 kHz
Processor 40-bit
Latency Delay <2 ms input to master (no compensation)
Dynamic Range 106 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Crosstalk At 1 kHz: -100 dB physically adjacent input channels
At 10 kHz: -90 dB physically adjacent input channels
Cut and Mix Transitions Fader/pan cut off at 1 kHz: -100 dB
Fader/pan cut off at 10 kHz: -100 dB
Display Screen 1 x 15″ daylight-viewable color screen
LCD 25 x RGB color
Faders 12x touch-sensitive faders with 1024 steps of resolution
Encoders 31x touch-sensitive with 512 steps
Power Requirements 100 to 240 VAC, ±10%, 50 to 60 Hz
Operating Temperature 41 to 113°F (+5 to 45°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions (W x Depth) Control Center: 34.7 x 28.8″ (882.0 x 730.3 mm)
Weight Control Center: 81.6 lb (37.0 kg)
Packaging Info
Package Weight 265.0 lb
Box Dimensions (LxWxH) 41.0 x 40.0 x 24.0″
