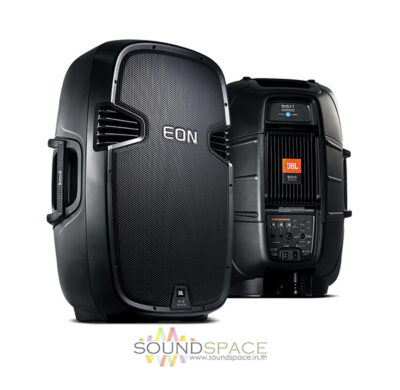

ลำโพง JBL EON 515XT Active Speakers

ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL EON 515XT/230 ตัวตู้ทำด้วยไฟเบอร์ขนาดดอกลำโพง 15″ แบบ 2 ทาง 625 watt, Class-D digital amplifier

ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาใบละ…

฿43,200.00 ฿29,900.00



JBL EON 515XT/230 Portable Self-Powered 15″ 2-Way Bass-Reflex Design

ตู้ลำโพงกลางแจ้งแบบมีกำลังขยาย JBL EON 515XT/230 ตัวตู้ทำด้วยไฟเบอร์ขนาดดอกลำโพง 15″ แบบ 2 ทาง 625 watt, Class-D digital amplifier

The EON 515XT was engineered for durability, high performance and ease of use. We’ve extended the reach of the current EON technology by improving input sensitivity, lowering the noise floor, adding user selectable EQ control and re-voicing the system for peak performance and enhanced audio precision. The intuitive onboard 3-channel mixer with adjustable EQ assures that you’re in control of the sound and the sturdy construction and superior ergonomic design will guarantee a lifetime of reliability and simplicity.


• Highly designed composite enclosures for durability, lightweight, and precise acoustic performance
• True portability weighing only 14.8 kg (32.5 lb)
• Multiple handles with comfort rubber grips for easy transport
• Multi angle enclosure for main PA or floor monitor applications
• Integrated 36 mm pole mount socket with stabilizing securing screw
• Integrated M10 suspension points for easy fixed installation
• 100º H x 60º V asymmetrical wave guide for uniform audience coverage
• 1 5” Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
• 1” throat diameter next generation JBL neodymium compression driver
• Efficient Crown® Hybrid Class-D amplifier technology
• 625 watt high-performance powered speaker system

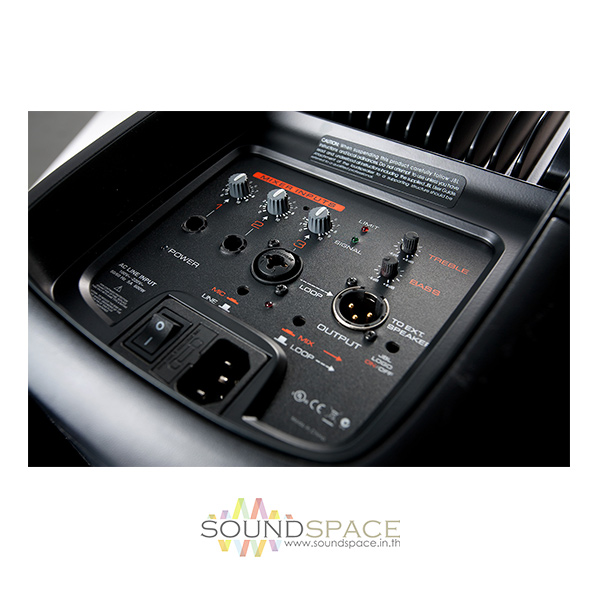

• Intuitive onboard 3-Channel Mixer
• Line level and direct microphone input capability
• User adjustable Bass and Treble controls
• Unique Mix/Loop signal flow function for extended system application
• Easy “Daisy-Chain” connections for extending the system


System Power Rating625 Watts (525 + 100)
Frequency Range (-10 dB)39 Hz -20 kHz
Dimensions (H x W x D)673 mm x 406 mm x 368 mm (26.5” x 16” x 14.5”)
System TypeSelf powered 15”, two-way, bass-reflex
Maximum SPL Output132 dB
Frequency Response (±3 dB)42 Hz – 18 kHz
Input Connectors2 x 1/4” TRS phone jacks balanced/unbalanced 1 x XLR / 1/4” TRS combo jack with XLR loop through
Input Impedance14k ohms
Signal IndicatorsLimit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
Mic: Indicates the MIC/LINE switch is in the “MIC” position
EQ: Individual Bass and Treble controls, center detent, 6 dB cut and boost
Bass +/- 6 dB (200 Hz turnover frequency)
Treble +/- 6 dB (4 kHz turnover frequency)
Mic Input Gain-Infinity to +40 dBu
Line Input Gain-Infinity to +4 dBu (+18 dBu maximum input level)
Amplifier DesignCrown® Class-D
LF Driver1 x JBL 265F-1 380 mm (15”) Differential Drive® integrated woofer with dual 2” voice coils
HF Driver1 x JBL 2414H 25.4 mm (1”) annular polymer diaphragm, neodymium compression driver
Coverage Pattern100º H x 60º V nominal
Crossover Frequency1.7 kHz
MaterialPolypropylene, multi-purpose main & monitor
Suspension / Mounting36 mm pole socket with stabilizing screw, 5 x M10 suspension points
HandlesOne left/right side, one on top, with rubber grip
FinishBlack Granite
GrillePowder coated perforated steel with acoustically transparent cloth backing
Net Weight14.8 kg (32.5 lb)
