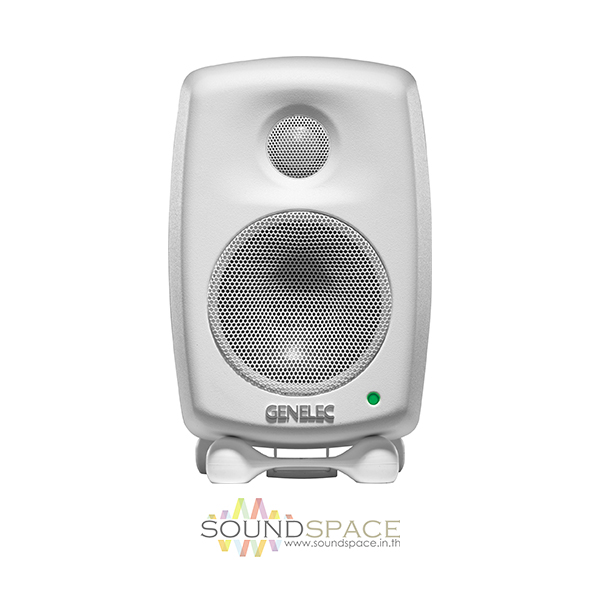

ลำโพงสตูดิโอ GENELEC 8010A WM 3″ Studio Monitor

ลำโพงสำหรับห้องบันทึกเสียง Genelec 8010A WM สีขาว ขนาด 3″ Woofer, 3/4″ Metal Dome Tweeter Active Monitor 25W of Class-D Amplification

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

฿16,800.00 ฿13,500.00

สอบถามและสั่งซื้อสินค้า

Description

ลำโพงห้องบันทึกเสียง Genelec 8010A WM ขนาด 3″ Bi-Amplified Active Monitor

Genelec 8010AWM White Color Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25 W class-D amplifiers to power a 3″ woofer and a 3/4″ metal dome tweeter housed in a die-cast aluminum enclosure.

The monitor utilizes Genelec’s Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 to 20,000 Hz, and provide a maximum SPL of 96 dB.

The amplifiers utilize Genelec’s Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly.

A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface.

Features:

  • 74 to 20,000 Hz Frequency Response
  • 3/4″ Metal Dome Tweeter for Treble
  • 3″ Woofer for Bass
  • Bass Tilt Control
  • Aluminum Minimum Diffraction Enclosure
  • Directivity Control Waveguide
  • Active Crossover and Protection Filters
  • 25W of Class-D Amplification per Driver
  • Intelligent Signal Sensing Circuitry
  • Balanced XLR Input

Specifications

SPL Max short term: ≥96 dB
Filter Lower cut-off frequency, -3 dB: ≤ 73 Hz
Upper cut-off frequency, -3 dB: ≥ 21,000 Hz
Frequency Response 74 to 20,000 Hz (±2.5 dB)
67 to 25,000 Hz (-6 dB)
Drivers 1x 3/4″ tweeter
1x 3″ woofer
Harmonic Distortion At 80 dB SPL at 1 m on axis
70 to 400 Hz: < 3%
>400 Hz: < 0.5%
Input 1x Balanced XLR
Input Impedance 10 kΩ
Input Level For 100 dB SPL output at 1 m: -6 dBu (sensitivity -10 dB off)
Level control range relative to max output: -10 dB (sensitivity -10 dB on)
Crossover Frequency Bass/Treble: 3,000 Hz
Tilt Bass control in -2 dB steps: 0 to -6 dB at 100 Hz
Amplifier Output Bass with 8 Ω load: 25 W
Treble with 8 Ω load: 25 W
THD + N ≤ 0.08%
Voltage 100 to 240 VAC
Operating Range Voltage: ±10%
Power Consumption Standby: <0.5 W
Idle: 5 W
Full output: 30 W
Dimensions (H x W x D) With ISO stand: 7.67 x 4.76 x 4.57 (195 x 121 x 116 mm)
Without ISO stand: 7.12 x 4.76 x 4.57 (181 x 121 x 116 mm)
Weight 3.3 lb (1.5 kg)
Packaging Info
Package Weight 4.4 lb
Box Dimensions (LxWxH) 12.3 x 6.6 x 6.0″
