Focusrite Scarlett 2i4 Portable USB Audio Interface

ออดิโอ อินเตอร์เฟส Focusrite Scarlett 2i4 2 in / 4 out เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียงใน, 2 Microphone Preamps with Gain Controls, Focusrite Red 2 and Red 3 Plug-In Suite, รองรับ Mac OS X, Windows

(Discontinued) ปัจจุบันเปลี่ยนรุ่นเป็น ออดิโออินเตอร์เฟส Focusrite Scarlett 4i4 (3rd Gen) USB Audio Interface

฿8,490.00

สอบถามและสั่งซื้อสินค้า

Description

Focusrite Scarlett 2i4 USB Audio Interface (DISCONTINUED)

ออดิโอ อินเตอร์เฟส Focusrite Scarlett 2i4  2 in / 4 out เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียง, 2 Microphone Preamps with Gain Controls, Focusrite Red 2 and Red 3 Plug-In Suite, รองรับ Mac OS X, Windows

Scarlett 2i4 from Focusrite is a two-input/four-output USB audio interface featuring two Focusrite preamps with phantom power and 10 dB pads. The unit is USB bus-powered and housed in a compact, anodized-aluminum unibody chassis, making it an ideal choice for musicians and digital DJs.

Compatible with both Mac- and Windows-based computers, the interface features two Neutrik combo XLR/TRS 1/4″ inputs that accept microphone-, line-, and instrument-level sources. Four RCA outputs and a headphone output provide the digital performer and laptop DJ with convenient connectivity.

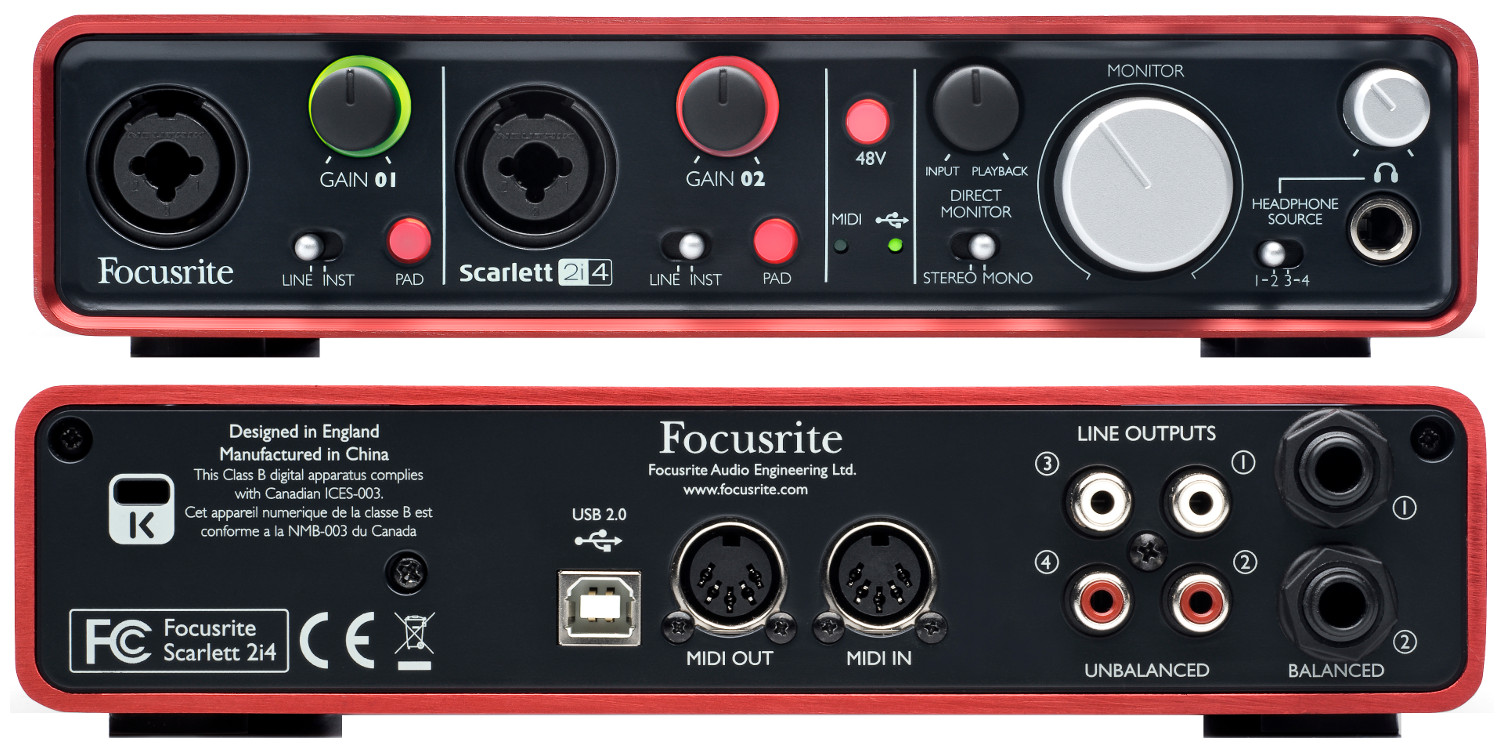

focusrite-SCARLETT2I4-0

Direct monitoring is available to avoid latency during recording and signal halos surrounding the gain knobs provide visual feedback of proper input levels. MIDI I/O with activity indicators allows for connecting synthesizer or other MIDI related modules. A comprehensive selection of cross-platform software is included.

The Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. The plug-ins allow for conveniently exploring the sound of the hardware originals from within Pro Tools (10 and above), along with other audio software. The software is a free download for new and current owners of the Scarlett 2i4.

In addition to the Red 2 and Red 3 Plug-in Suite, the interface includes the Softube Time and Tone Pack. Modeled after the Drawmer 1973 FET Stereo compressor hardware, the Drawmer S73 Intelligent Master Processor is a plug-in that aids in balancing and shaping a mix. TSAR-1R Reverb adds space, depth, and width to a sound. Change settings with a single slider, from realistic three-dimensional rooms to dramatic and dreamlike halls. Tube Delay is an echo effect that can go from clean to rude by overdriving its three modeled-tube stages – delivering everything from realistic room echoes, to rockabilly-style slap back, to dub reggae echo. Saturation Knob is a modeled output distortion unit that adds grit and warmth – use it to fatten up bass lines, add some harmonics and shimmer to vocals, or simply destroy a drum loop.

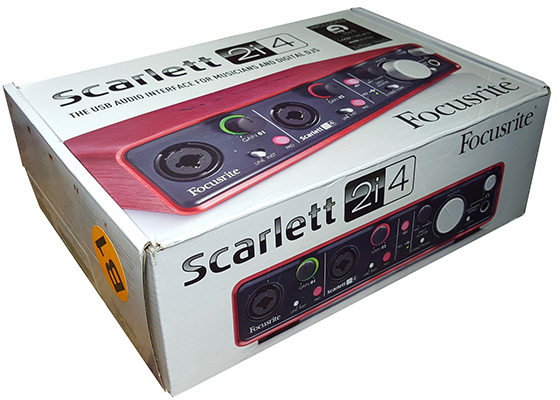

focusrite_scarlett_2i4_4

Features:

  • Two microphone preamps with global phantom power and per channel 10 dB pads
  • Neutrik combo XLR/TRS 1/4″ input connectors with line/instrument switches
  • Balanced and unbalanced outputs
  • MIDI In and Out ports for connecting synthesizer modules or digital pianos
  • Direct monitor function with Stereo/Mono switch for avoiding input latency while recording
  • Headphone source switch (outputs 1-2 or 3-4)
  • Gain halos around the gain knob for each input provide monitoring of correct signal level
  • Includes software for Mac and Windows
  • Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware
  • Softube Time and Tone Bundle
  • Rugged-aluminum unibody chassis
  • USB bus-powered

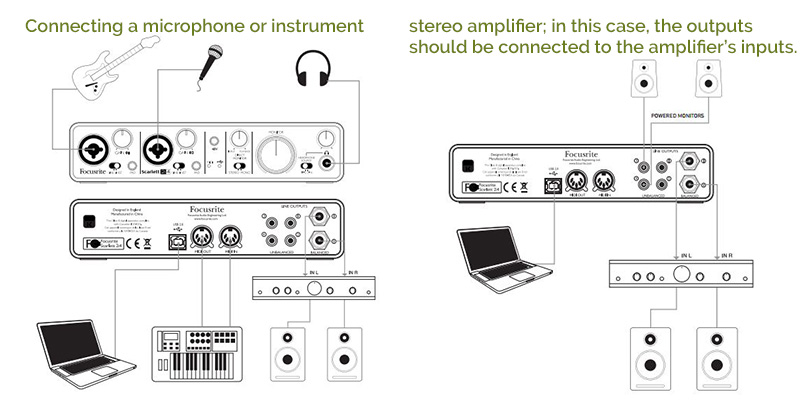

ตัวอย่างการต่อ Focusrite Scarlett 2i4

focusrite_scarlett_2i4_2

Capture 2

Capture 3



Specifications



Converters 24-bit
Sample Rates 44.1, 48, 88.2 and 96 kHz (internal clock only)
Analog In 2 x XLR/TRS 1/4″ Combo Microphone/Line (front panel)
Analog Outputs 2 x 1/4″ TRS Line (rear panel)
4 x RCA Line (rear panel)
1 x 1/4″ TRS Headphone (front panel)
Digital Input Connectors No
Digital Output Connectors No
MIDI In/Out 2 x 5-pin DIN MIDI In, Out
Other Connectors 1 x 6-pin FireWire IEEE1394 socket
Headphone Output Yes with volume control
Maximum Input Level Microphone: +3.5 dB
Line: +26 dBu (at 1% THD+N)
Instrument: +3 dBu (+12 dBu pad in)
Gain Range Microphone: +10 dB to +55 dB (0 dB to +45 dB with pad engaged)
Line: -10 dB to +35 dB (-20 dB to +25 dB with pad engaged)
Instrument: +10 dB to +55 dB
Output Impedance <12 ohms
Nominal Output Level +10 dBu, balanced (0 dBFS)
+5.5 dBu, unbalanced (0dBFS)
Power Output 24 mW into 32 ohms
Frequency Response Input: 20 Hz to 20 kHz, +0/-0.1 dB
Output: 20 Hz to 20 kHz, +/-0.2dB
THD + N Microphone: <0.002% (minimum gain, -1 dBFS with 20 Hz/22 kHz band-pass filter)
Line Inputs: <0.01 A-weighted (+16 dB input gain, -1 dBFS at output with 22 Hz/22 kHz band-pass filter)
Instrument: <0.0025 A-weighted (+16 dB input gain, -1 dBFS at output with 22 Hz/22 kHz band-pass filter
Line Outputs: <0.03 %, unbalanced (0 dBFS input 22 Hz/22 kHz band-pass filter)
Noise Microphone EIN: <-120 dB @ 55 dB of gain with 150 ohm termination (20 Hz/22 kHz band-pass filter)
Line Noise: -90 dBu (22 Hz/22 kHz band-pass filter)
Instrument Noise: -87 dBu (20 Hz/22 kHz band-pass filter)
Line SNR: >100 dB
Crosstalk Input to Input: >90dB
Output to Output: >90 dB
Input to Output: >85 dB
Digital Performance A/D Dynamic Range: >105 dB, A-weighted (all inputs)
D/A Dynamic Range: >104 dB, A-weighted (all outputs)
Converter Chipset A/D Dynamic Range: 114 dB
Converter Chipset D/A Dynamic Range: 114 dB
Meters Ring LED lit Green: Signal present (-24 dBFS)
Ring LED lit Red: Signal overload (0 dBFS), peak held for approximately 1 second
Power Requirements USB bus-powered
System Requirement Mac:
OS X 10.6.5 (Snow Leopard) to OS X 10.10 (Yosemite)
Windows:
Windows 7 (32- and 64-bit), Windows 8, and Windows 10
Dimensions (WxDxH) 8.3 x 5.5 x 1.9″ (210 x 140 x 48 mm)
Weight 2 lb (890 g)
Packaging Info
Package Weight 2.8 lb
Box Dimensions (LxWxH) 11.2 x 7.7 x 4.2″

Download

Focusrite Scarlett 2i4 Portable USB Audio Interface

Software

Scarlett 2i4 on Mac

MAC USERS

The Scarlett 2i4 runs in class-compliant mode on a Mac. No driver is required. Simply plug and play.

If you have previously installed the Focusrite USB driver and are experiencing glitchy audio on Mavericks you can put your unit into class compliant mode by following the instructions HERE.

If you have installed a Novation device previously please refer to this answerbase article.


2i4 USB 2.0 Driver – Windows

USB2.0 Driver – Win(2.5.1)

Fixes:

  • Fixes the cause of some blue screens when connecting to/disconnecting from USB 3.0 ports on certain systems
  • Fixes a problem where some users were unable to open the ASIO driver in their DAW

Tested with:

  • Windows 7
  • Windows 8

WINDOWS XP USERS

See this article for information.

MAC USERS
The 2i4 runs in class-compliant mode on a Mac. No driver is required. Simply plug and play.

PRO TOOLS 11 WINDOWS USERS

If you’re experiencing performance issues please see this article.

User Guides
