คอนโทรล DBX PMC16 Personal Monitor Controller

มอนิเตอร์คอนโทรลเลอร์ DBX PMC16 16 Ch Monitor Mixer with Level, Pan, Mute, Solo, & Reverb Send Control



฿35,900.00 ฿23,900.00

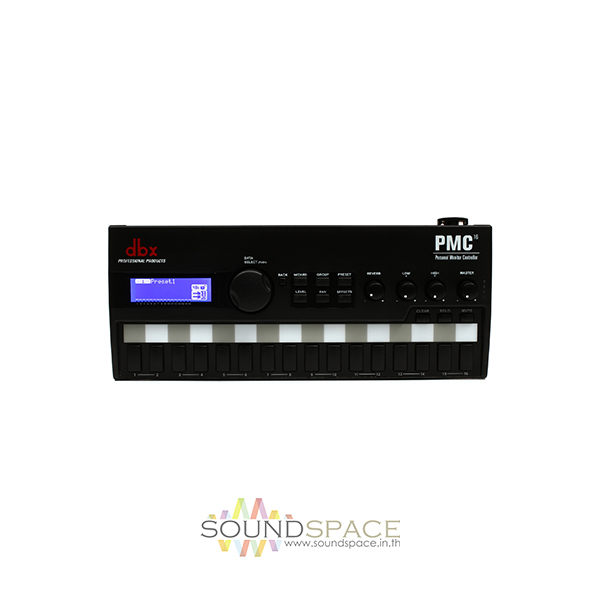

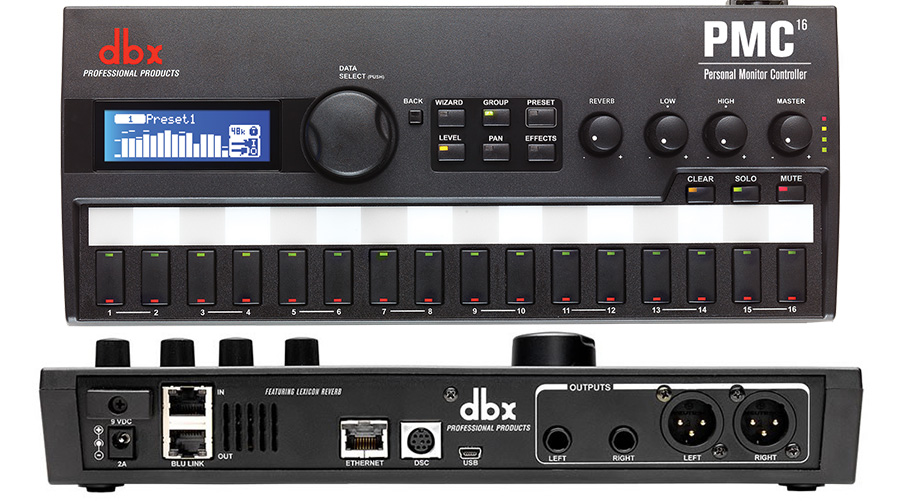

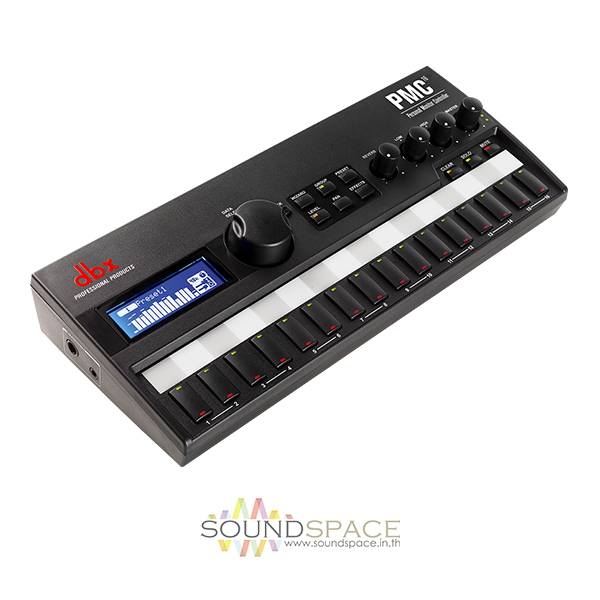

PMC16 Personal Monitor Controller

มอนิเตอร์คอนโทรลเลอร์ DBX PMC16 16 Ch Monitor Mixer with Level, Pan, Mute, Solo, & Reverb Send Control

The PMC16 is a 16 channel personal monitor controller which allows the user to create a custom mix from 16 channels of audio. Designed to be used with the dbx TR1616 or any other BLU link compatible device, the PMC16 allows for monitoring with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Multiple PMC16s can be daisy chained using CAT5e cable allowing each user to receive 16 channels of high-resolution digital audio and create their own personalized mix to suit their monitoring needs. The PMC16 comprises a 16 channel mixer section with full control of levels, panning, effect send levels, muting, and soloing. Onboard Lexicon© reverb provides the finishing touch. The PMC16’s output processing section includes: stereo width control, wedge monitor compensation EQ, high and low master EQ, master level control, and dbx limiting. With a Setup Wizard for ease of configuration, full 16 channel level metering, channel grouping, 16 preset locations for future recall of configurations and mixes, and an intuitive yet powerful user interface


  • 16 Channel Monitor Mixer with Level, Pan, Mute, Solo, & Reverb Send Control
  • 16 Preset Locations for Mix & Configuration Recall
  • LCD Display with 16 Channel Metering
  • Built-In Lexicon© Reverb
  • dbx PeakStopPlus™ Limiting
  • Global High & Low EQ
  • Global Master Level Control
  • Global Stereo Width Control
  • BLU Link High Bandwidth, Fault Tolerant Digital Audio Bus
  • XLR & 1/4” Stereo or Mono Outputs
  • 1/8” & 1/4” Headphone Outputs
  • Setup Wizard for Easy Configuration
  • Supports 48 kHz & 96 kHz Sampling Rates
  • Channel Linking, Grouping, & Multi-Select Capabilities
  • Supports up to 60 PMC16s on a Single BLU Link Ring
  • Built-In Sturdy Mic Stand Mount
  • USB Port for Firmware Updates


Frequency Response+0/-0.2 dB, 20 Hz to 20 kHz (Measured at 0 dBu output level)
Dynamic Range> 108 dB unweighted 22 Hz to 22 kHz bandwidth
> 112 dB A-weighted
THD + N< 0.005%, 20 Hz to 20 kHz (Measured at 0 dBu output level)
Crosstalk< 97 dB, 20 Hz to 20 kHz
Bit Depth24-bit
Sample Rate48 kHz or 96 kHz
Nodes60 maximum
Latency4/Fs (0.08 ms @ 48 kHz, 0.04 ms @ 96 kHz) per node

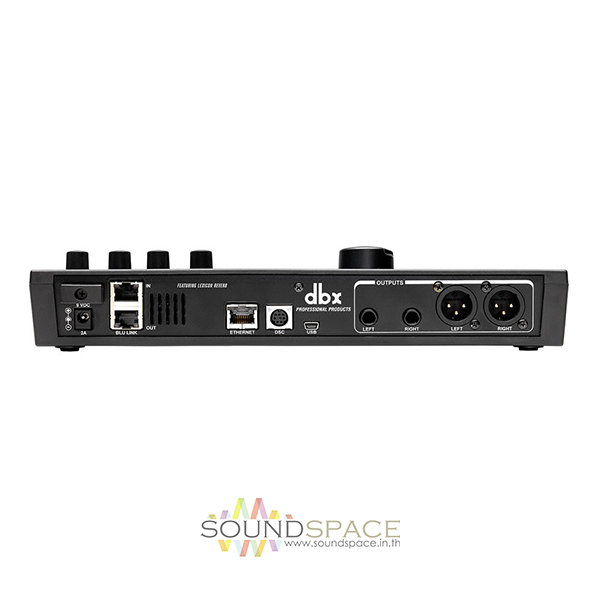

OutputsAnalog: XLR & 1/4″
Headphone: 1/8″ & 1/4″
Output Level20 dBu maximum
Output Impedance40 Ω
Power900 mW per channel at 50 Ω impedance (1/8″ and 1/4″ jacks are in parallel)
AdapterPS0920DC-01 (100 to 240 VAC, 50/60 Hz)
Power Consumption18 W
Power Requirements9 VDC, 2.0 A
Connector2 x RJ-45 Ethernet
Cable Length328′ (100 m) between devices (CAT5e cable)
Dimensions (H x W x D)2.12 x 11.31 x 4.81″ (5.4 x 28.7 x 12.2 cm)
WeightMain Unit: 2.26 lb (1.03 kg)
Power Supply: 0.31 lb (0.14 kg)
