เพาเวอร์แอมป์ CREST AUDIO CC4000 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง CREST AUDIO CC4000 มีกำลังขับ 2×1350 วัตต์/4 Ohms,2×800 วัตต์/ 8 Ohms, 2 Ohms,2×2000 วัตต์/ 8 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿63,000.00 ฿32,000.00
Description

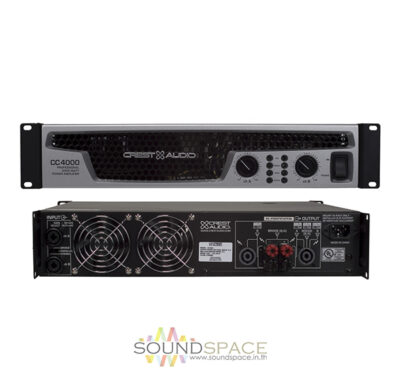

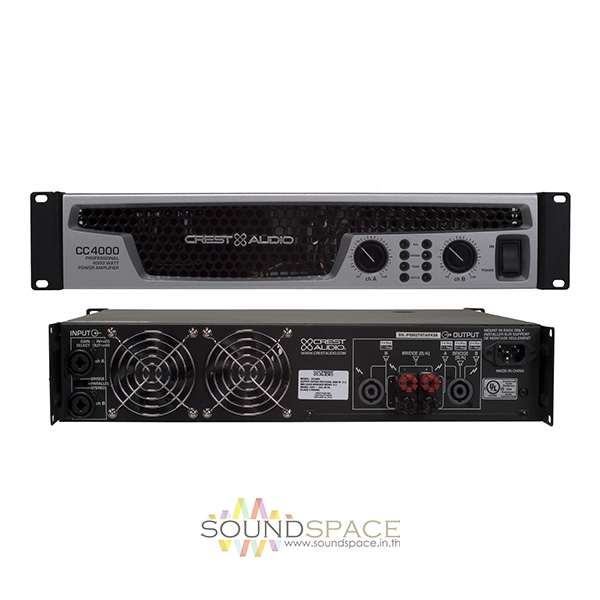

CREST AUDIO CC4000 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง CREST AUDIO CC4000 มีกำลังขับ 2×1350 วัตต์/4 Ohms,2×800 วัตต์/ 8 Ohms, 2 Ohms,2×2000 วัตต์/ 8 Ohms
The 2RU CC4000 Professional Power Amplifier from Crest Audio is designed to deliver stable high power output for running main systems, monitors and subwoofers. The amplifier can be operated in parallel, stereo, or mono bridged mode. It features two channels with independent 100 Hz crossovers and a power rating of up to 4000W bridged at 4Ω. This amplifier features 16 power devices per channel, and a switched-rail class H stage and triple-compound design to provide low distortion and thermal stability.
The on-board protection suite includes Crest Audio’s proprietary ACL (Automatic Clip Limiting) circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers. It also features Temperature, Signal, and Active safeguards for each channel, all referenced on the front panel with LED indicators along with the ACL indicators. It features a toroidal power transformer and a magnetic circuit breaker On/Off switch. This unit is cooled by two variable speed fans with back-to-front airflow.
Features:
- Toroidal power transformer
- Magnetic circuit breaker on/off switch
- Cooled by Dual variable speed fans with back-to-front airflow
- Mode selector switch for stereo, parallel and bridged-mono operation
- Input sensitivity selection
- Balanced female XLR, 1/4″ TRS combi jacks inputs
- Speakon and five-way binding post outputs
- Recessed, stepped attenuators
- Front panel circuit-breaker switch
- 16-gauge steel chassis, cast aluminum front panel
Specifications
| Power Rating | Bridge 4 Ω: 4000 W @ 1 kHz, < 0.1% THD
2 Channels x 2 Ω: 2,000 W per channel @ 1 kHz, < 0.1% THD, both channels driven 2 Channels x 4 Ω: 1,350 W per channel @ 1 kHz, < 0.05% THD, both channels driven 2 Channels x 8 Ω: 800 per channel W @ 1 kHz, < 0.05% THD, both channels driven 1 Channel x 2 Ω: 2,550 W @ 1 kHz, < 0.1% THD 1 Channel x 4 Ω: 1,600 W @ 1 kHz, < 0.05% THD 1 Channel x 8 Ω: 900 W @ 1 kHz, < 0.05% THD |
| Damping Factor | > 500:1 @ 20 Hz to 1 kHz @ 8 Ω |
| Input Sensitivity | 4 Ω Rated power, 1 kHz: 1.88 V ± 3%
2 Ω Rated power, 1 kHz: 1.62 V ± 3% |
| Input Impedance | 15 kΩ balanced |
| Minimum Load Impedance | 2 Ω |
| Maximum RMS Voltage Swing | 93 V |
| Frequency Response | 10 Hz to 100 kHz, +0 dB, -2 dB @ 1 W |
| Power Bandwidth | 10 Hz to 35 kHz, +0 dB, -3 dB @ rated 4 Ω power |
| Total Harmonic Distortion (THD) | 2 Channel x 2 Ω: < 0.2% @ 1,475 W per channel, 20 Hz to 20 kHz
2 Channel x 4 Ω: < 0.1% @ 1,150 W per channel, 20 Hz to 20 kHz 2 Channel x 8 Ω: < 0.1% @ 700 W per channel, 20 Hz to 20 kHz |
| Input CMRR | > – 65 dB @ 1 kHz |
| Voltage Gain | x40, 32 dB
x20, 26 dB |
| Crosstalk | > -65 dB @ 1 kHz @ rated power @ 8 Ω |
| Hum and Noise | > -112 dB, “A” weighted referenced to rated power @ 8 Ω |
| Slew Rate | > 15 V/μs |
| Phase Response | + 5 to -15°, 20 Hz to 20 kHz |
| Connectors | Rear Panel:
1 x 3-pin IEC, AC power input 1 x Speakon, channel A output 1 x Speakon, channel B output 2 x Speaker terminal, channel A output 2 x Speaker terminal, channel B output 1 x Combo 1/4″ XLR, channel A input 1 x Combo 1/4″ XLR, channel B input |
| Controls | Front Panel:
1 x Channel A rotary knob 1 x Channel B rotary knob 1 x AC Power On/Off switch Rear Panel: 1 x Mode selection switch (bridge / parallel / stereo) 1 x Gain select switch (Out: x40 (32 dB) / In: x20 (26 dB) |
| LED Indicators | Front Panel:
2 x Active 2 x Temperature 2 x Channel Signal 2 x ACL (Automatic Clip Limiting) |
| Cooling | 2 Temperature dependent variable speed 80 mm DC fans (rear panel) |
| Power Requirements | Current Draw @ 1/8:
1,825 W @ 2 Ω 1,185 W @ 4 Ω 720 W @ 8 Ω Current Draw @ 1/3: 4,535 W @ 2 Ω 2,975 W @ 4 Ω 1,835 W @ 8 Ω |
| Dimensions (H x W x L) | 3.5 x 19.0 x 14.9″ (8.9 x 48.3 x 37.8 cm)
+Ears and Connectors: 1.25″ (3.2 cm) |
| Weight | 43.3 lb (19.64 kg) |
