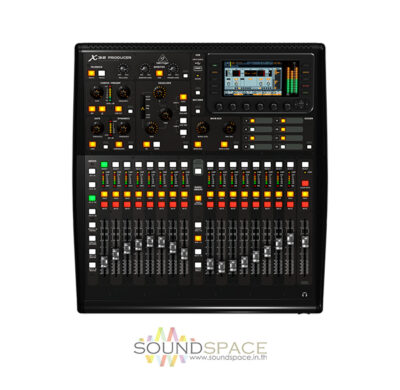

มิกเซอร์ดิจิตอล BEHRINGER X32 Producer Digital Mixer

ดิจิตอลมิกเซอร์ แบบเข้าแร็ค BEHRINGER X32 Producer 40-Input, 25-Bus พร้อมกับปรีแอมป์ของ midas 16 Programmable, 17 moter fader, 32-Ch Audio Interface สามารถใช้ iPad/iPhone ควบคุมได้

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿130,000.00 ฿54,000.00

สอบถามและสั่งซื้อสินค้า

Description

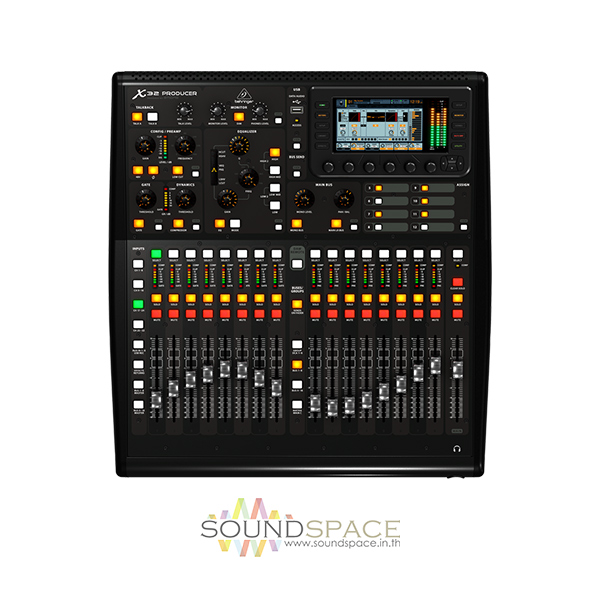

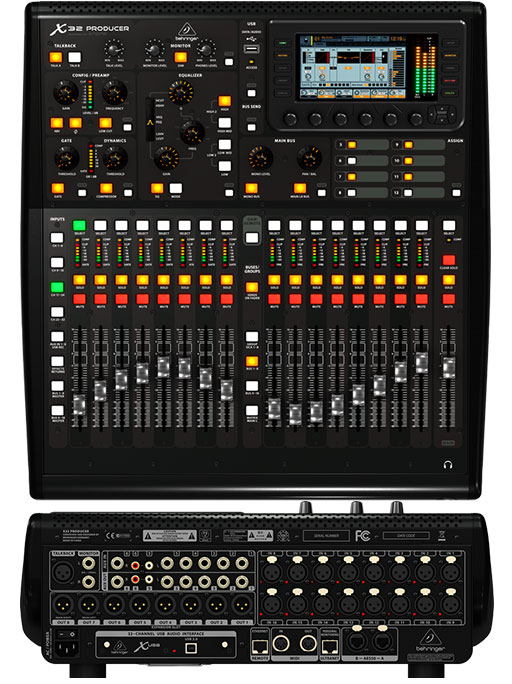

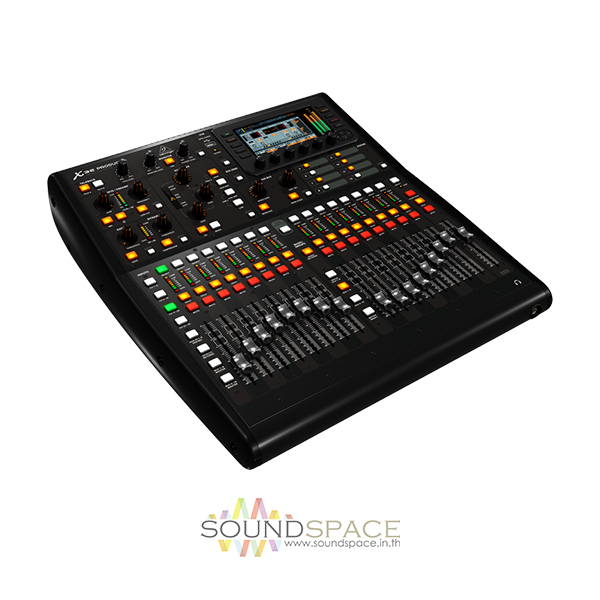

ดิจิตอลมิกเซอร์ BEHRINGER X32 Producer

ดิจิตอลมิกเซอร์ แบบเข้าแร็ค BEHRINGER X32 Producer 40-Input, 25-Bus พร้อมกับปรีแอมป์ของ midas 16 Programmable, 17 moter fader, 32-Ch Audio Interface

The X32 Producer 40-Channel, 25-Bus Digital Mixing Console from Behringer provides a wealth of features in a compact design, ideal for professional live and recording applications. The mixer features 16 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4″ Aux inputs and outputs and two 1/4″ headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature Klark Teknik SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.

behringer_x32_producer

The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers “unlimited” dynamic range, no internal overload, and near-zero latency between inputs and outputs for top-quality performance. The mixer also has 6 mute groups and 8 DCA groups.

The intuitive interface offers ease-of-use with a dedicated channel strip section that has direct-access controls. There is also a high-resolution 5″ color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 17 motorized 100mm faders for extensive user-definable control.

The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.

Other features of the X32 Producer include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions.

Free Control Software Applications
Behringer iPad and iPhone apps for professional remote operation are free downloads on the Apple App Store. All of the X32’s features can be managed concurrently from various locations and instances of the XiQ, XiControl, and XControl apps.
Versatile and Expandable
The X32 Producer can act as the nucleus of a flexible and expandable audio system. The built-in 32 x 32 USB recording interface, 8 stereo effects engines, zero-latency monitoring and 100% total recall deliver the tools to handle a wide variety of projects

Features

  • 40-input channel, 25-bus rack-mountable digital mixing console for Studio and Live application
  • 16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
  • 17 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
  • 8 XLR outputs plus 6 additional line in/outputs, a phones connector and a talkback section with XLR mic input
  • 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI* and Mackie Control*
  • iPad* and iPhone* apps for professional remote operation available free of charge—no host PC required
  • High-resolution 5″ day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA groups and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L* and PCM70*, EMT250* and Quantec QRS* etc.
  • 40-Bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency for mixing a total of 48 signals on 25 buses
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready** via AES50 ports, featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
  • Additional user-definable control section allows to set up short-cuts to your favorite views or parameters
  • ULTRANET connectivity for BEHRINGER’s P16 Personal Monitoring System**
  • Networked remote control via Ethernet for show setups with on-screen software editor
  • Built-in expansion port for audio interface cards or digital networking bridges
  • MIDI In/Out for remote scene recall or controlling other MIDI equipment
  • Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
  • Conceived and designed by BEHRINGER Germany



Specifications

Processing
Number of Channels 32 input channels
8 aux in channels
8 FX return channels
16 buses, 6 matrices
Main LRC
Effects Engine Internal:
8 true-stereo
16 mono
Scene File Memory 100 total recall scenes (including preamp and fader)
Signal Processing 40-bit floating point
Conversion Cirrus Logic A/D CS5368, D/A CS4385
24-bit @ 44.1 / 48 kHz
114 dB dynamic range
Latency Timings Local I/O: 0.8 mS (local in > console processing > local out)

Networked I/O: 1.1 mS (stagebox in > console processing > stagebox out)

Total I/O Channels 150 / 158

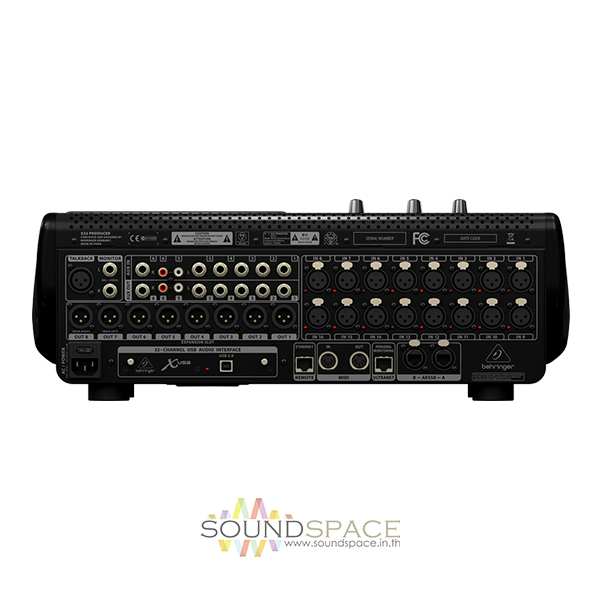

Connectors
Mic/Line Inputs 16 x XLR balanced
Line Outputs 8 x XLR balanced
AUX Inputs 6 x 1/4″ TRS
2 x RCA line-level (1 x L/R)
AUX Outputs 6 x 1/4″ TRS
2 x RCA line-level (1 x L/R)
Talkback Mic Input 1 x XLR (no internal mic)
Monitor Outputs 2 x 1/4″ TRS balanced
Headphone Output 1 x 1/4″ TRS stereo
AES50 Ports 2 x SuperMAC
Expansion Port 1 x 32-channel I/O card, various standards available
P-16 Connector 1 x Ultranet (no power supplied)
MIDI In/Out 1 / 1
Ethernet Port 1 x RJ45 (for remote control)
USB Port 1 x USB 2.0 type A (for audio and data import/export)
Microphone Inputs
Designer MIDAS
THD + Noise < 0.006% A-weighted (20 dB gain, 0 dBu out)
Input Impedances 5kΩ unbalanced
10kΩ balanced
Maximum Input Level +23 dBu without clipping
Phantom Power +48V, switchable per channel
Equivalent Input Noise -128 dBu (input shorted)
CMRR > 70 dB @ 20 dB gain (typical)
> 80 dB @ 40 dB gain
Performance
Frequency Range 10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
Dynamic Range Analog in to analog out: 106 dB
A/D dynamic range, preamp and converter: 109 dB
D/A dynamic range, converter and output: 108 dB
Cross-Talk Rejection 100 dB @ 1 kHz, adjacent channels
Residual Noise -87 dBu, A-weighted
Input Impedance TRS: 40kΩ balanced, 20kΩ unbalanced
Maximum Input Level TRS: +16 dBu without clipping
Output Level XLR: +4 dBu, nominal; +21 dBu, maximum
TRS: +4 dBu, nominal; +16 dBu maximum
Output Impedance XLR: 75Ω, balanced or unbalanced
TRS: 300Ω balanced, 150Ω unbalanced
Headphone Output Impedance: 40Ω
Level: +25 dBm (stereo)
Indicator
Display 5″, 800 x 480, 262k color TFT (Main Screen)
Metering 3 x 24-segment LED meters
Power
Power Supply 100 to 240V (50/60 Hz) switch-mode autorange
Power Consumption 120 W
Dimensions & Weight
Dimensions (W x D x H) 19.3 x 19.9 x 6.4″ (490 x 506 x 163 mm)
Weight 25.1 lb (11.4 kg)
Packaging Info
Package Weight 36.0 lb
Box Dimensions (LxWxH) 25.0 x 23.0 x 11.0″
