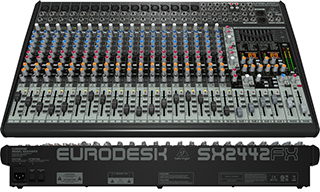

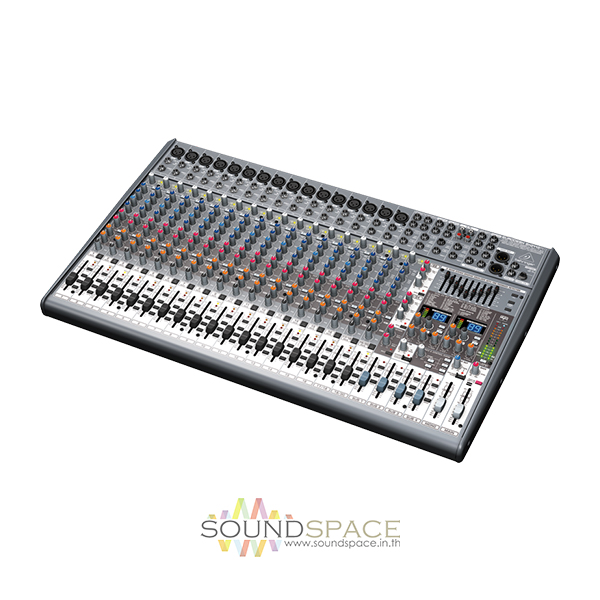

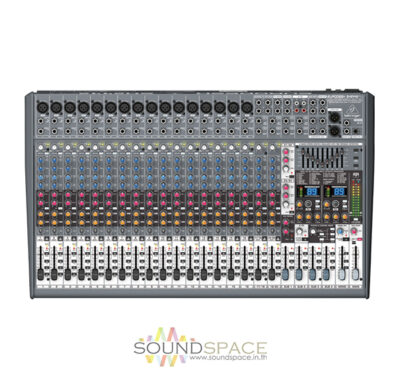

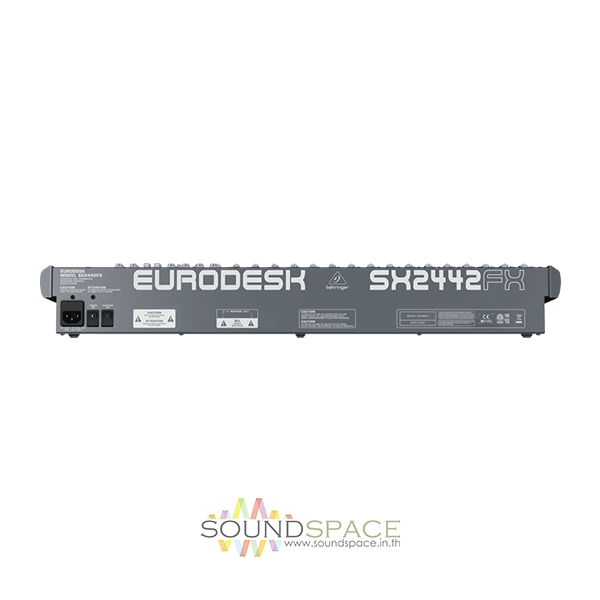

เครื่องผสมสัญญาณเสียง EURODESK SX2442FX 24-Input 4-Bus Studio/Live Mixer with XENYX Mic Preamplifiers, British EQs and Dual Multi-FX Processor
เครื่องผสมสัญญาณเสียง 24-Input 4-Bus Studio/Live Mixer with XENYX Mic Preamplifiers, British EQs and Dual Multi-FX Processor
The SX2442FX EURODESK mixer is designed to meet the needs of studio and live mixing applications, with a comprehensive set of features that combine sonic excellence and a full complement of mixing and sound modification tools.
This 4-bus mixer features ultralow noise, high-headroom XENYX microphone preamps. 24 channels (20 mono, 2 stereo). Mono input channels feature three-band, semi-parametric mid-range EQ with Neo-classic “British” response. Stereo input channels provide precise four-band equalization. Each input has four aux sends with two sends switchable between pre/post fader, for a flexible mix of monitor and effects applications.
External signal processing racks can be largely eliminated, thanks to the two integrated effects processors and stereo 9-band graphic EQ. One-hundred 24-bit / 96kHz studio-quality effects presets can be called-up and assigned to one or both internal effects buses. Main or Monitor output EQ is set and fine-tuned with the intuitive FBQ Feedback Detection display.
When external processing is required, Behringer’s SX Series provides extensive insert patch-points for input channels and main outputs. The mixer’s Master section offers a wealth of features such as multiple aux and stereo returns, switchable SIP / PFL monitoring, Talkback, metering and more.
An internal auto-ranging power supply (100 240V), gold-plated XLR output connectors and rugged steel construction ensure that this EURODESK console will travel anywhere to tackle any recording or mixing task, with pristine audio quality and a minimum of external gear.
|Inputs – Mic Preamps||16 x XLR|
|Inputs – Line||20 x TRS|
|Inputs – Other||2 x RCA|
|Outputs – Main||2 x XLR, 2 x TRS|
|Outputs – Other||2 x RCA|
|Headphones||1 x 1/4″|
|Send/Return I/O||4 x TRS, 4 x TRS|
|Aux Sends||2 x Pre/Post, 2 x Pre|
|Busses/Groups||4 x Groups|
|Faders||24 x 100mm|
