เพาเวอร์แอมป์ AUSTRALIAN-MONITOR AMH3600 Power Amplifier

เครื่องขยายเสียงกลางแจ้ง AUSTRALIAN-MONITOR AMH3600 2RU มีกำลังขับ 2×1800 วัตต์ 2 Ohms, 1100วัตต์ 4 Ohms, 800 วัตต์ 8 Ohms, Class H operation

ราคาสินค้า by order 30-45 วัน

สอบถามและสั่งซื้อสินค้า

Description

AUSTRALIAN-MONITOR AMH3600 Power Amplifier

เครื่องขยายเสียงกลางแจ้ง AUSTRALIAN-MONITOR AMH3600 2RU มีกำลังขับ 2×1800 วัตต์ 2 Ohms, 1100วัตต์ 4 Ohms, 800 วัตต์ 8 Ohms, Class H operation

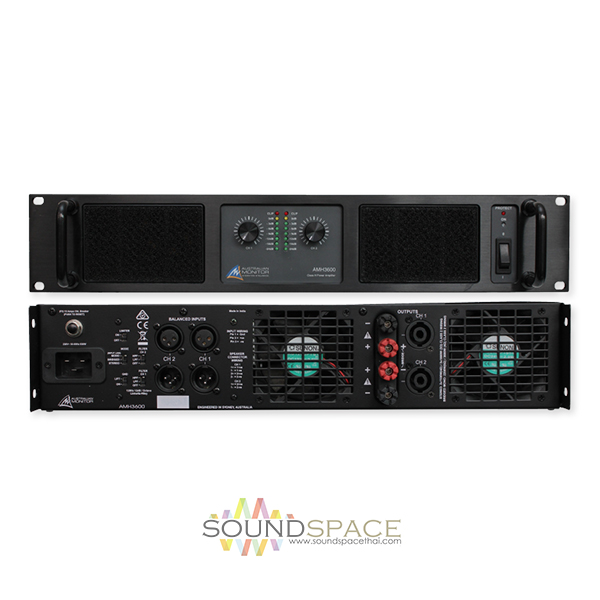

The AMH3600 is a 2RU class H stereo power amplifier delivering 3600W into mono, stereo or bridged outputs. The
 AMH3600 features individual front panel volume control, level meter, clip and protection indicators.

The AMB series of power amplifiers have been specifically designed and built to offer Australian Monitor customers a reliable, outstanding value for money amplifier for applications that require high quality audio reproduction that
The AMH series power amplifiers give the audio contractor a reliable amplifier for applications that are price sensitive yet still require high quality sound reinforcement.

Features:

  • 3600W Amplifier
  • Mono, Stereo or Bridge Mode operation
  • Class H operation
  • 2 Ohm /4 Ohm or 8 Ohm Operation
  • Balanced XLR input and thru output
  • Limiter
  • High or Low pass filter per channel
  • 2 RU
  • Fan cooled

Specifications

AUSTRALIAN-MONITOR AMH3600

Model AMH2400 AMH3600
Topology Class H Class H
Channels 2 2
Power Output (per channel) Single Channel 2Ω
Single Channel 4Ω
Single Channel 8ΩMono 2Ω (Both Driven) Mono 4Ω (Both Driven) Mono 8Ω (Both Driven) Bridged 4ΩBridged 8Ω
1600W 1000W 570W 1200W 900W 525W 2400W 1850W 2300W 1400W 800W 1800W 1100W 700W 3600W 2200W
Frequency Response 25Hz – 20kHz 25Hz – 20kHz
Signal to Noise Ratio > 100 dBA > 100 dBA
THD+N. 4Ω, 8Ω. 1kHz < 0.06% < 0.06%
Input Connectors 2 Female XLR, 2 Male XLR 2 Female XLR, 2 Male XLR
Output Connectors 4 Binding Post, 2 speakON 4 Binding Post, 2 speakON
AC Input 230Vac, 50-60Hz 230Vac, 50-60Hz
Dimensions (W x D x H) 483mm x 400mm x 88mm (19” x 15.75” x 3.5”) 483mm x 400mm x 88mm (19” x 15.75” x 3.5”)
Shipping Dimensions (W x D x H) 540mm x 532mm x 190mm (21.26” x 20.9” x 7.48”) 540mm x 532mm x 190mm (21.26” x 20.9” x 7.48”)
Net Weight 11.5kg (25.35 lbs) 11.9Kg (26.23 lbs)
Shipping Weight 13.6 kg (29.98 lbs) 13.9Kg (30.64 lbs)
Mounting 2 RU 2 RU
Colour Black Black
