มิกเซอร์ RANE AM2 Automixer

เครื่องผสมสัญญาณเสียงแบบเข้าแร็คได้ RANE AM2 Automixer, 8 XLR Microphone Input, USB Port, Automatic Gain Control, Cascade to AM2 Mixers

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿62,800.00 ฿50,200.00

สอบถามและสั่งซื้อสินค้า

Description

RANE AM2 Automixer

เครื่องผสมสัญญาณเสียงแบบเข้าแร็คได้ RANE AM2 Automixer, 8 XLR Microphone Input, USB Port, Automatic Gain Control, Cascade to AM2 Mixers

The Rane AM 2 Automixer is a versatile, feature packed single-space rack mount mixer with 8 line / microphone switchable XLR inputs, USB I/O and Ethernet connections for RAD and cascading.

The AM 2 is capable of automatically mixing incoming channel levels, making it an ideal solution for commercial audio installations, podcast recording applications and more. Manual mixing is also available, and its USB connections make it a plug-n-play device for both Windows and Mac OS. In addition to all this, the AM 1 features an RAD output for CobraNet support, and a cascade connection for linking additional AM 2 mixers (sold separately).

Features:

  • Gain sharing and automatic mic mixing
  • 8 XLR mic inputs with level controls & signal/OL indicators
  • Manually or automatically mix levels
  • USB audio input (16-Bit. 48kHz)
  • Power, Locate, USB, Fault and RAD status indicators

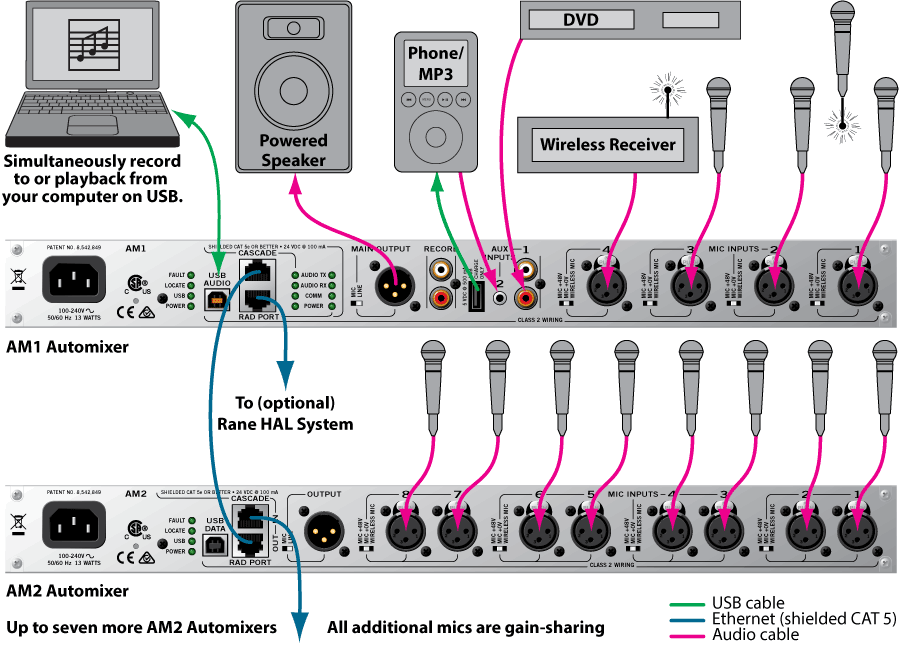

ตัวอย่างการต่อระบบ

am1am2sys1k

Specifications

Total # Of Inputs 8
Mic/Line Inputs 8 – Balanced Mic/Line Switchable 3-pin XLR
In-Line Inputs/Returns No
AUX Sends No
AUX Returns No
Inserts No
2 Trk Master I/O Mic / Line Switchabe XLR
USB
ALT I/O USB Audio
Cascade In and RAD Ethernet Conections
Channel Level Control Sealed Rotary Potentiometers (POTS)
Trim/Gain Control Same as Channel Level
Phantom Power Switchable +48V
Metering Signal and Overload LEDs
Frequency Response XLR Inputs 100Hz to 7kHz, +0/-3dB, -20dBFS, Extended vocal range
Dynamic Range 101dB re +20dBu, 20kHz BW, A-weighted, 0dB gain
Total Harmonic Distortion (THD) Mic in < 0.01%, 22Hz to 20kHz, A-weighted, +4dBu, 0dB gain
Power Supply Universal Line Voltage 100 to 240VAC, 50/60Hz, 13W
Dimensions 11.75 x 19 x 8.5″ (4.4 x 48.3 x 21.6cm)
Weight 5 lb 4 oz (2.4 kg)
